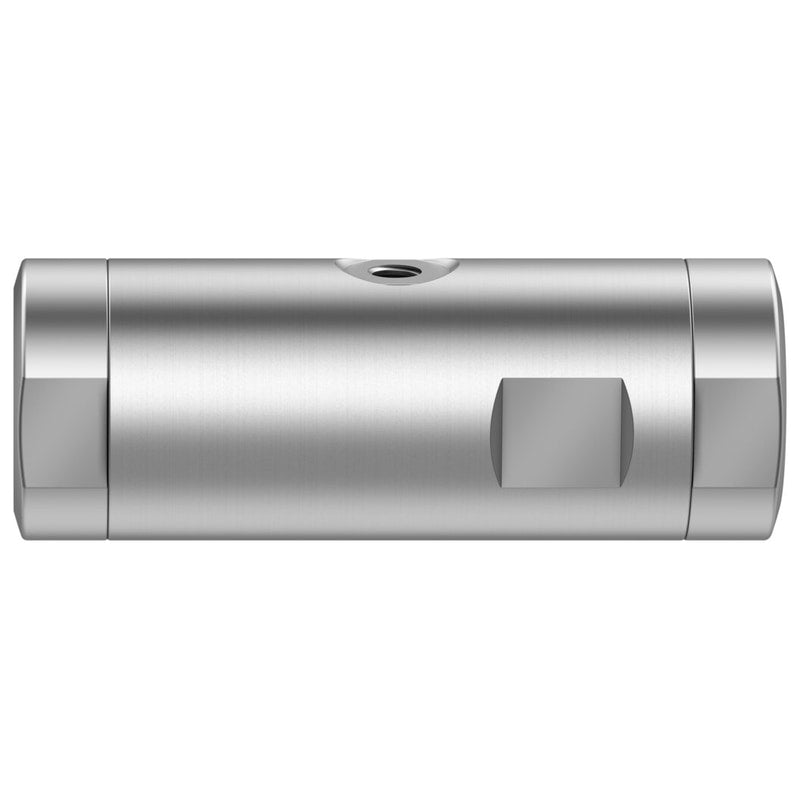

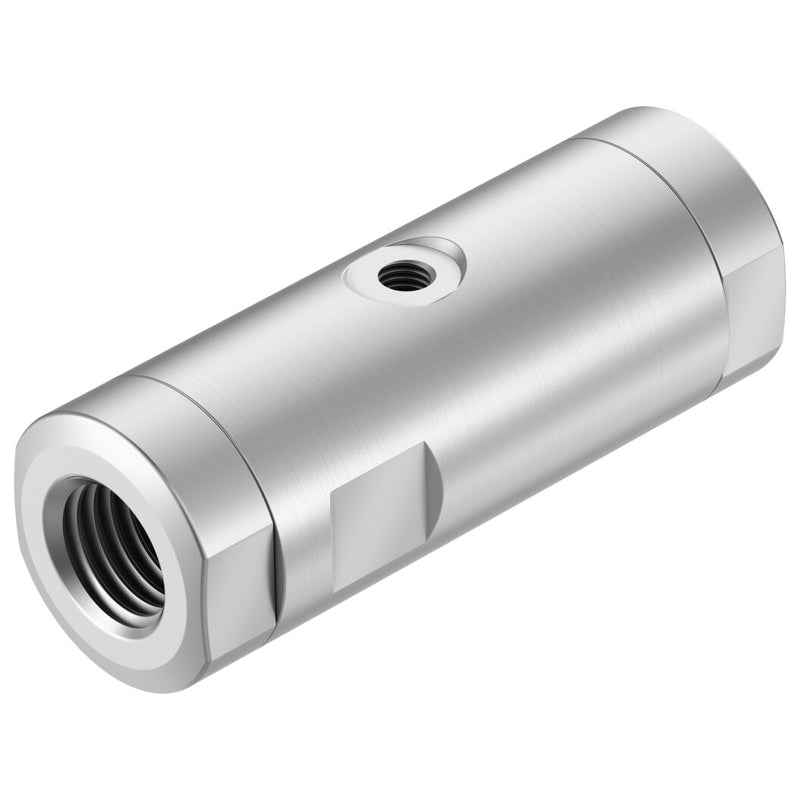

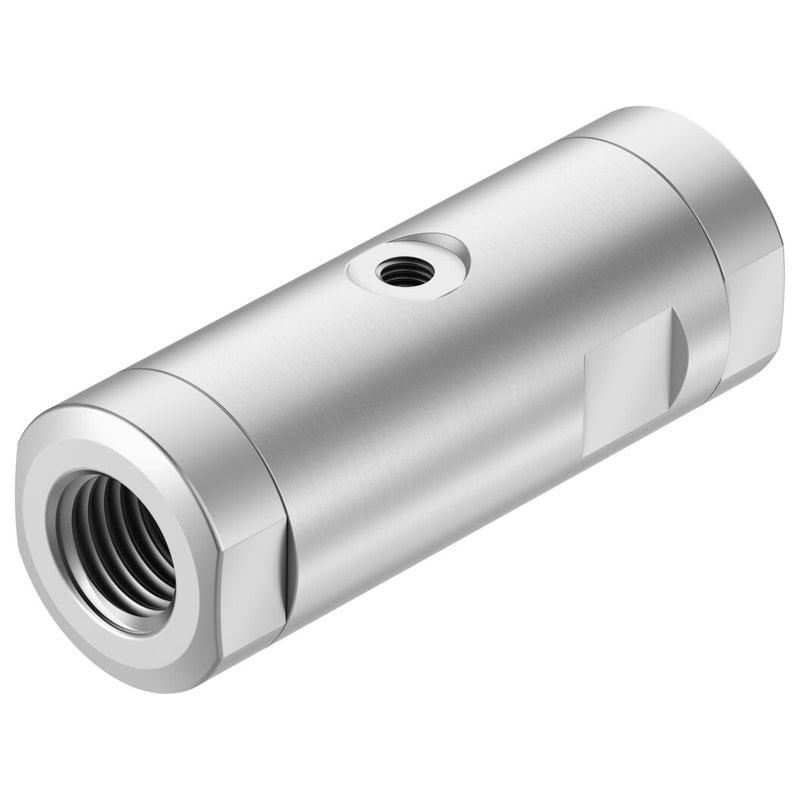

Pinch valve
VZQA-C-M22U-6-TT-V4V4S1-4
2931685
GTIN 4052568290931
Vendor Festo
- Structural design
- Pinch valve, pneumatically operated
- Valve function
- 2/2, open, monostable
- Fitting connection
- 1/4 NPT
- Flow rate Kv
- 0.7 m³/h
- Medium pressure
- 0 bar - 4 bar
Regular price
$328.47
Unit price
VZQA-C-M22U-6-TT-V4V4S1-4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VZQA-C-M22U-6-TT-V4V4S1-4
Regular price
$328.47
Unit price
VZQA-C-M22U-6-TT-V4V4S1-4 is backordered and will ship as soon as it is back in stock.
| Type code | VZQA |
|---|---|
| Design | Pinch valve, pneumatically operated |
| Actuation type | Pneumatic |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of mounting | Line installation |
| Fitting connection | 1/4 NPT |
| Nominal width DN | 6 |
| Valve function | 2/2, open, monostable |
| Flow direction | Reversible |
| Medium pressure | 0 bar ... 4 bar |
| Operating pressure | 1 bar ... 6.5 bar |
| Nominal pressure of fitting PN | 10 |
| Differential pressure | 2.5 bar |
| Burst pressure | 16 bar |
| Overload pressure | 7.8 bar |
| Reset method | Rebound resilience |
| Type of control | Externally controlled |
| Auxiliary pilot air port 12 | M5 |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |

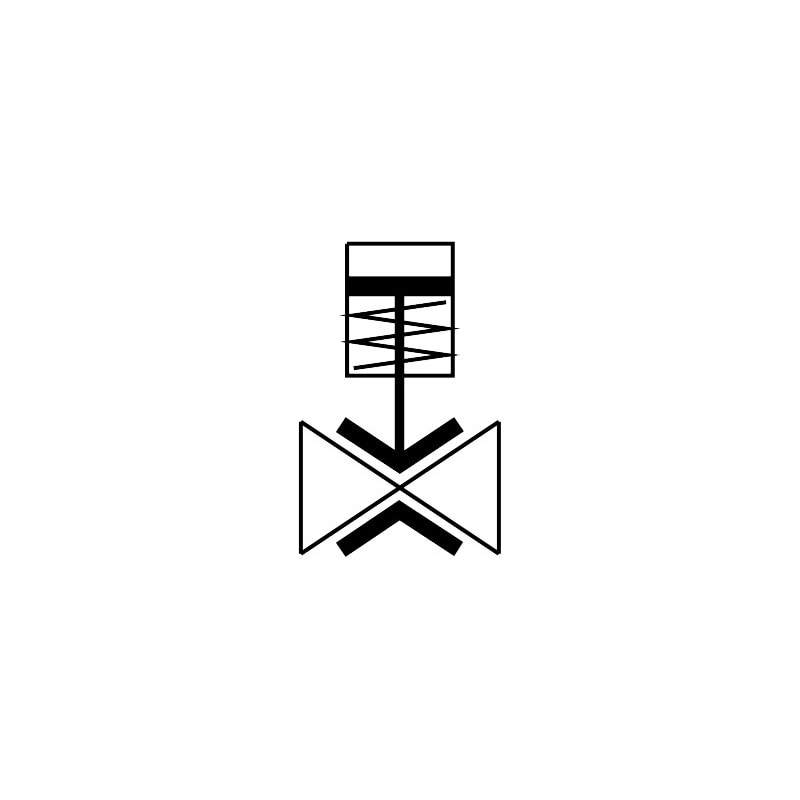

| Symbol | 995245 |
| Medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Max. viscosity | 4000 mm²/s |
| Ambient temperature | -5 °C ... 60 °C |
| Storage temperature | 0 °C ... 25 °C |
| Flow rate Kv | 0.7 m³/h |
| On switching time | 125 ms |
| Switching time off | 125 ms |
| Note on materials | Contains paint-wetting impairment substancesRoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material number of housing | 1.4435 |
| Housing cover material | High-alloy stainless steel |
| Material no. housing cover | 1.4435 |
| Seals material | FPM |
| Shut-off element material | VMQ (silicone) |
| Product weight | 157 g |
| For use in the food industry | See declaration of conformity |
| Material of bowl | PA6 |
