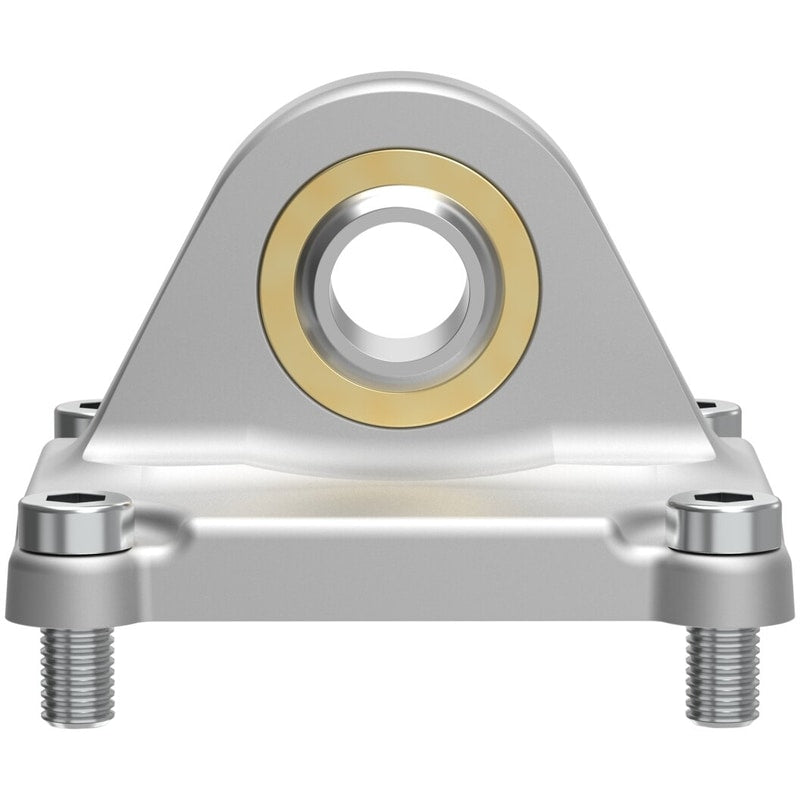

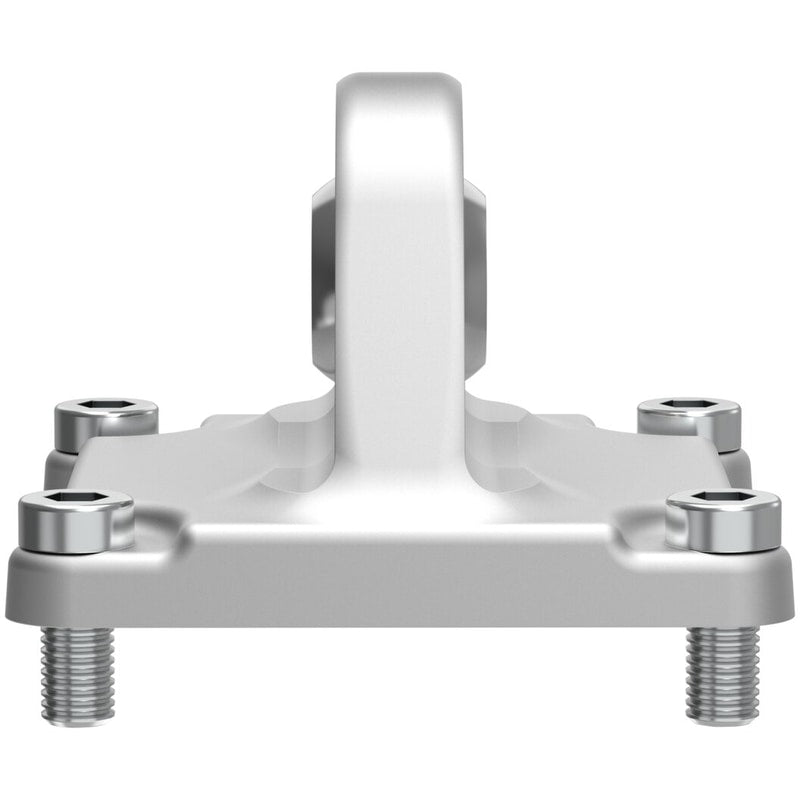

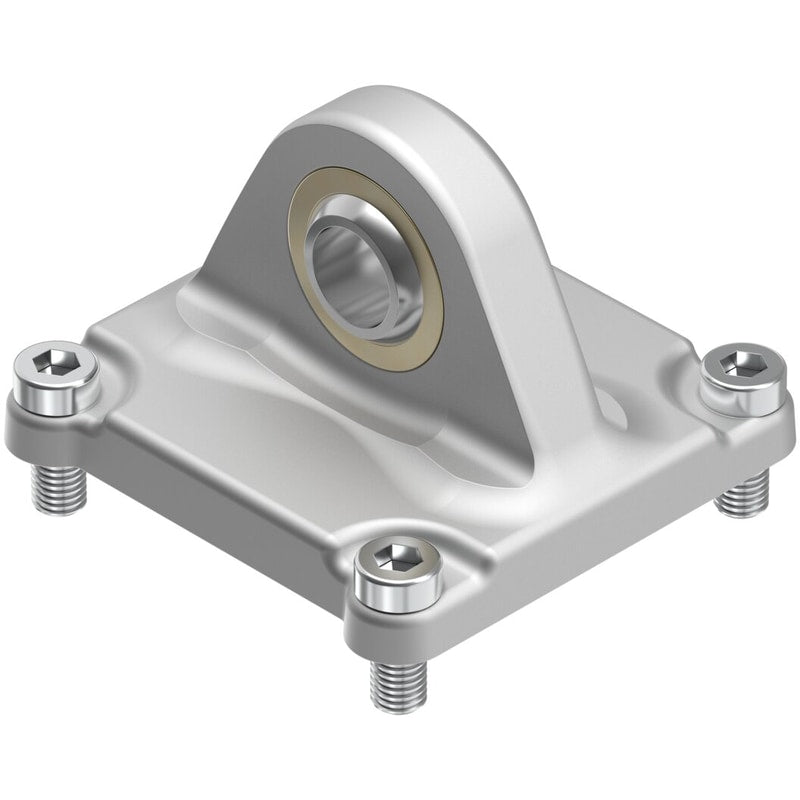

Clevis flange
SNCS-100-R3
2895925
GTIN 4052568267704
Vendor Festo
Regular price
$368.58
Unit price
SNCS-100-R3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SNCS-100-R3
Regular price
$368.58
Unit price
SNCS-100-R3 is backordered and will ship as soon as it is back in stock.
swivel flange SNCS-100-R3 Size=100, Based on the standard=ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290), Variants=Excellent corrosion protection, Corrosion resistance classification CRC=3 - High corrosion stress, Ambient temperature=-40 - 150 °C
| Size | 100 |
|---|---|
| Based on the standard | ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290) |
| Variants | Excellent corrosion protection |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 684 g |
| Materials note | Conforms to RoHS |
| Material mounting | Wrought Aluminium alloyWith protective coating |
| Material rod end bearing | PTFEStainless steel |
| Material screws | High alloy steel, non-corrosive |
