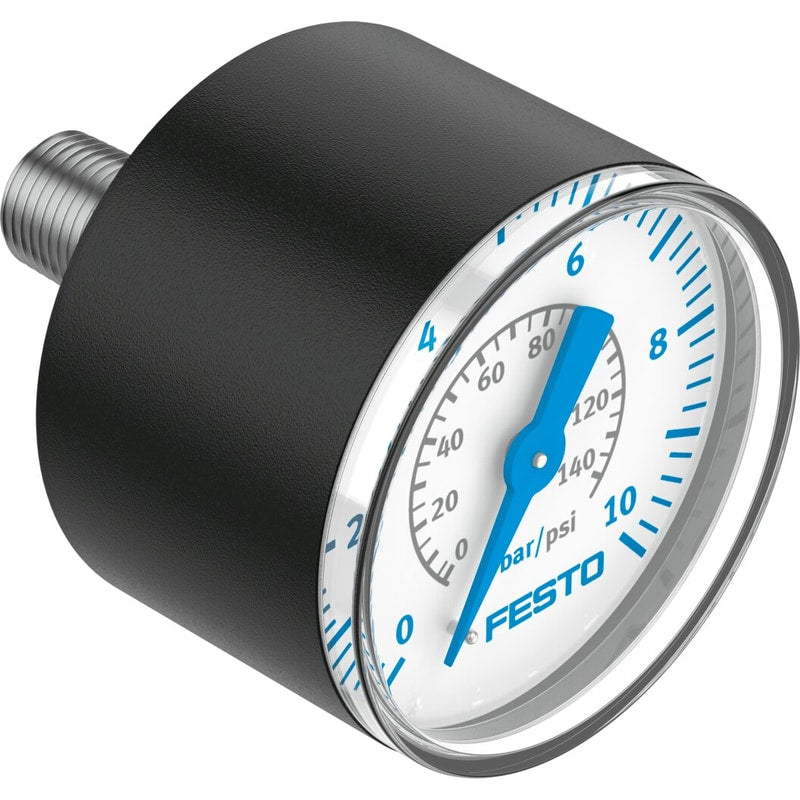

Precision pressure gauge
PAGN-40-10-R18-1.6
2849914
GTIN 4052568267025
Vendor Festo
- Type of mounting
- Line installation
- Display range
- 0 bar - 10 bar
- Pneumatic connection
- R1/8
- Measurement accuracy class
- 1.6
Regular price
$31.61
Unit price
Precision pressure gauge PAGN-40-10-R18-1.6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PAGN-40-10-R18-1.6
Regular price
$31.61
Unit price
Precision pressure gauge PAGN-40-10-R18-1.6 is backordered and will ship as soon as it is back in stock.
| Display range | 0 bar ... 10 bar |
|---|---|
| Type code | PAGN |
| Symbol | 991463 |
| Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 40 |
| Explosion prevention and protection | Zone 2 (ATEX)Zone 21 (ATEX)Observe the information on the certificateZone 1 (ATEX)Zone 22 (ATEX) |
| Design | Bourdon tube pressure gauge |
| Type of mounting | Line installation |
| Operating medium | Inert gasNeutral liquids |
| Operating pressure | 0 bar ... 10 bar |
| Intermittent load factor | 0.66 |
| Measurement accuracy class | 1.6 |
| Degree of protection | IP43 |
| Storage temperature | -40 °C ... 70 °C |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Note on materials | RoHS-compliant |
| Connection position | Centered on rear side |
| Pneumatic connection | R1/8 |
| Materials in contact with the media | Brass |
| Material of screwed trunnion | Brass |
| Housing material | PBT |
| Inspection window material | PS |
| Product weight | 60 g |
| Information on operating and pilot media | No acetyleneNo oxygen |
