EADB-V2-40-S301-400
2828837
Vendor Festo
Regular price
$450.26
Unit price
EADB-V2-40-S301-400 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EADB-V2-40-S301-400
Regular price
$450.26
Unit price
EADB-V2-40-S301-400 is backordered and will ship as soon as it is back in stock.

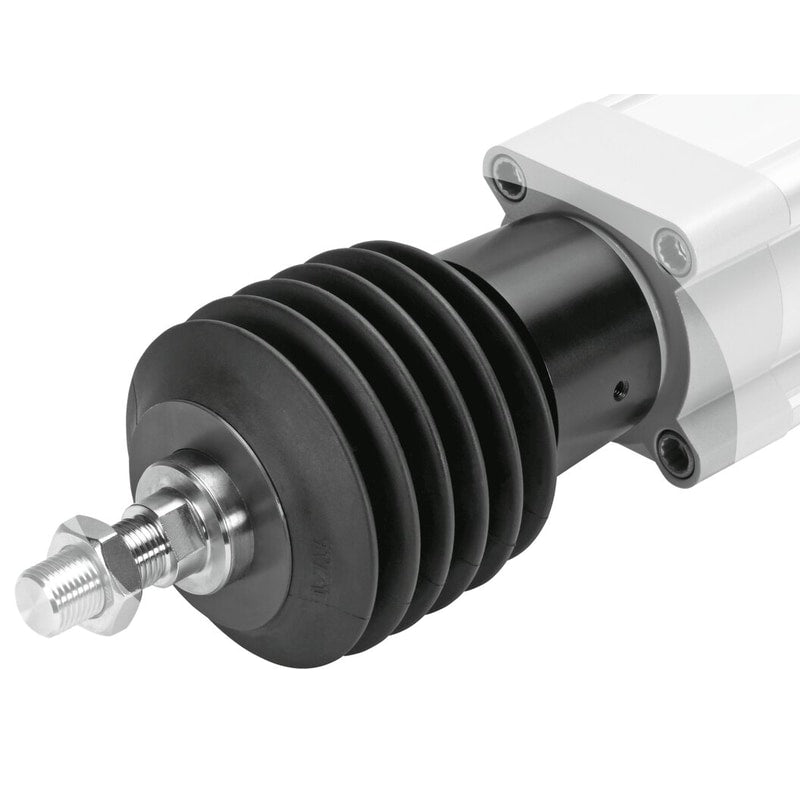

bellows kit EADB-V2-40-S301-400 Outside diameter=57 mm, Size=40, Stroke range=301 - 400 mm, Piston rod extension=119 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 40 |
| Stroke range | 301 ... 400 mm |
| Piston rod extension | 119 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP65to IEC 60529 |
| Ambient temperature | '-10 ... 80 °C |
| Moving mass | 137 g |
| Product weight | 201 g |
