Bellows kit
EADB-V2-40-S201-300
2828836
GTIN 4052568266899
Vendor Festo
Regular price
$374.49
Unit price
EADB-V2-40-S201-300 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EADB-V2-40-S201-300
Regular price
$374.49
Unit price
EADB-V2-40-S201-300 is backordered and will ship as soon as it is back in stock.

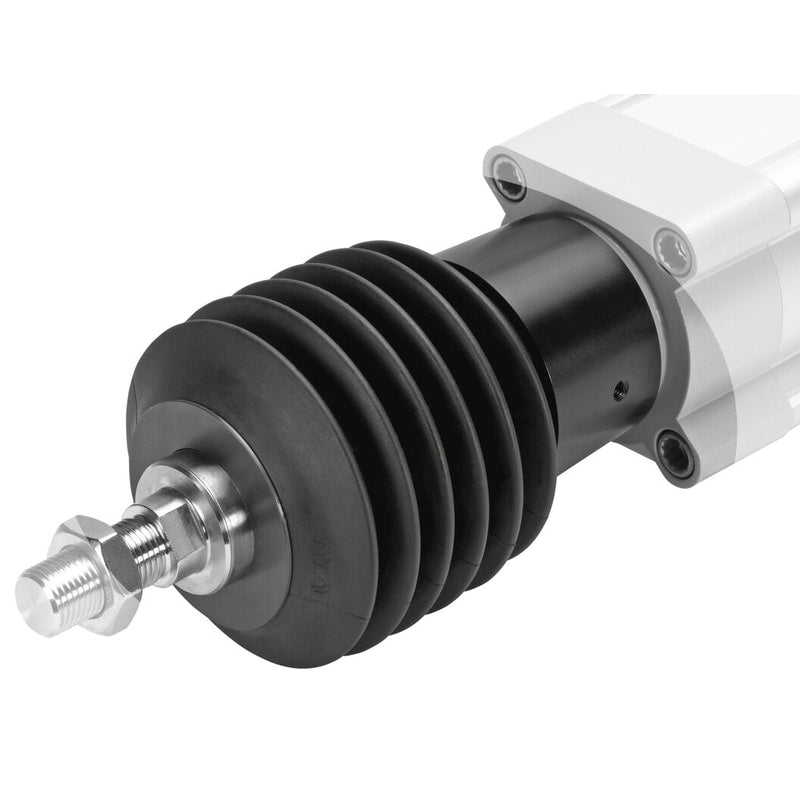

bellows kit EADB-V2-40-S201-300 Outside diameter=57 mm, Size=40, Stroke range=201 - 300 mm, Piston rod extension=90 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 40 |
| Stroke range | 201 ... 300 mm |
| Piston rod extension | 90 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP65to IEC 60529 |
| Ambient temperature | '-10 ... 80 °C |
| Moving mass | 99 g |
| Product weight | 164 g |
