Bellows kit
EADB-V2-32-S101-200
2828830
GTIN 4052568266837
Vendor Festo
Regular price
$229.47
Unit price
EADB-V2-32-S101-200 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EADB-V2-32-S101-200
Regular price
$229.47
Unit price
EADB-V2-32-S101-200 is backordered and will ship as soon as it is back in stock.

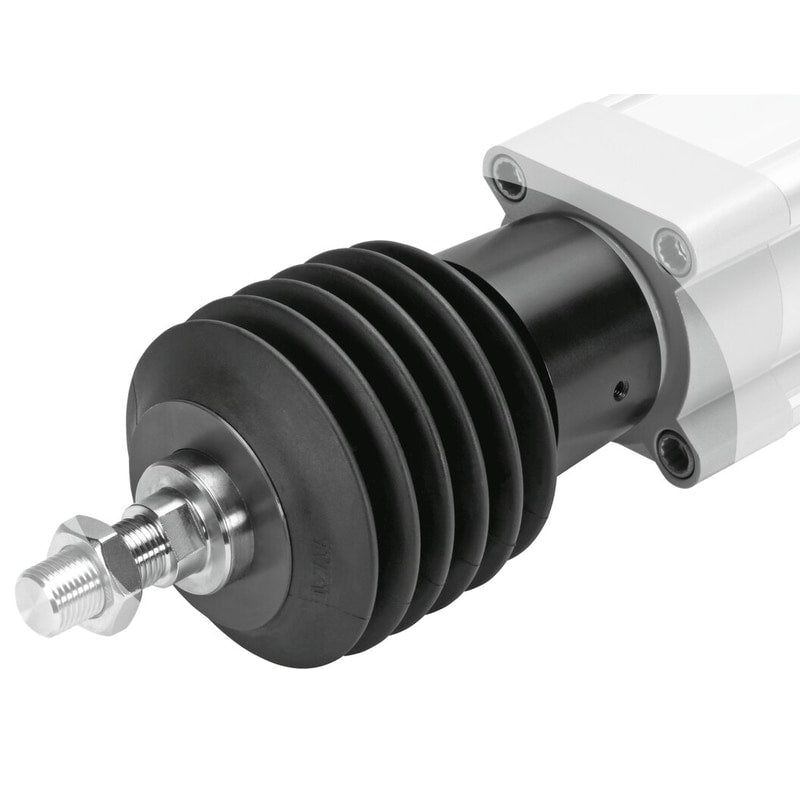

bellows kit EADB-V2-32-S101-200 Outside diameter=57 mm, Size=32, Stroke range=101 - 200 mm, Piston rod extension=81 mm, Design=Round
| Outside diameter | 57 mm |
|---|---|
| Size | 32 |
| Stroke range | 101 ... 200 mm |
| Piston rod extension | 81 mm |
| Design | Round |
| Assembly position | Any |
| Design structure | Bellows kitwith ducted exhaust air |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Resistance to media | DustChippingsOilsGreaseGasolines |
| Protection class | IP65to IEC 60529 |
| Ambient temperature | '-10 ... 80 °C |
| Moving mass | 85 g |
| Product weight | 155 g |
