Parallel kit
EAMM-U-86-D50-60H-102
2803326
GTIN 4052568266714
Vendor Festo
Regular price
$1,147.31
Unit price
EAMM-U-86-D50-60H-102 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAMM-U-86-D50-60H-102
Regular price
$1,147.31
Unit price
EAMM-U-86-D50-60H-102 is backordered and will ship as soon as it is back in stock.

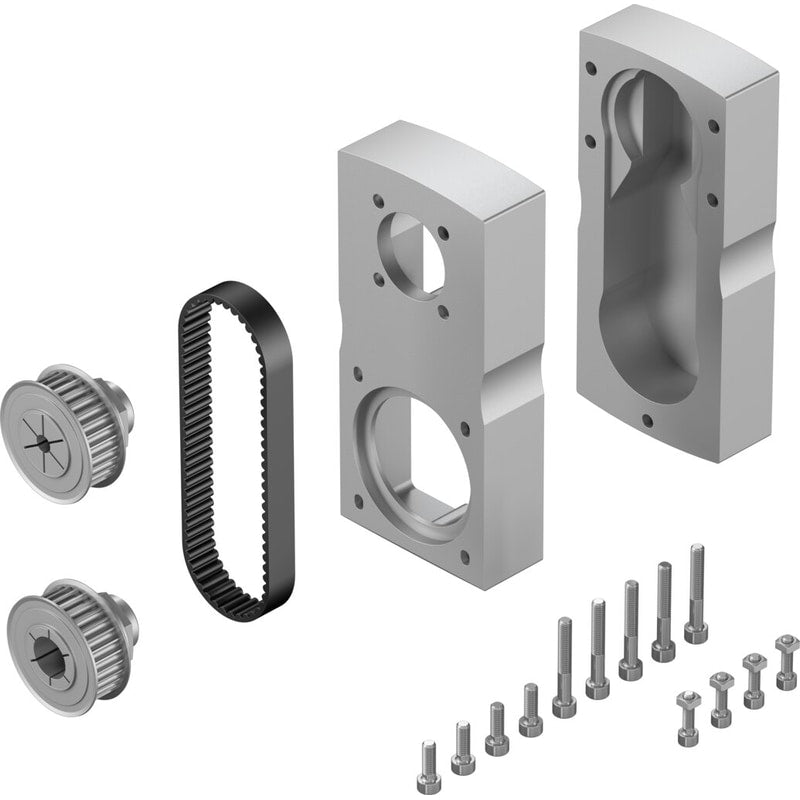

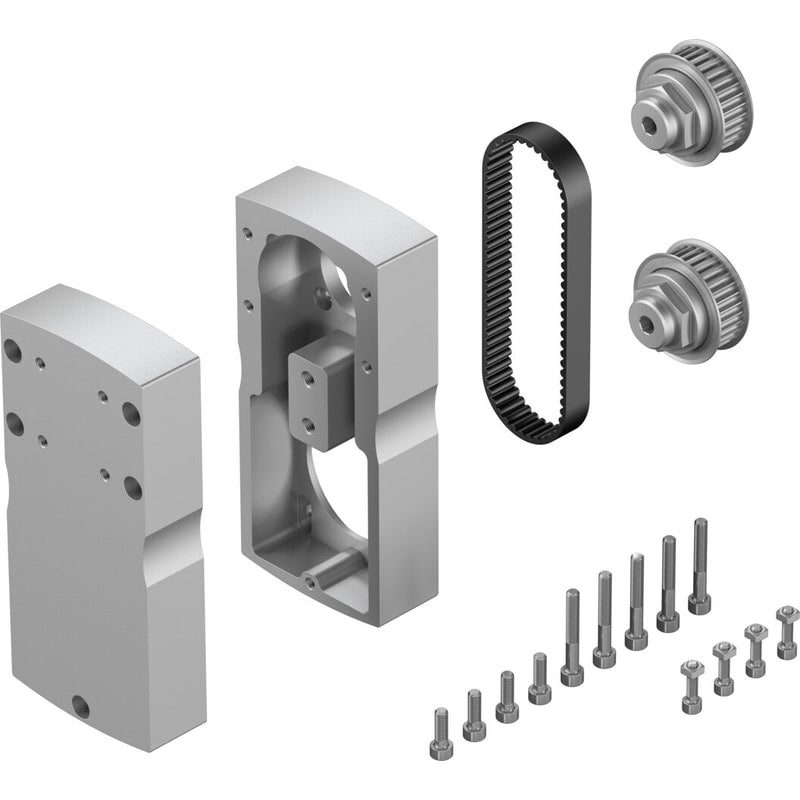

parallel kit EAMM-U-86-D50-60H-102 Suitable for electric drives. Size=86, Assembly position=Any, Gear unit ratio=1:1, Max. speed=5000 1/min, Storage temperature=-25 - 60 °C
| Size | 86 |
|---|---|
| Assembly position | Any |
| Gear unit ratio | 0.0423611111111111 |
| Max. speed | 5,000 1/min |
| Storage temperature | '-25 ... 60 °C |
| Relative air humidity | 0 - 95 % |
| Protection class | IP40 |
| Ambient temperature | '-10 ... 60 °C |
| Mass moment of inertia | 175 kgmm2 |
| No-load driving torque | 0.25 Nm |
| Transferable torque | 9.5 Nm |
| Product weight | 2,500 g |
| Materials note | Conforms to RoHS |
