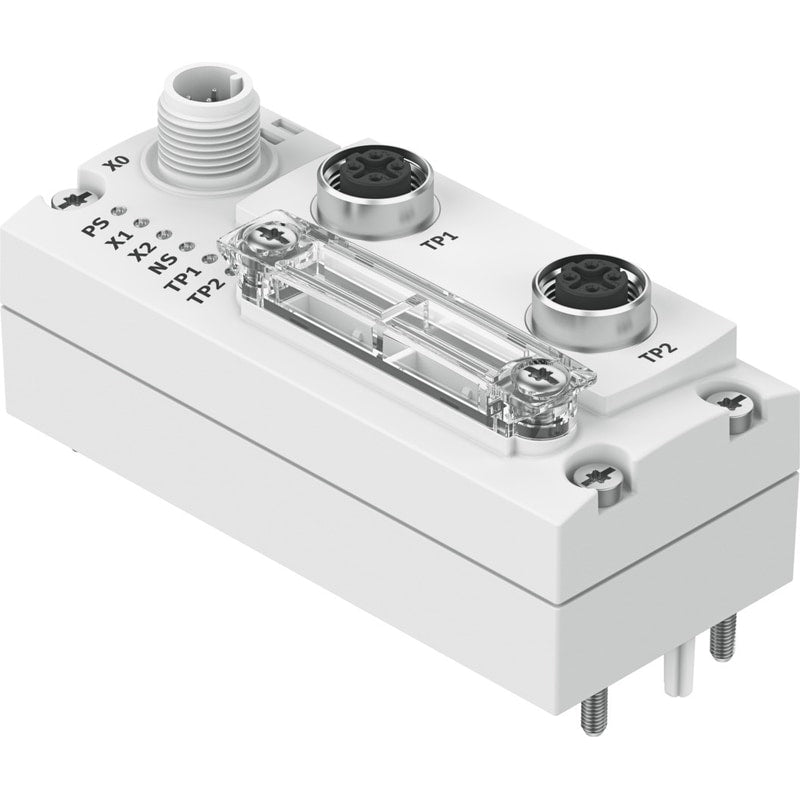

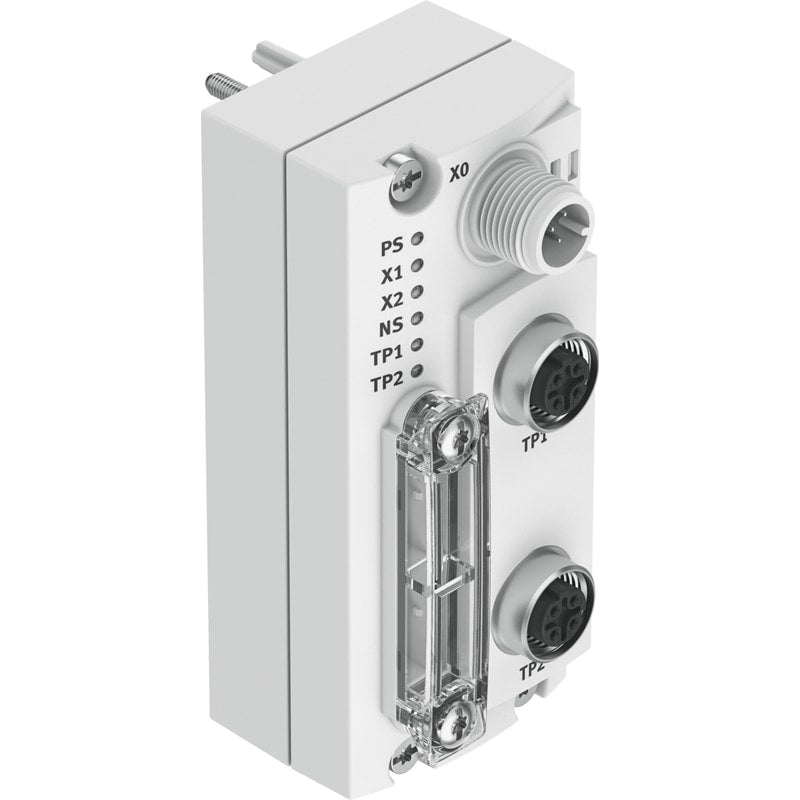

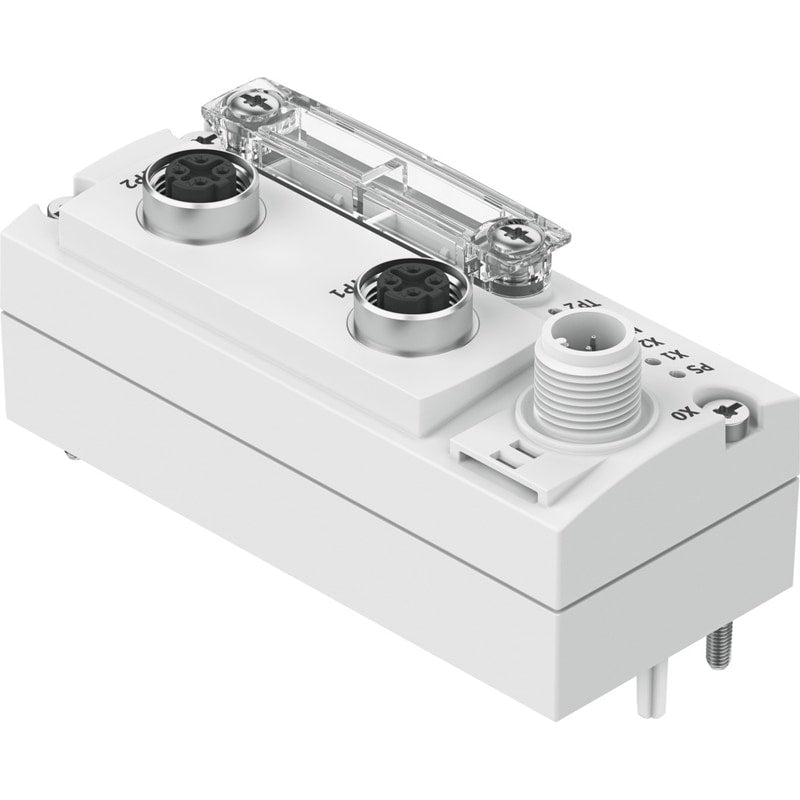

Bus node
CTEU-EP
2798071
GTIN 4052568266523
Vendor Festo
- Protocol
- EtherNet/IP - Modbus® TCP
- DC operating voltage range
- 18 V - 30 V
- Intrinsic current consumption at nominal operating voltage
- Typ. 65 mA
- Degree of protection
- IP65 - IP67
Regular price
$654.26
Unit price
CTEU-EP is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CTEU-EP
Regular price
$654.26
Unit price
CTEU-EP is backordered and will ship as soon as it is back in stock.
bus node CTEU-EP Dimensions W x L x H=40 mm x 91 mm x 50 mm, Fieldbus interface=2x socket, M12x1, 4-pin, D-coded, Diagnosis=(* - Communication error, * - System diagnostics, * - Undervoltage), Configuration support=EDS file, Additional functions=(* AddressConflictDetection (ACD), * - Acyclic data access via "Explicit Message", * - EtherNet/IP Quickconnect, * IP addressing via DHCP, DIL switch, fieldbus or FFT, * Integrated Switch, * - Ringtopologie (DLR), * SNMP, * Start-up parameterisation in normal text via fieldbus, * System status can be represented using process data, * Web servers)
| Dimensions W x L x H | 40 mm x 91 mm x 50 mm |
|---|---|
| Product weight | 98 g |
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Baud rate | 10/100 Mbit/s |
| Protocol | EtherNet/IPModbus TCP |
| Internal cycle time | 1 ms per 1 byte of user data |
| Maximum address volume for inputs | 64 Byte |
| Maximum address volume for outputs | 64 Byte |
| Diagnosis | '- Communication error- System diagnostics- Undervoltage |
| Parameters configuring | '- Diagnostic behaviour- Failsafe and idle reaction |
| Additional functions | AddressConflictDetection (ACD)- Acyclic data access via "Explicit Message"- EtherNet/IP QuickconnectIP addressing via DHCP, DIL switch, fieldbus or FFTIntegrated Switch- Ringtopologie (DLR)SNMPStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataWeb servers |
| Configuration support | EDS file |
| Control elements | DIL switches |
