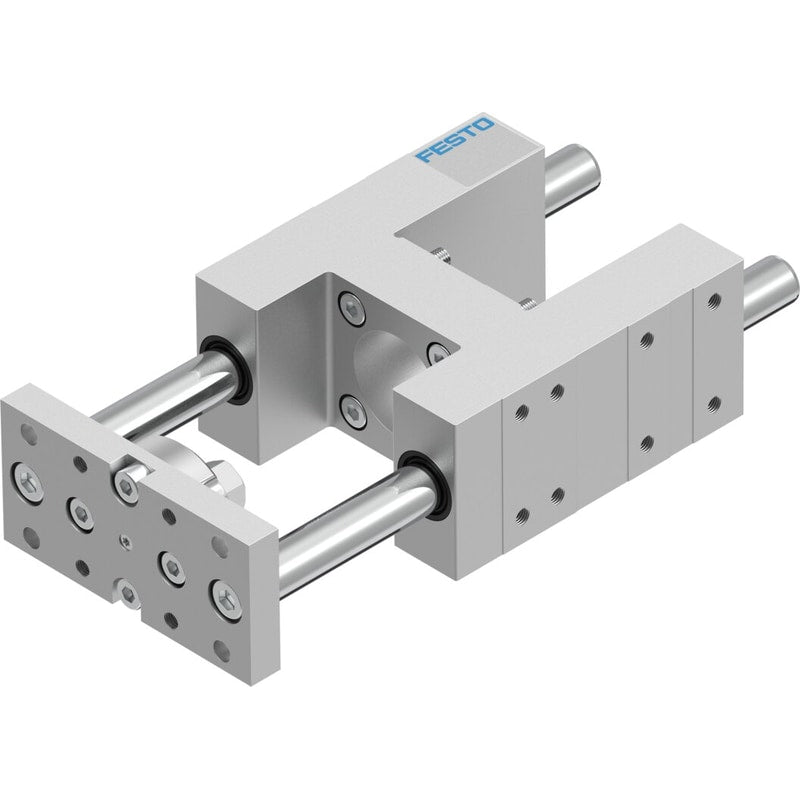

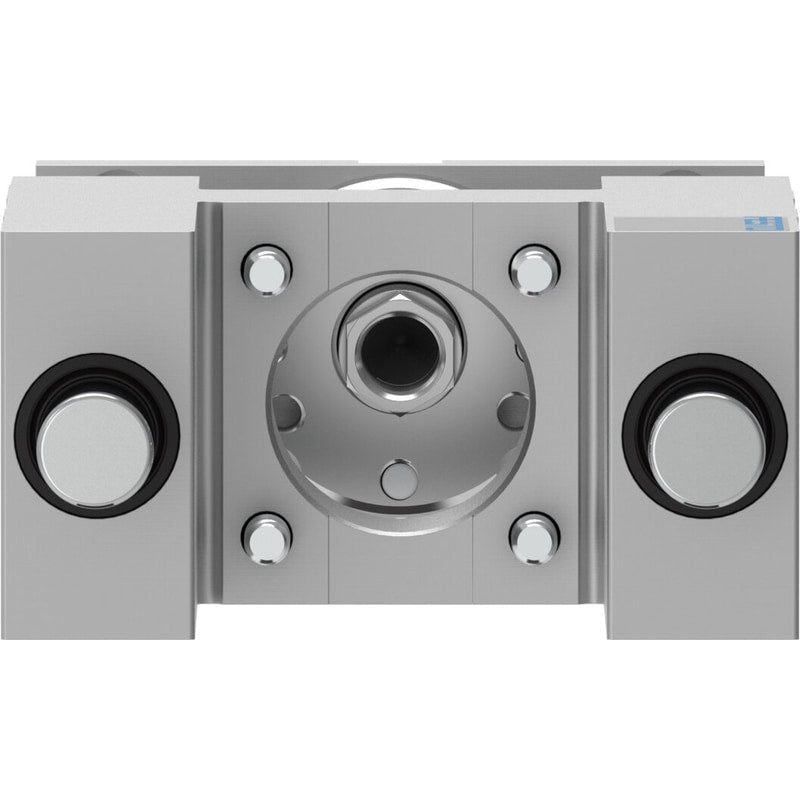

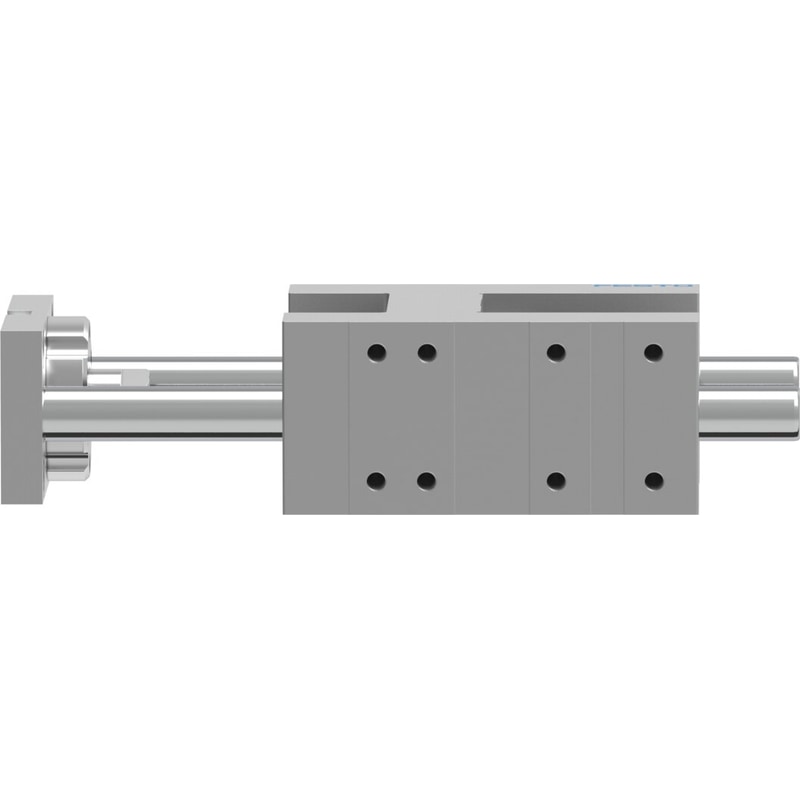

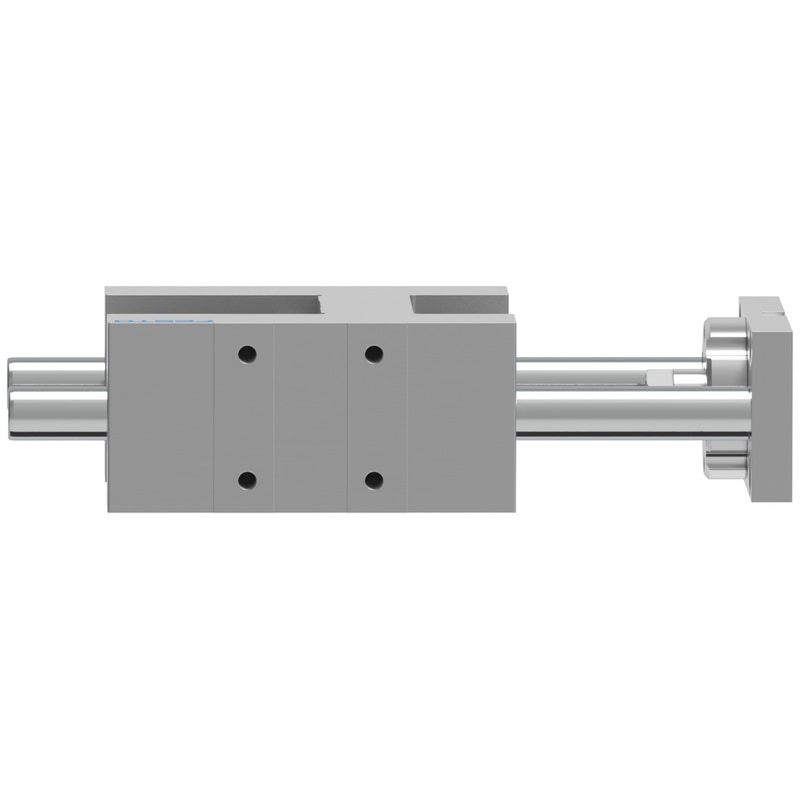

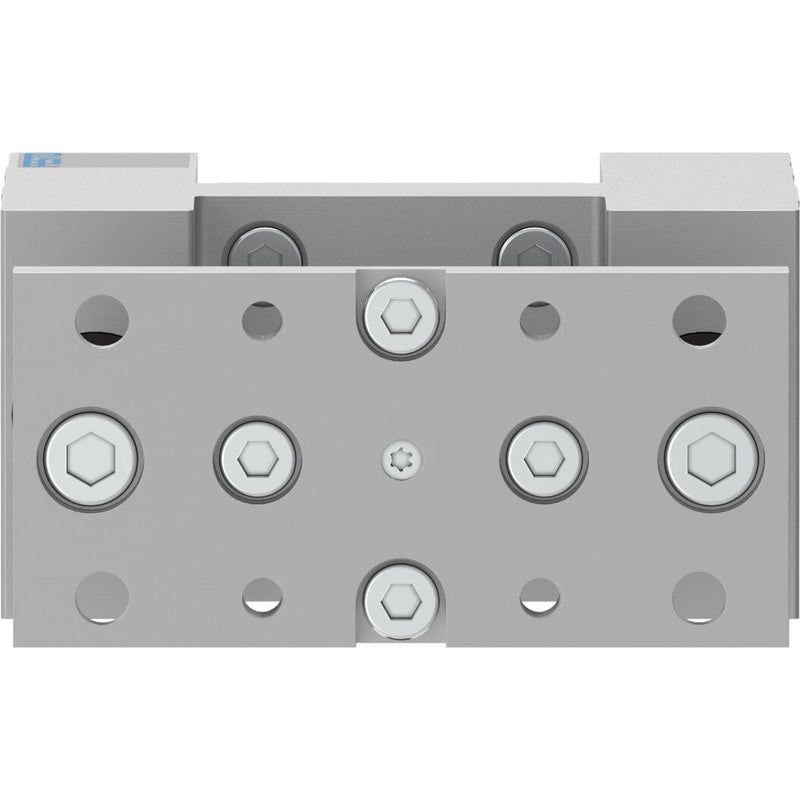

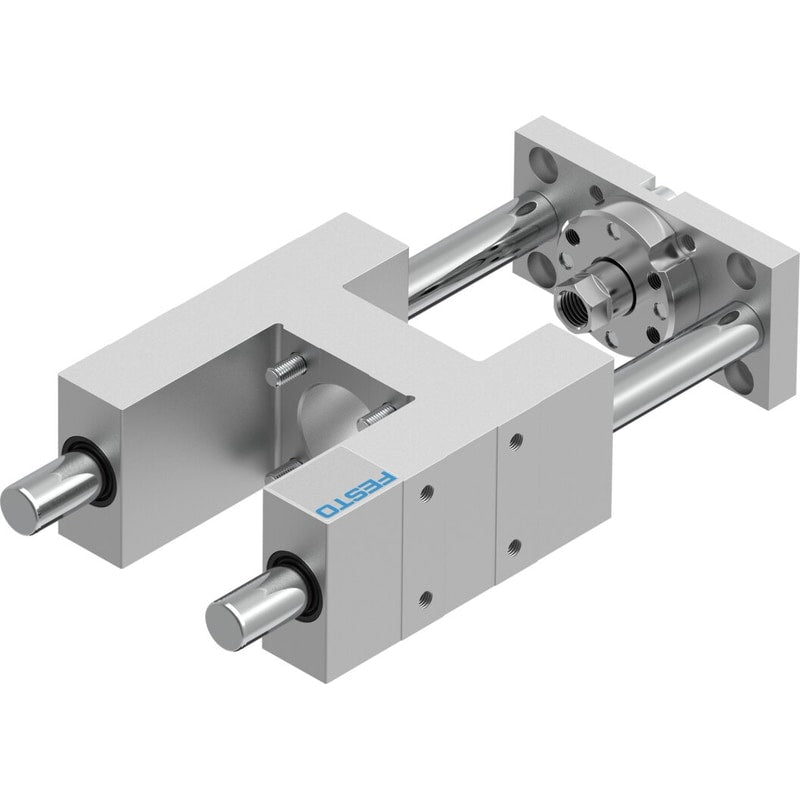

Guide unit
EAGF-V2-KF-50-100
2783639
GTIN 4052568266264
Vendor Festo
Regular price
$1,058.56
Unit price
EAGF-V2-KF-50-100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAGF-V2-KF-50-100
Regular price
$1,058.56
Unit price
EAGF-V2-KF-50-100 is backordered and will ship as soon as it is back in stock.
guide unit EAGF-V2-KF-50-100 For electric cylinder ESBF. Size=50, Stroke=100 mm, Reversing backlash=0 µm, Assembly position=Any, Guide=Recirculating ball bearing guide
| Size | 50 |
|---|---|
| Stroke | 100 mm |
| Reversing backlash | 0 µm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Max. force Fy | 1,260 N |
| Max. force Fy static | 1,600 N |
| Max. force Fz | 1,260 N |
| Max. force Fz static | 1,600 N |
| Max. torque Mx | 65 Nm |
