Guide unit
EAGF-V2-KF-40-320
2783047
GTIN 4052568266240
Vendor Festo
Regular price
$993.63
Unit price
EAGF-V2-KF-40-320 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAGF-V2-KF-40-320
Regular price
$993.63
Unit price
EAGF-V2-KF-40-320 is backordered and will ship as soon as it is back in stock.

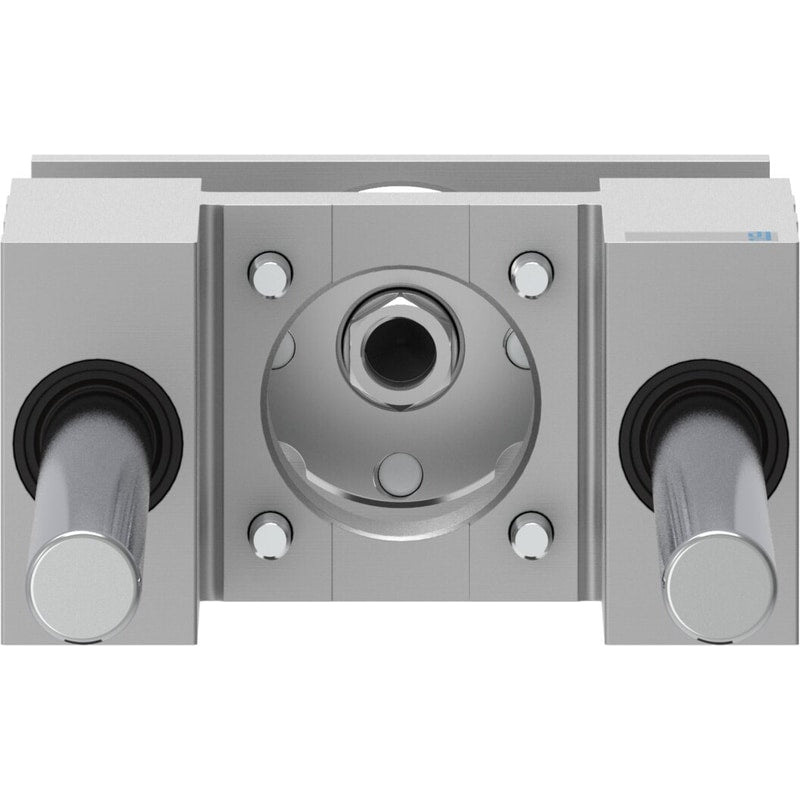

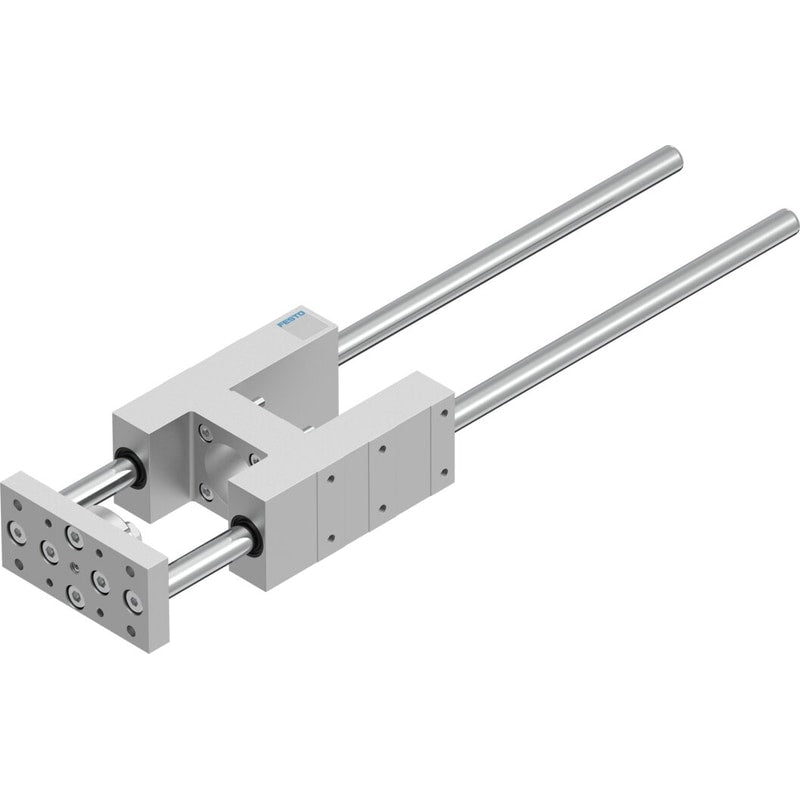

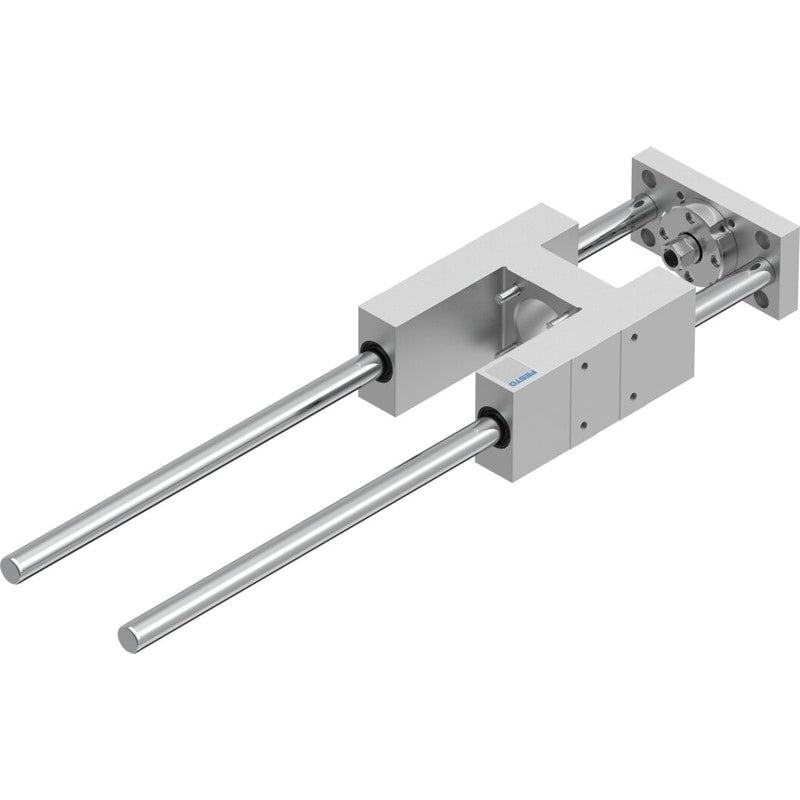

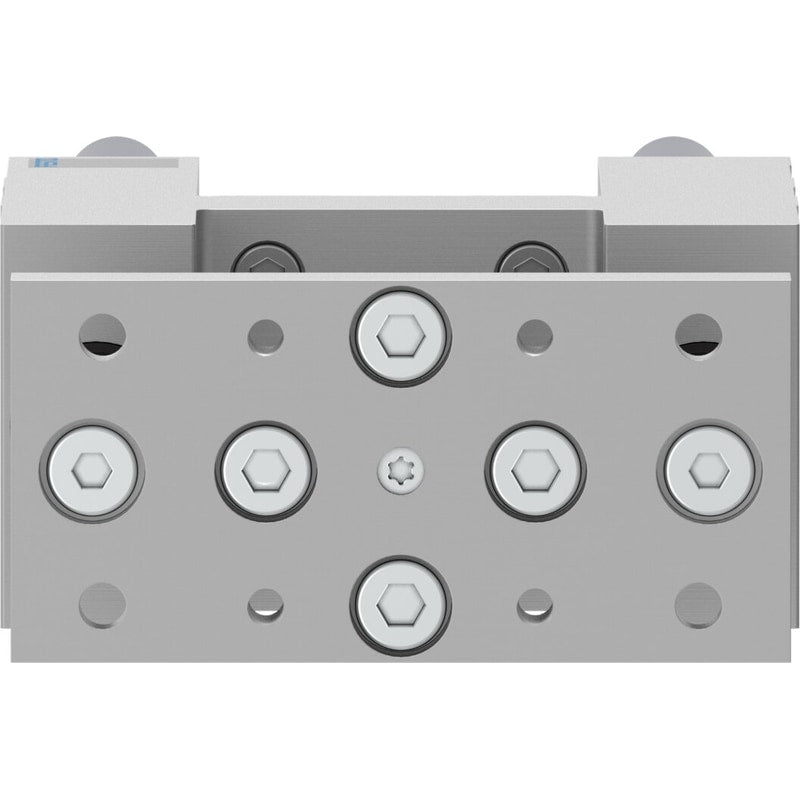

guide unit EAGF-V2-KF-40-320 For electric cylinder ESBF. Size=40, Stroke=320 mm, Reversing backlash=0 µm, Assembly position=Any, Guide=Recirculating ball bearing guide
| Size | 40 |
|---|---|
| Stroke | 320 mm |
| Reversing backlash | 0 µm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Max. force Fy | 1,000 N |
| Max. force Fy static | 1,260 N |
| Max. force Fz | 1,000 N |
| Max. force Fz static | 1,260 N |
| Max. torque Mx | 44 Nm |
