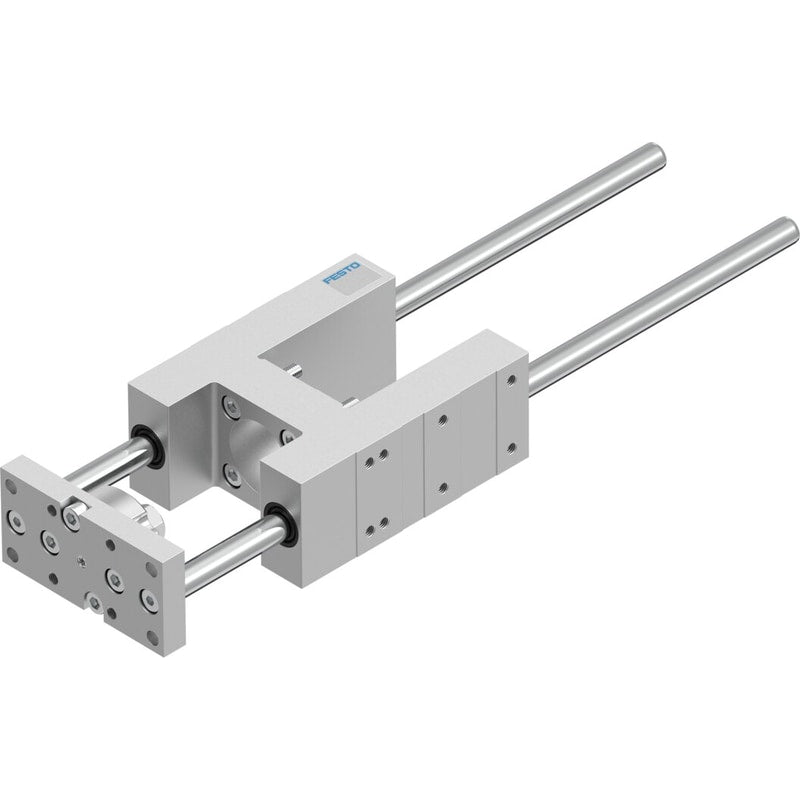

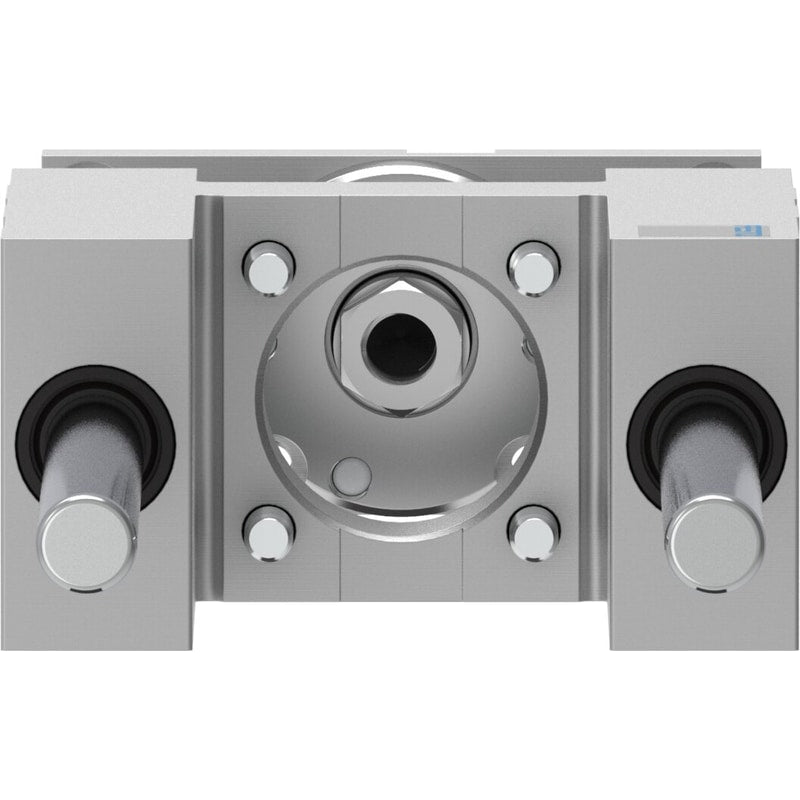

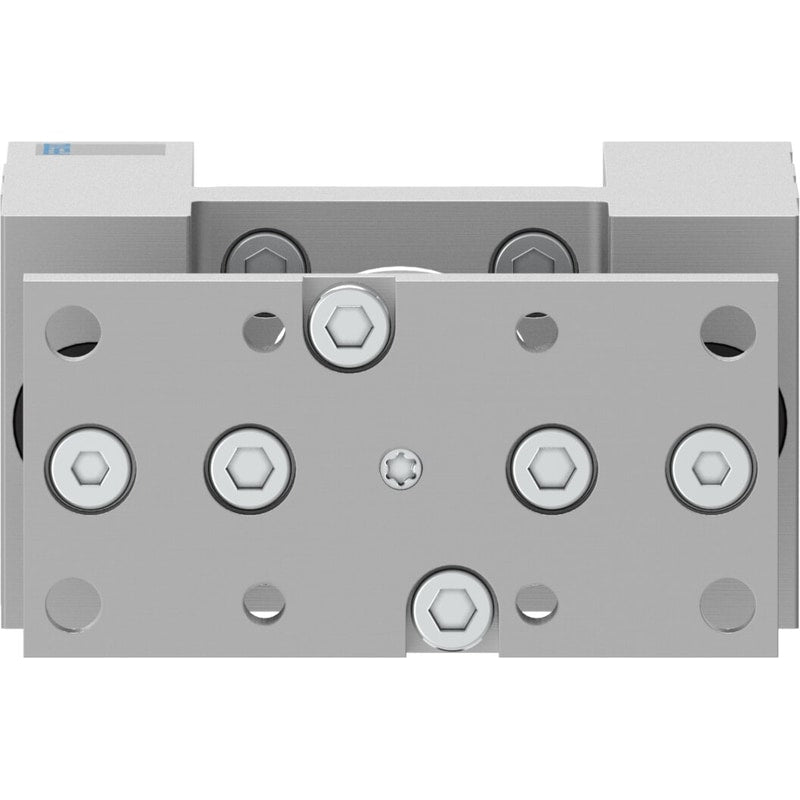

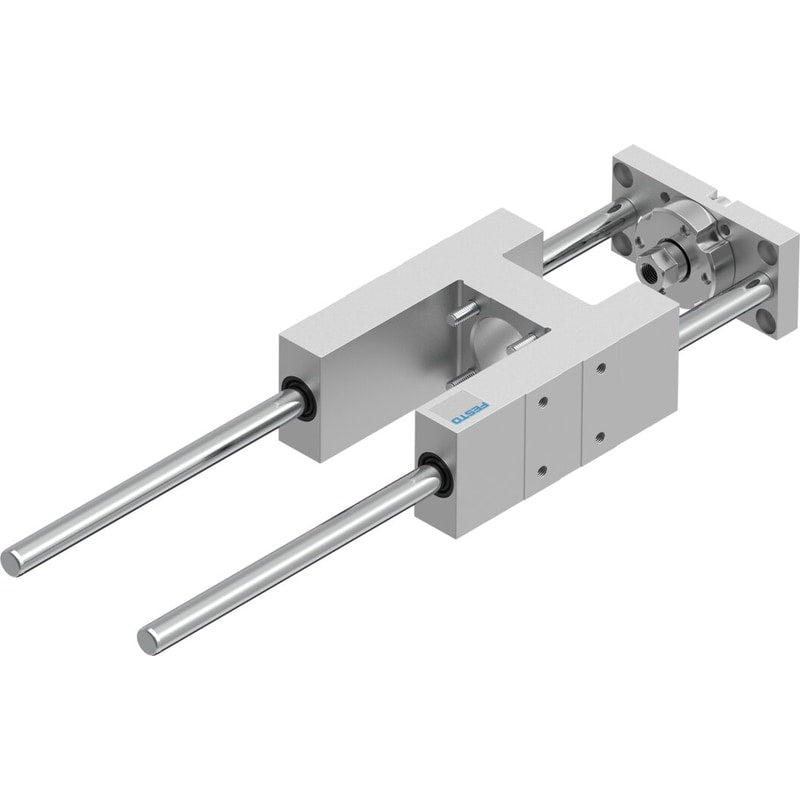

Guide unit
EAGF-V2-KF-32-200
2782818
GTIN 4052568266196
Vendor Festo
Regular price
$740.35
Unit price
EAGF-V2-KF-32-200 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAGF-V2-KF-32-200
Regular price
$740.35
Unit price
EAGF-V2-KF-32-200 is backordered and will ship as soon as it is back in stock.
guide unit EAGF-V2-KF-32-200 For electric cylinder ESBF. Size=32, Stroke=200 mm, Reversing backlash=0 µm, Assembly position=Any, Guide=Recirculating ball bearing guide
| Size | 32 |
|---|---|
| Stroke | 200 mm |
| Reversing backlash | 0 µm |
| Assembly position | Any |
| Guide | Recirculating ball bearing guide |
| Design structure | Guide |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
| Max. force Fy | 750 N |
| Max. force Fy static | 1,020 N |
| Max. force Fz | 750 N |
| Max. force Fz static | 1,020 N |
| Max. torque Mx | 28 Nm |
