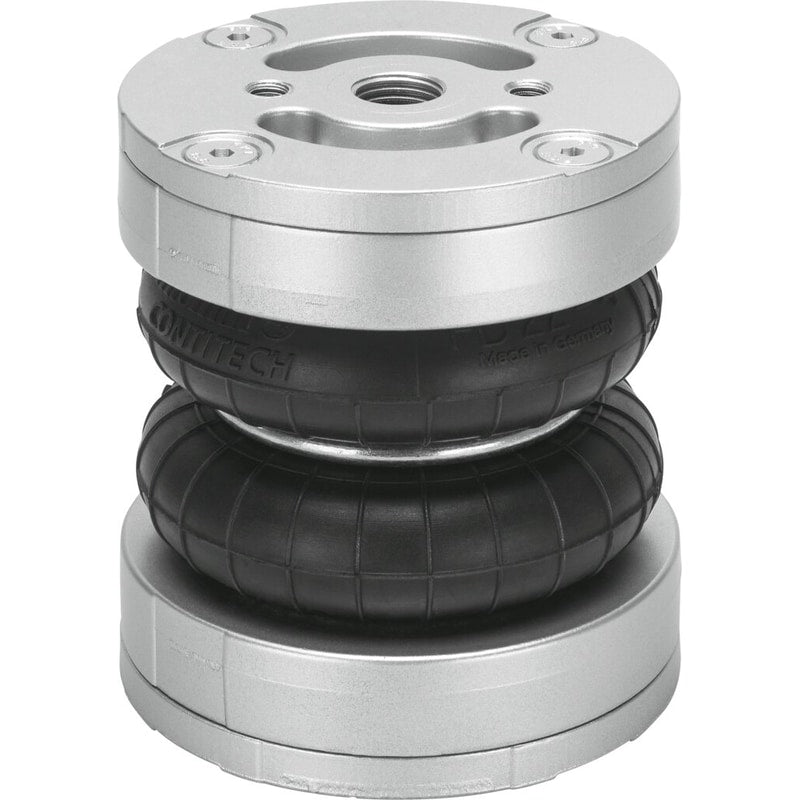

Bellow cylinder
EB-80-45
2748904
GTIN 4052568255084
Vendor Festo
- Size
- 80
- Stroke
- 45 mm
- Pneumatic connection
- G1/4
Regular price
$478.22
Unit price
EB-80-45 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EB-80-45
Regular price
$478.22
Unit price
EB-80-45 is backordered and will ship as soon as it is back in stock.
bellows cylinder EB-80-45 Maintenance-free, no stick/slip effect. Size=80, Required installation diameter=95 mm, Stroke=45 mm, Max height when extended=110 mm, Max. tipping angle=15 deg
| Size | 80 |
|---|---|
| Required installation diameter | 95 mm |
| Stroke | 45 mm |
| Max height when extended | 110 mm |
| Max. tipping angle | 15 deg |
| Max. offset | 10 mm |
| Min. installation height | 65 mm |
| Mode of operation | single-acting |
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Ambient temperature | '-40 ... 70 °C |
