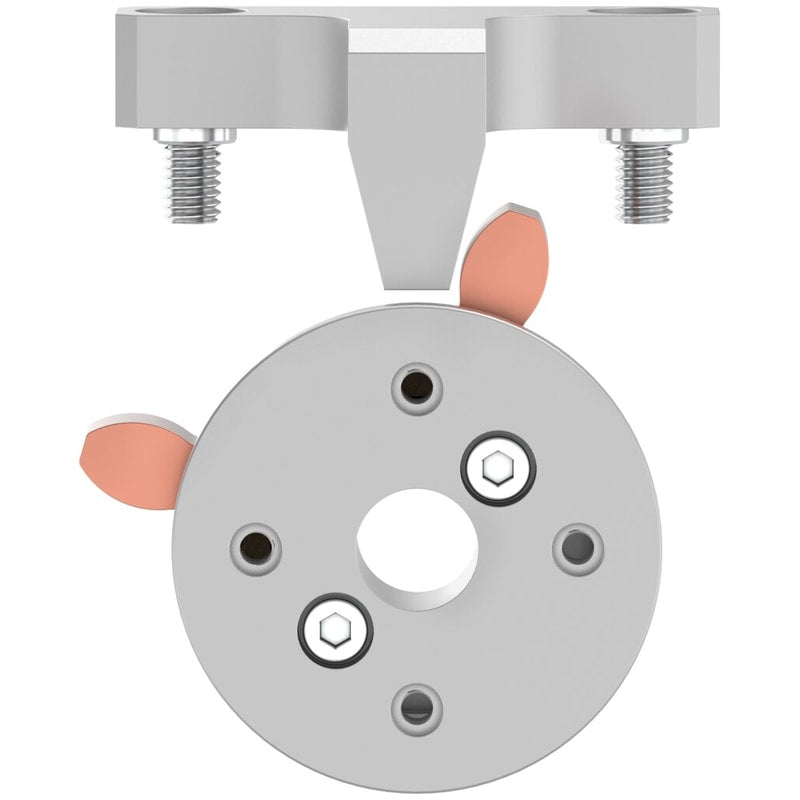

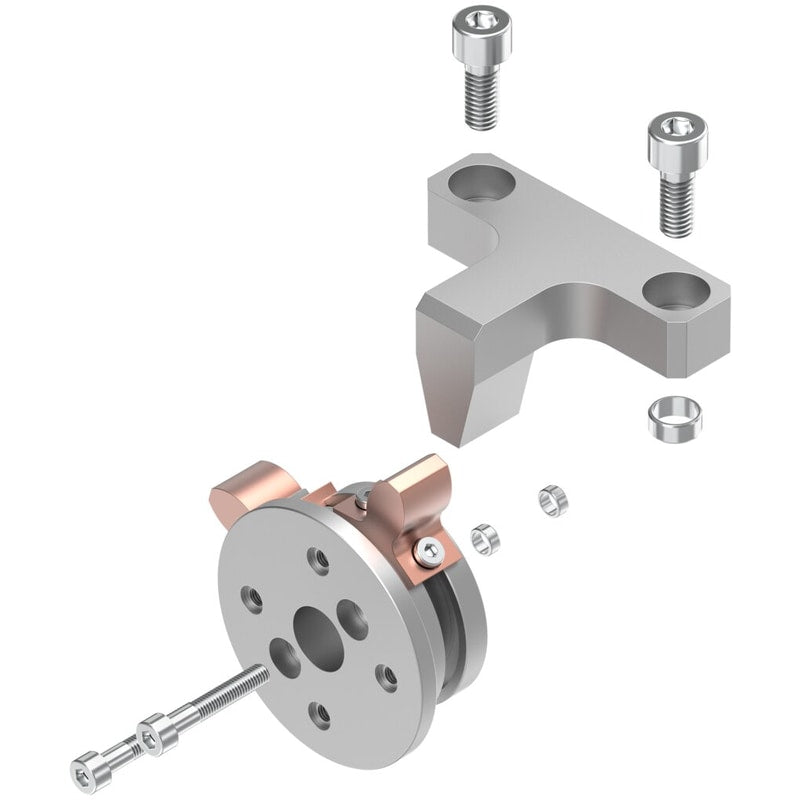

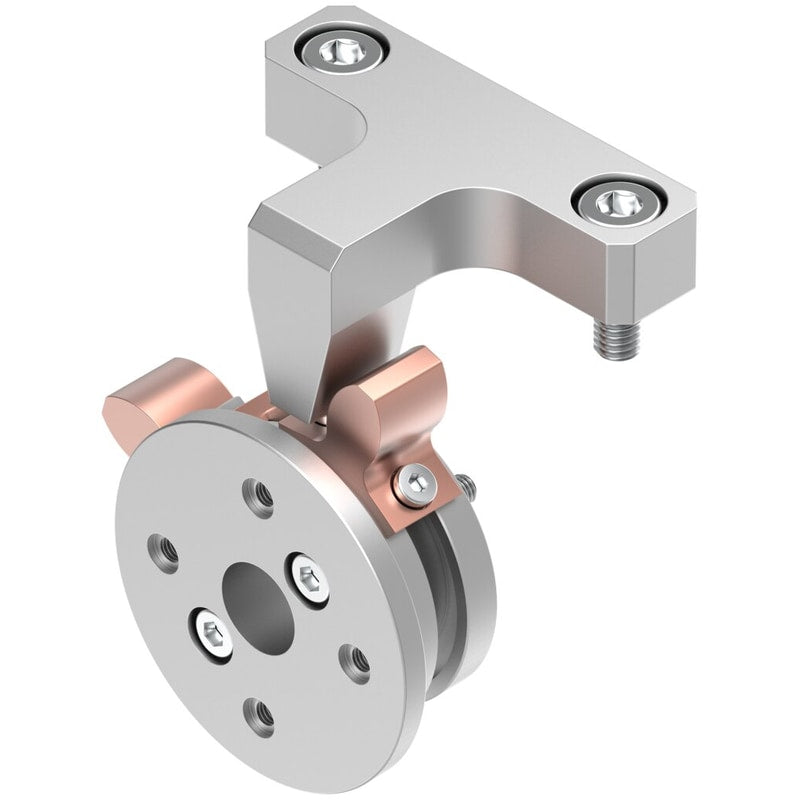

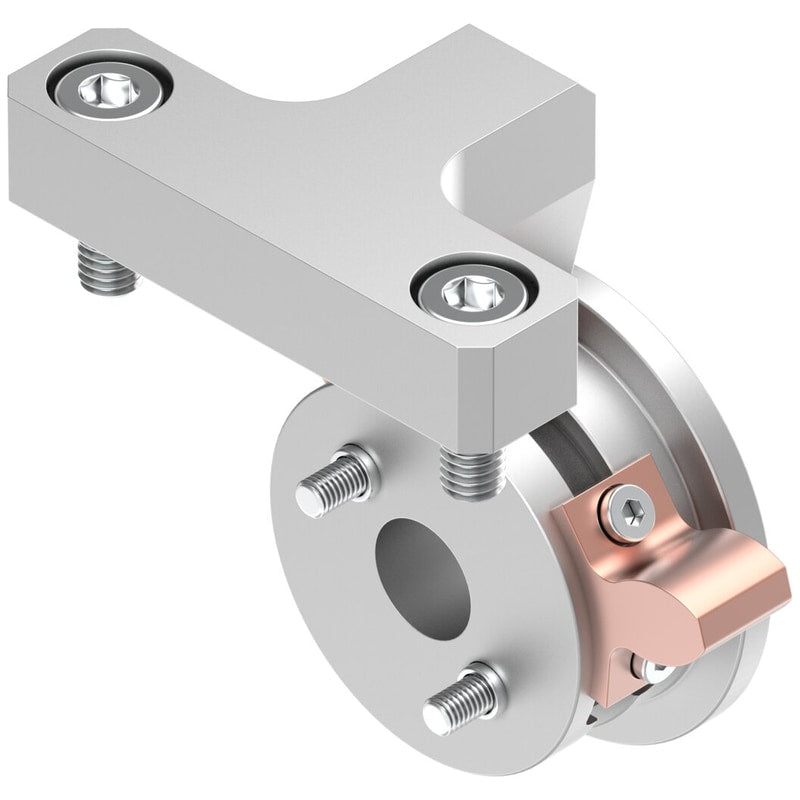

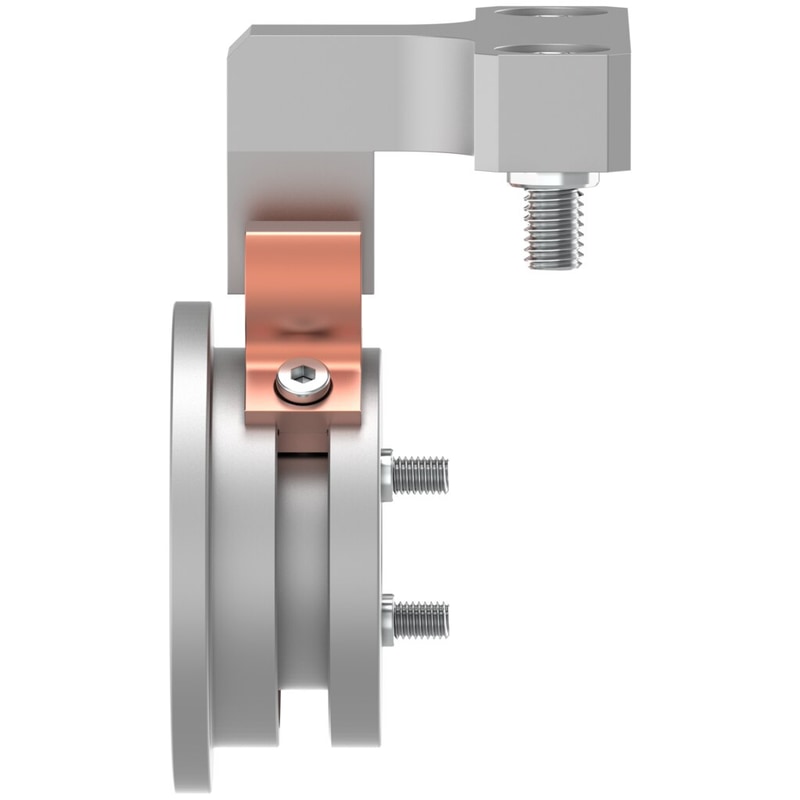

Stop kit
EADP-ES-R3-32
2735411
GTIN 4052568266073
Vendor Festo
Regular price
$541.44
Unit price
EADP-ES-R3-32 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EADP-ES-R3-32
Regular price
$541.44
Unit price
EADP-ES-R3-32 is backordered and will ship as soon as it is back in stock.
stop kit EADP-ES-R3-32 Size=32, Rotation angle adjustment range=0 - 325 deg, Assembly position=Any, Corrosion resistance classification CRC=1 - Low corrosion stress, Storage temperature=-20 - 60 °C
| Size | 32 |
|---|---|
| Rotation angle adjustment range | 0 ... 325 deg |
| Assembly position | Any |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Storage temperature | '-20 ... 60 °C |
| Ambient temperature | 0 ... 50 °C |
| Mass moment of inertia, JO | 1.3 kgcm2 |
| Product weight | 290 g |
| Mounting type | with internal (female) thread |
| Materials note | Conforms to RoHS |
| Material stops | Beryllium bronze, nickel-plated |
| Material flange | Wrought Aluminium alloyAnodised |
| Material bracket | Wrought Aluminium alloyAnodised |
