Rod clevis
SG-M12
2675
GTIN 4052568018160
Vendor Festo
Regular price
$12.51
Unit price
SG-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SG-M12
Regular price
$12.51
Unit price
SG-M12 is backordered and will ship as soon as it is back in stock.

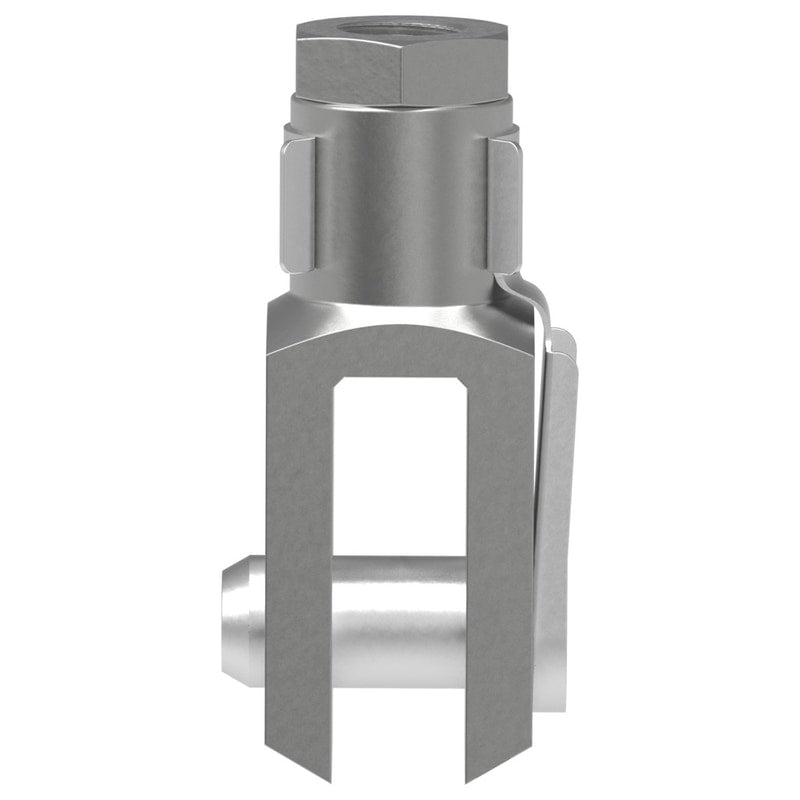

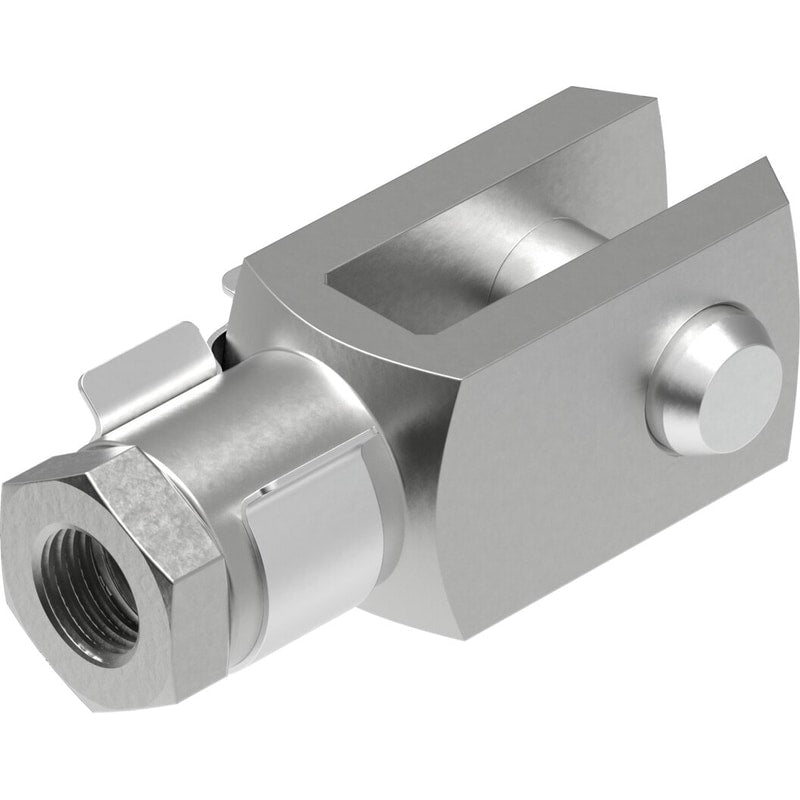

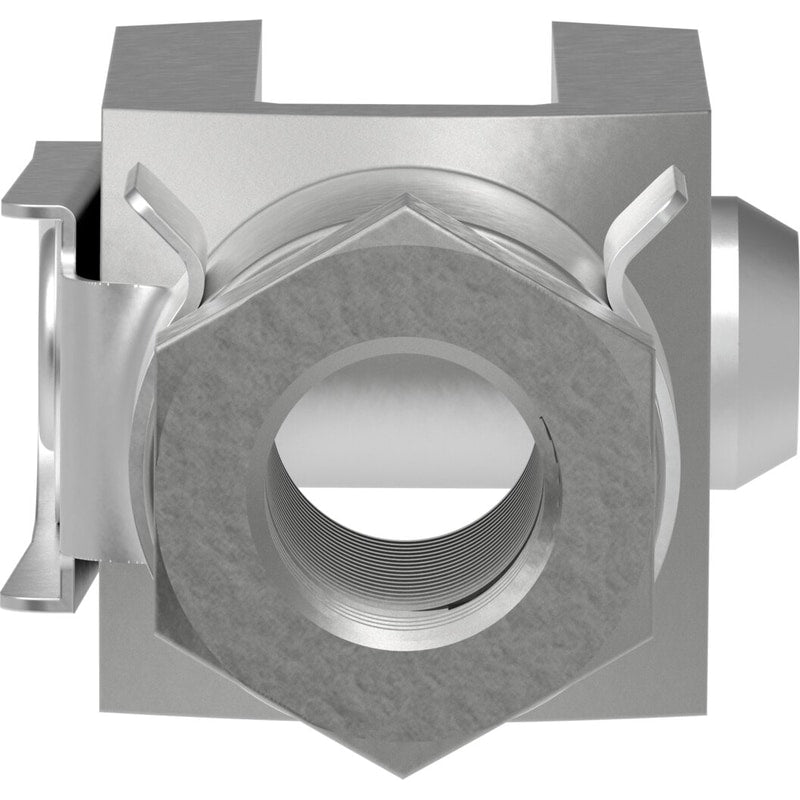

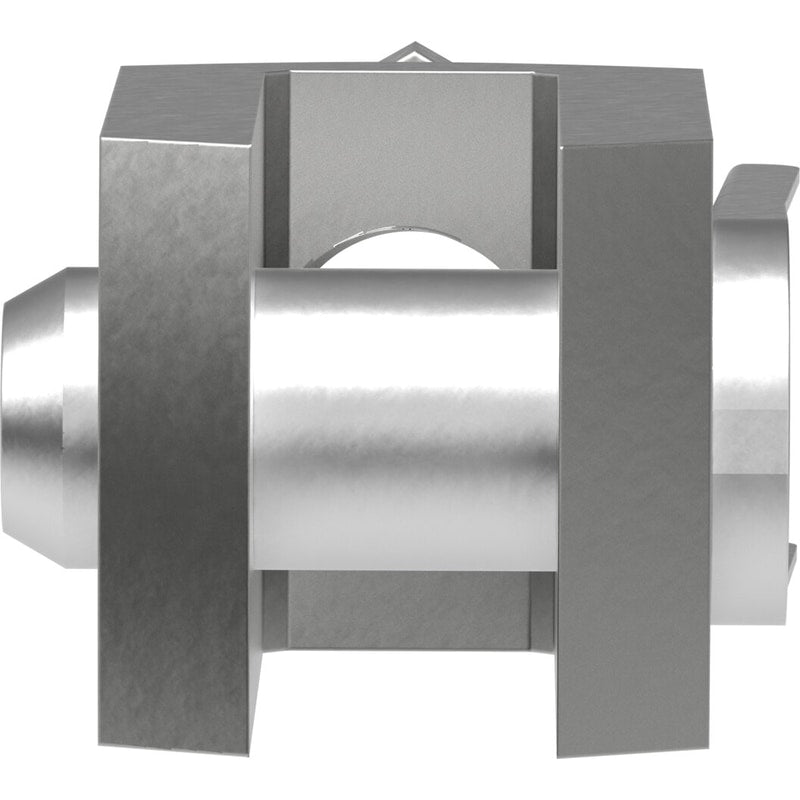

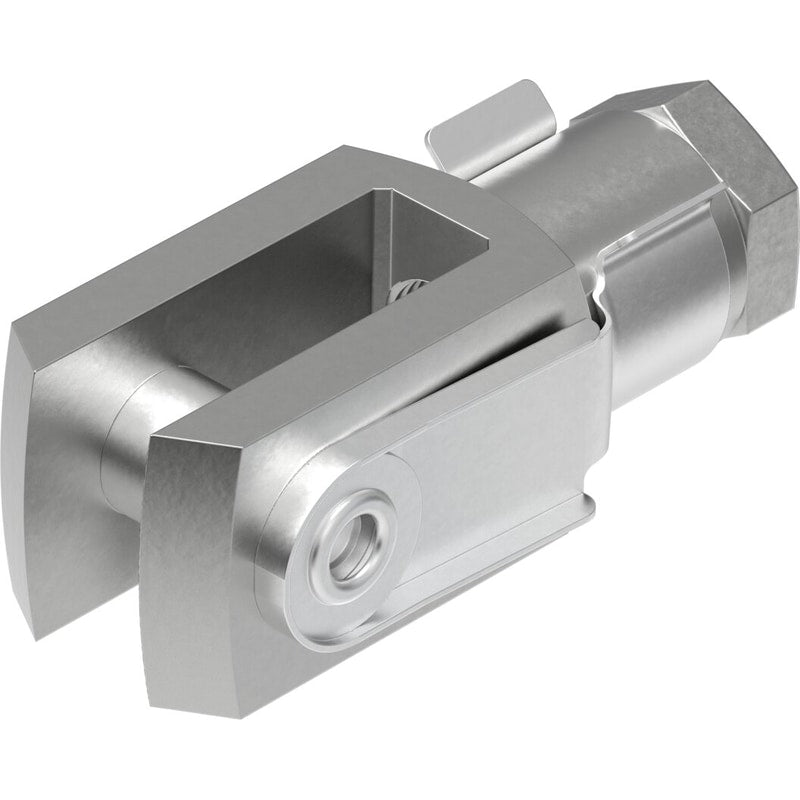

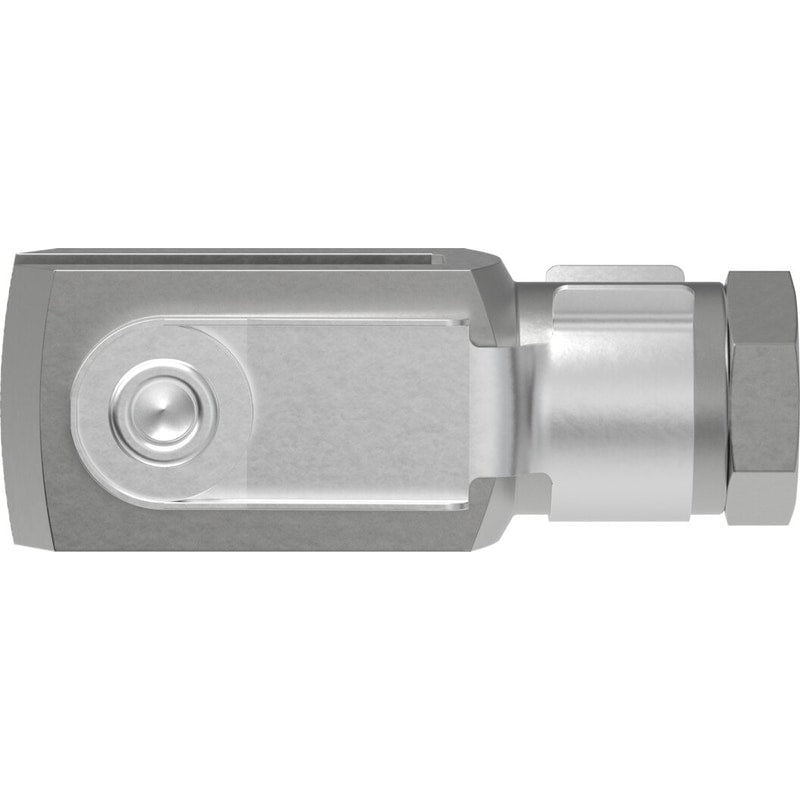

rod clevis SG-M12 With hexagonal nut, for swivelling cylinder mounting (piston rod side) as per DIN ISO 8140. Size=M12, Based on the standard=ISO 8140, Conforms to standard=DIN 71752, Threaded connection=Female thread M12, Corrosion resistance classification CRC=1 - Low corrosion stress
| Size | M12 |
|---|---|
| Based on the standard | ISO 8140 |
| Conforms to standard | DIN 71752 |
| Threaded connection | Female thread M12 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 168 g |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material mounting pin | SteelGalvanised |
| Material clevis | SteelGalvanised |
| Material nut | SteelGalvanised |
