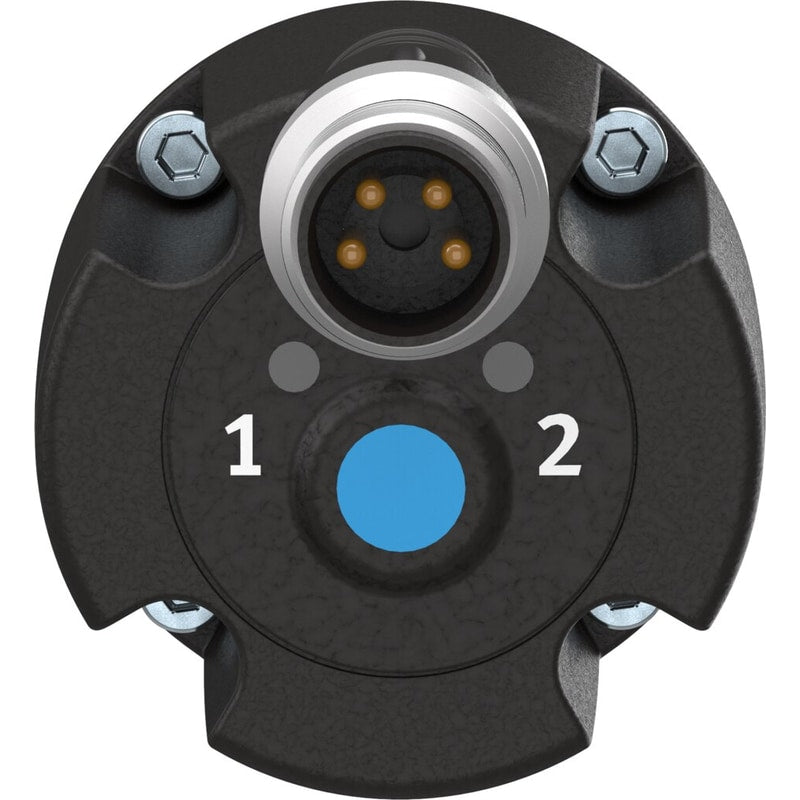

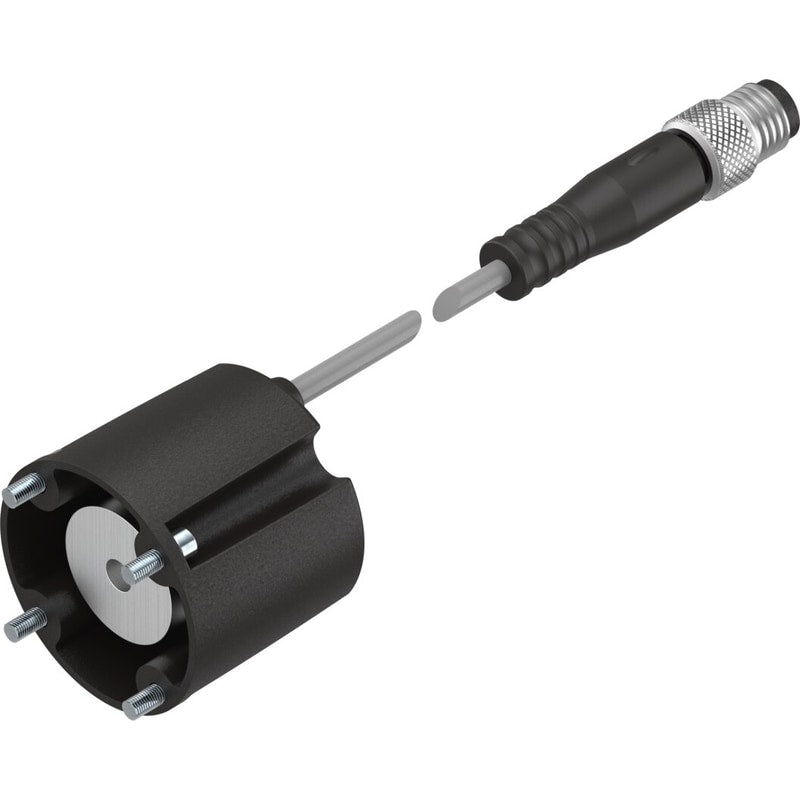

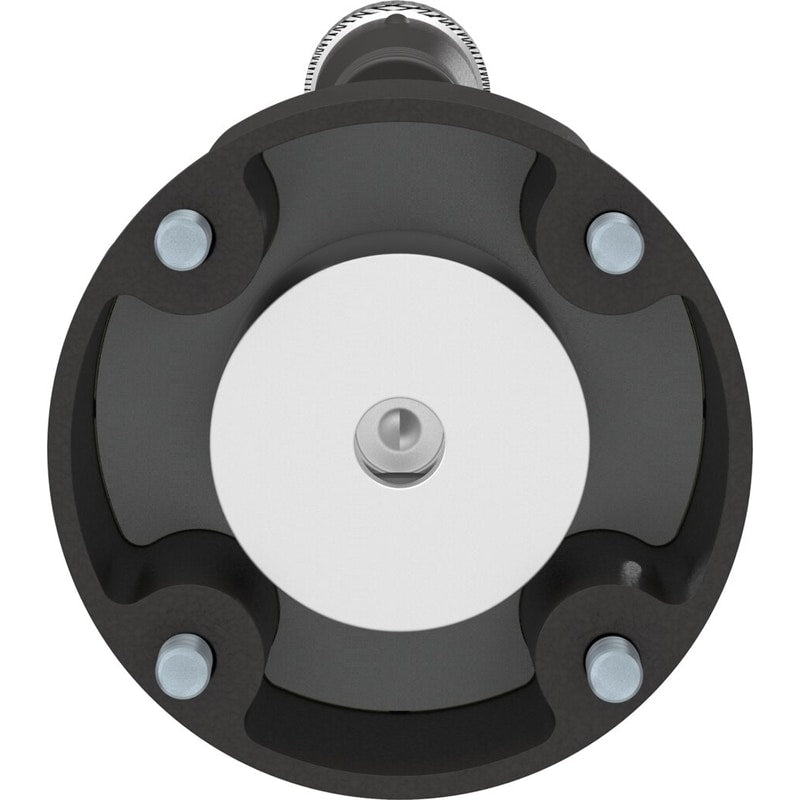

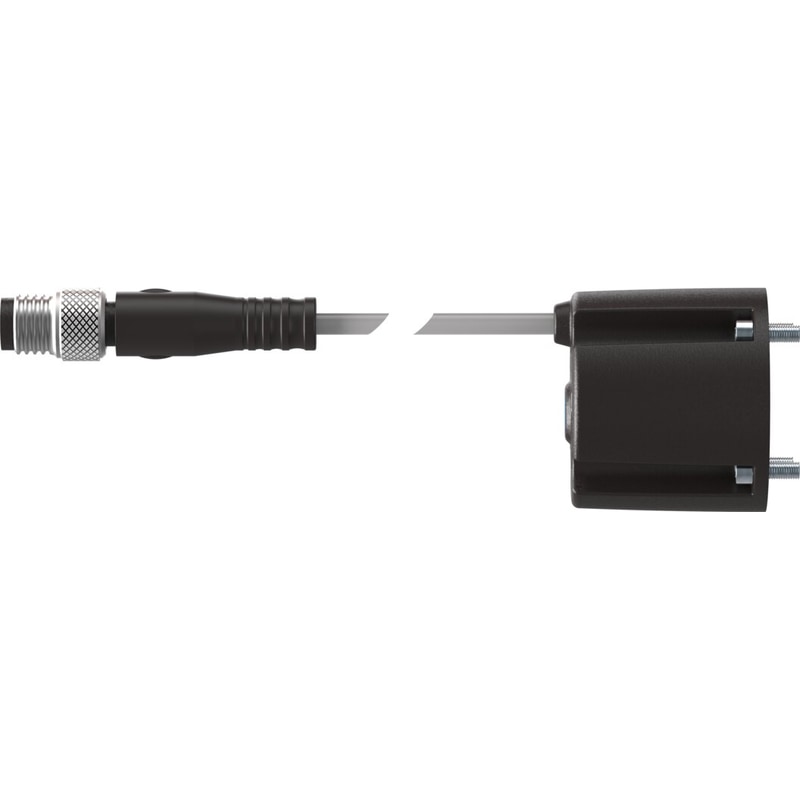

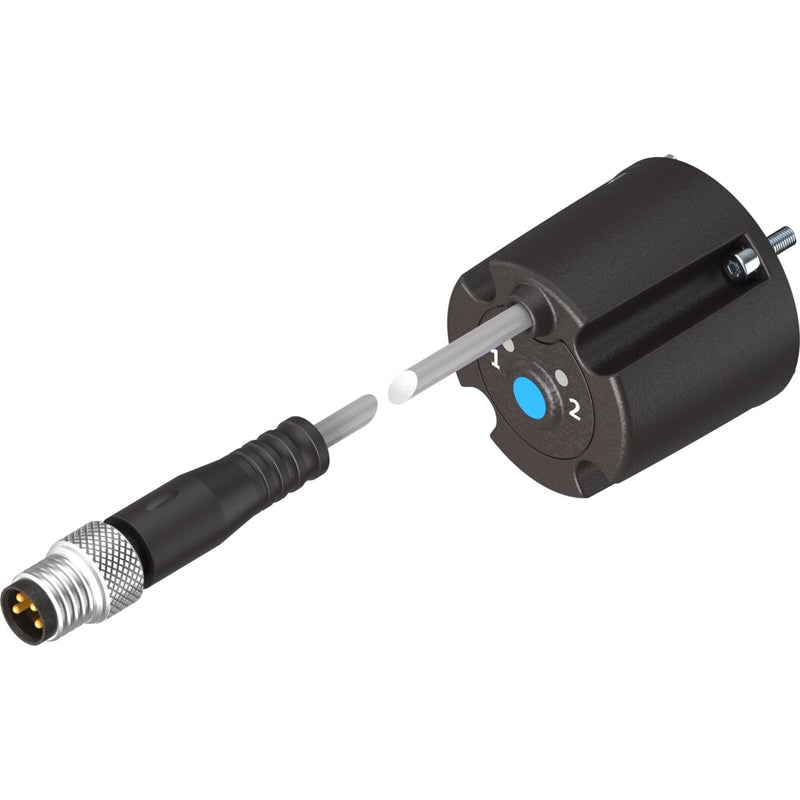

Position sensor
SRBS-Q12-6-E270-EP-1-S-M8
2619969
GTIN 4052568265410
Vendor Festo
- Design
- Round
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Sensing range
- 270 deg
- Measuring principle
- Magnetic Hall
Regular price
$127.82
Unit price
SRBS-Q12-6-E270-EP-1-S-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SRBS-Q12-6-E270-EP-1-S-M8
Regular price
$127.82
Unit price
SRBS-Q12-6-E270-EP-1-S-M8 is backordered and will ship as soon as it is back in stock.
position sensor SRBS-Q12-6-E270-EP-1-S-M8 is used to detect the rotation of the shaft for quarter turn actuators, sensing is magnetic and contactless. Design=Round, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=Oil resistant
| Design | Round |
|---|---|
| Based on the standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| KC mark | KC-EMV |
| Special characteristics | Oil resistant |
| Materials note | Conforms to RoHSHalogen-free |
| Measured variable | Rotation angle |
| Measuring principle | Hall magnetic |
| Sensing range | > 270 deg |
| Ambient temperature | '-20 ... 70 °C |
| Typical scanning interval | 3 ms |
| Switch output | 2 x PNP or 2 x NPN switchable |
