Sub-base
VABP-S1-1V1G-G14-2
2614860
GTIN 4052568254810
Vendor Festo
Regular price
$426.70
Unit price
VABP-S1-1V1G-G14-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABP-S1-1V1G-G14-2
Regular price
$426.70
Unit price
VABP-S1-1V1G-G14-2 is backordered and will ship as soon as it is back in stock.

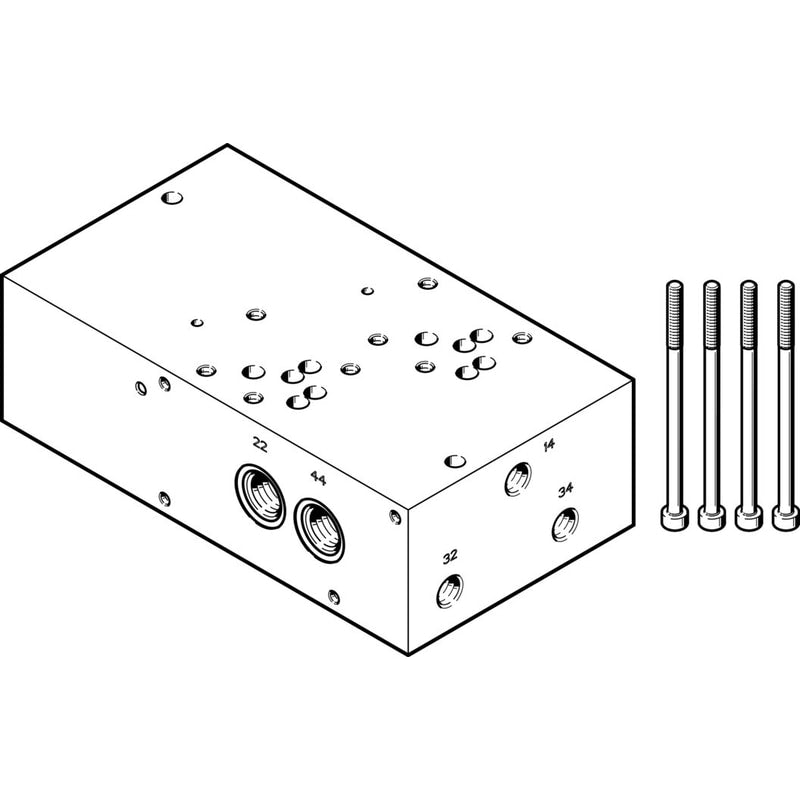

sub-base VABP-S1-1V1G-G14-2 Width=42 mm, Function port 32=G1/8, Function port 34=G1/8, Pneumatic port 22=(* G1/4, * Sub-base), Pneumatic port 44=(* Sub-base, * G1/4)
| Width | 42 mm |
|---|---|
| Function port 32 | G1/8 |
| Function port 34 | G1/8 |
| Pneumatic port 22 | G1/4Sub-base |
| Pneumatic port 44 | Sub-baseG1/4 |
| Assembly position | Any |
| Operating pressure | 0 ... 16 bar |
| Standard nominal flow rate | 1,400 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [6:4:4] |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Medium temperature | 0 ... 50 °C |
| Ambient temperature | 0 ... 50 °C |
| Product weight | 1,623 g |
