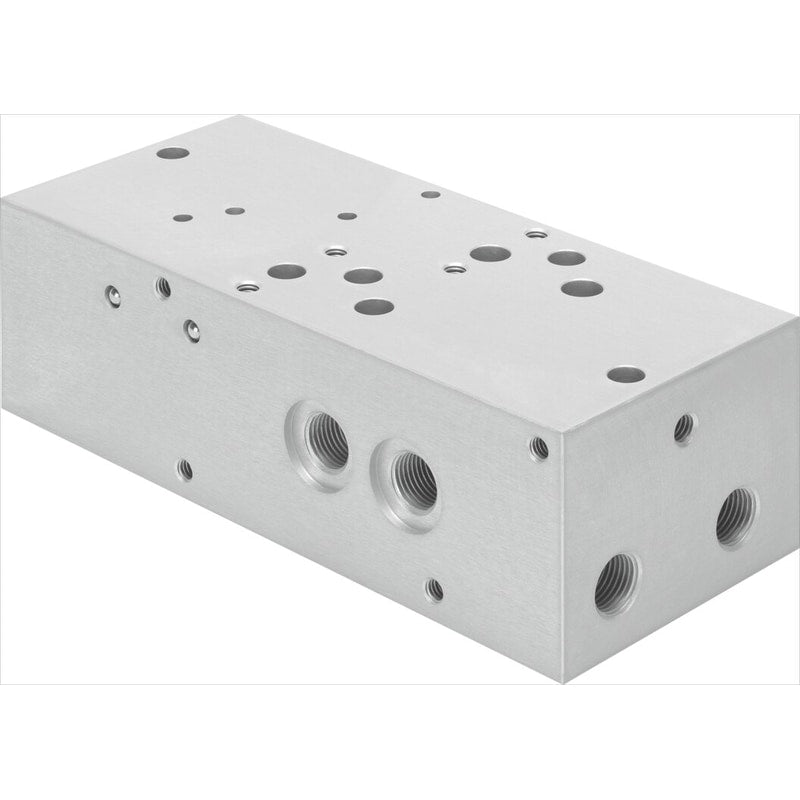

Sub-base
VABP-S3-26V1G-G18-2
2605074
GTIN 4052568254797
Vendor Festo
Regular price
$331.90
Unit price
VABP-S3-26V1G-G18-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABP-S3-26V1G-G18-2
Regular price
$331.90
Unit price
VABP-S3-26V1G-G18-2 is backordered and will ship as soon as it is back in stock.
| Width | 26 mm |
|---|---|
| Type code | VABP |
| Function port 32 | G1/8 |
| Function port 34 | G1/8 |
| Pneumatic connection 22 | G1/8Sub-base |
| Pneumatic connection 44 | Sub-baseG1/8 |
| Mounting position | Any |
| Operating pressure | 0 bar ... 16 bar |
| Standard nominal flow rate | 800 l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 668 g |
| Pilot air port 14 | M5 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 4 | G1/8 |
| Note on materials | RoHS-compliant |
| Manifold rail material | Wrought aluminum alloy |
| O-ring material | NBR |
| Material of screws | Steel |
