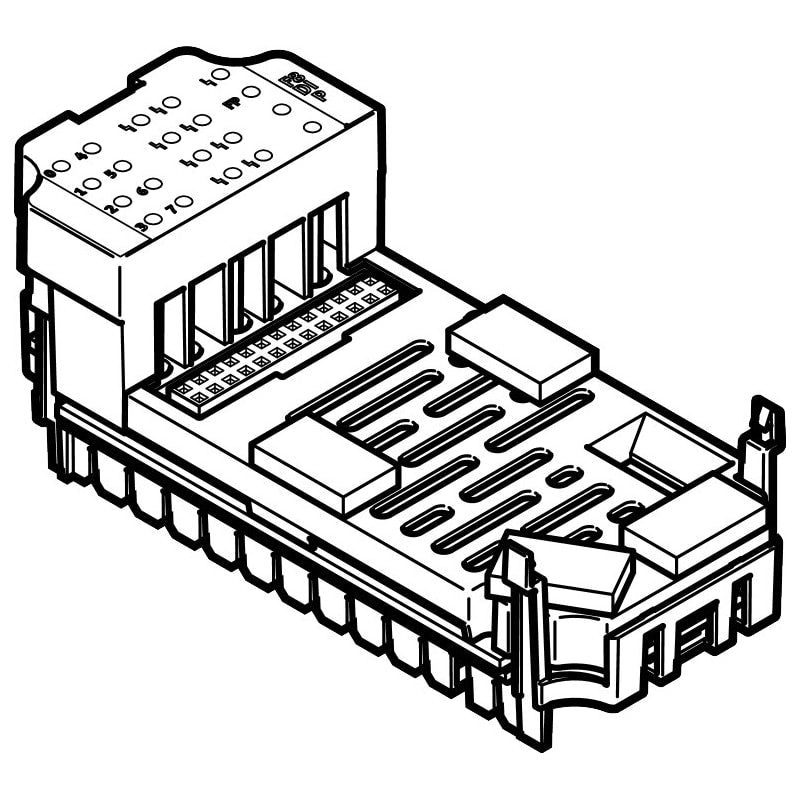

CPX-F8DE-P

input module CPX-F8DE-P Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 55 mm), No. of inputs=8, Diagnosis=(* - Wire break per channel, * - Communication, * - Short circuit per channel, * - Process data error, * - Crossover per channel, * - Self-test, * - Overvoltage, * - Overtemperature, * - Undervoltage), Safety function=Reliable detection and evaluation of input statuses, Safety Integrity Level (SIL)=(* Reliable detection and evaluation of input statuses in accordance with EN 62061 up to SIL CL3, * Reliable detection and evaluation of input statuses in accordance with EN61508 up to SIL CL3)

Dimensions W x L x H	(incl. interlinking block and connection technology)50 mm x 107 mm x 55 mm
No. of inputs	8
Diagnosis	'- Wire break per channel- Communication- Short circuit per channel- Process data error- Crossover per channel- Self-test- Overvoltage- Overtemperature- Undervoltage
Safety function	Reliable detection and evaluation of input statuses
Safety Integrity Level (SIL)	Reliable detection and evaluation of input statuses in accordance with EN 62061 up to SIL CL3Reliable detection and evaluation of input statuses in accordance with EN61508 up to SIL CL3
Performance level (PL)	Reliable detection and evaluation of input statuses in accordance with ISO 13849 up to cat. 4 and PL e
Control elements	DIL switches
LED displays	'- 1 Failsafe protocol active- 1 Group diagnosis- 8 Channel diagnosis- 8 Channel status
Operating voltage range DC	20.4 ... 28.8 V
Intrinsic current consumption at operating voltage	Typically 35 mA for electronics
Max. resultant current per module	0.125
Nominal operating voltage DC	24 V
Electrical isolation channel – channel	No
