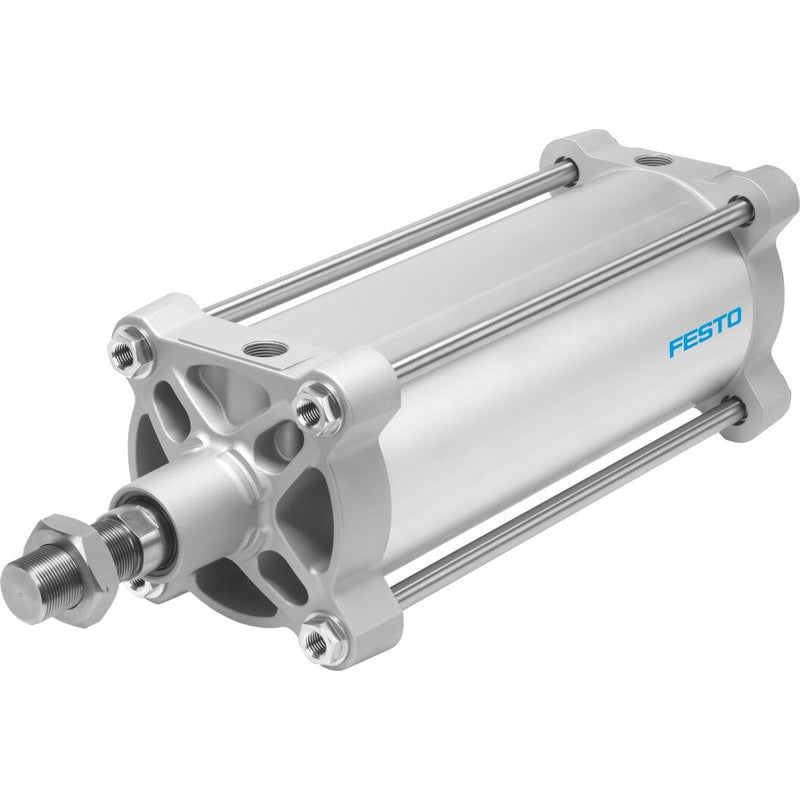

ISO cylinder
DSBG-200-125-P-N3
2537454
GTIN 4052568254582
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 200 mm
- Theoretical force at 6 bar, advancing
- 18850 N
- Stroke
- 125 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$1,706.16
Unit price
DSBG-200-125-P-N3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSBG-200-125-P-N3
Regular price
$1,706.16
Unit price
DSBG-200-125-P-N3 is backordered and will ship as soon as it is back in stock.
ISO cylinder DSBG-200-125-P-N3 Stroke=125 mm, Piston diameter=200 mm, Piston rod thread=M36x2, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 125 mm |
|---|---|
| Piston diameter | 200 mm |
| Piston rod thread | M36x2 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodTie rodCylinder barrel |
| Variants | Single-ended piston rod |
| Operating pressure | 0.6 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
