Rotary actuator
DRVS-40-270-P-EX4
2536501
GTIN 4052568265298
Vendor Festo
- Size
- 40
- Theoretical torque at 6 bar
- 20 Nm
- Swivel angle
- 0 deg - 270 deg
- Pneumatic connection
- G1/8
- Permissible mass moment of inertia
- 0.035 kgm²
Regular price
$461.80
Unit price
DRVS-40-270-P-EX4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DRVS-40-270-P-EX4
Regular price
$461.80
Unit price
DRVS-40-270-P-EX4 is backordered and will ship as soon as it is back in stock.

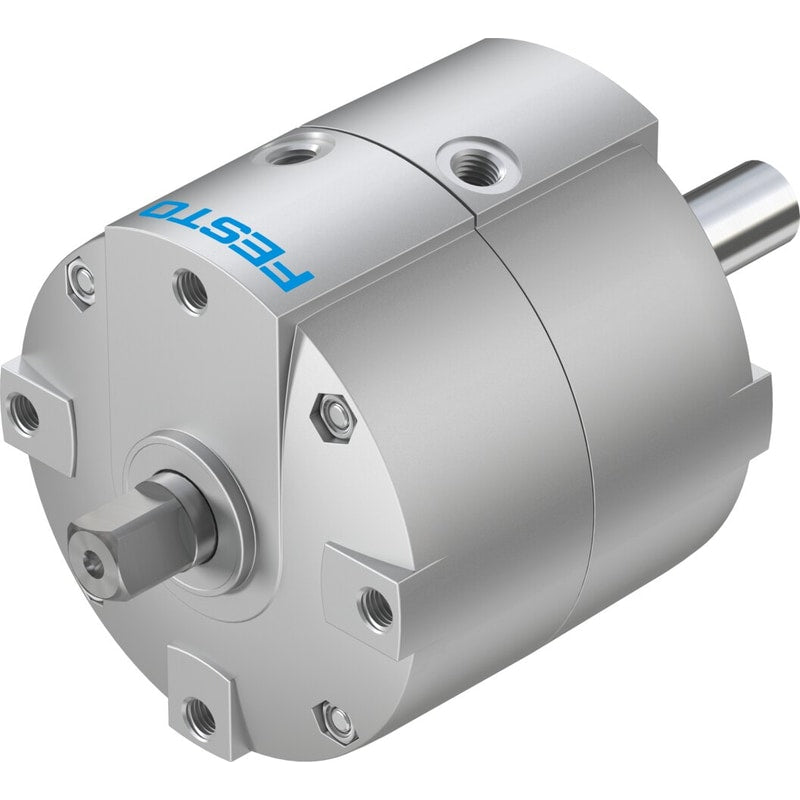

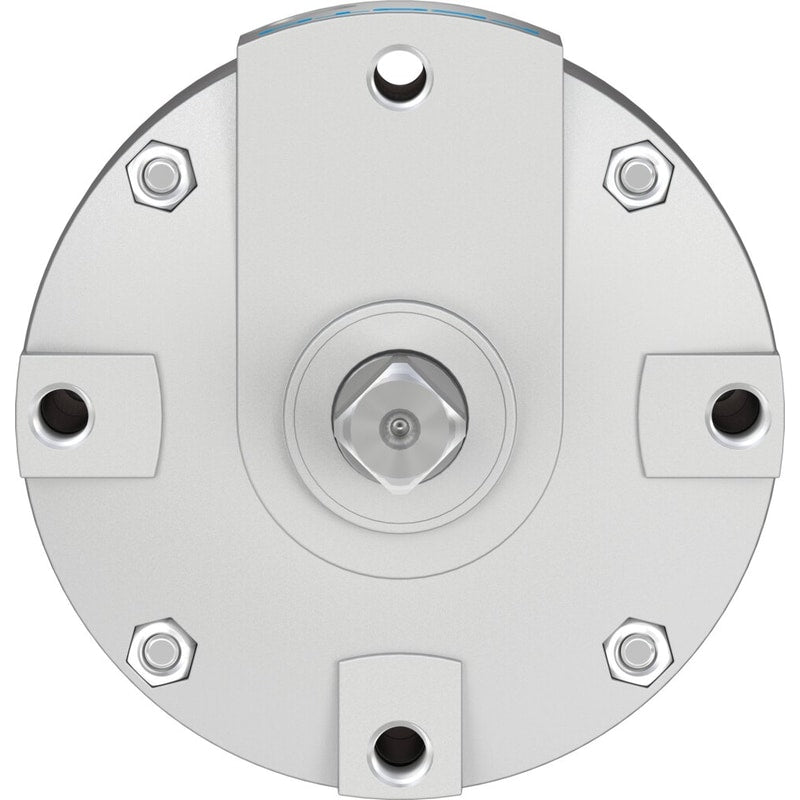

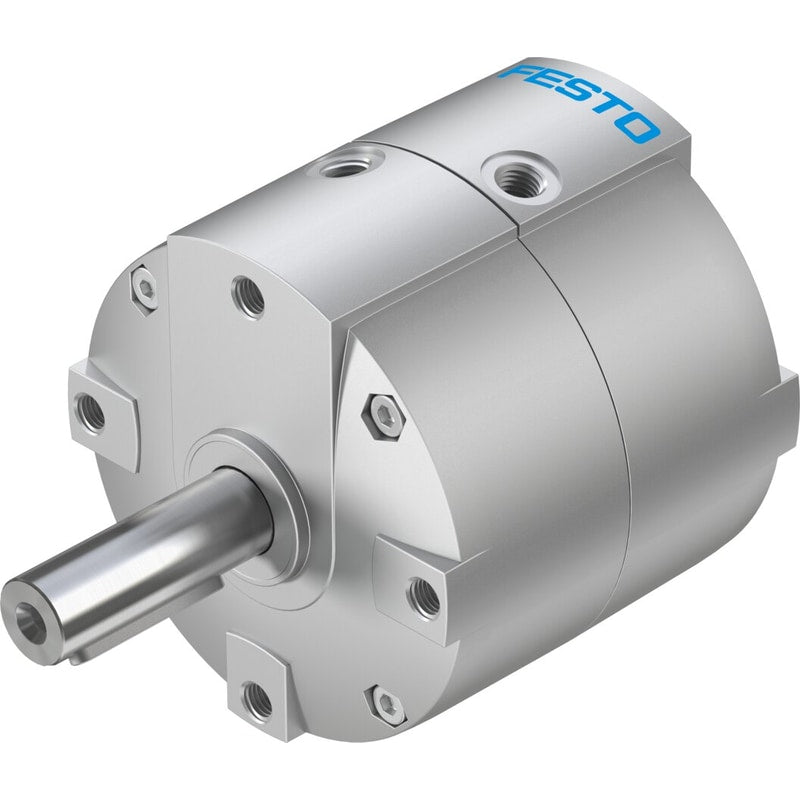

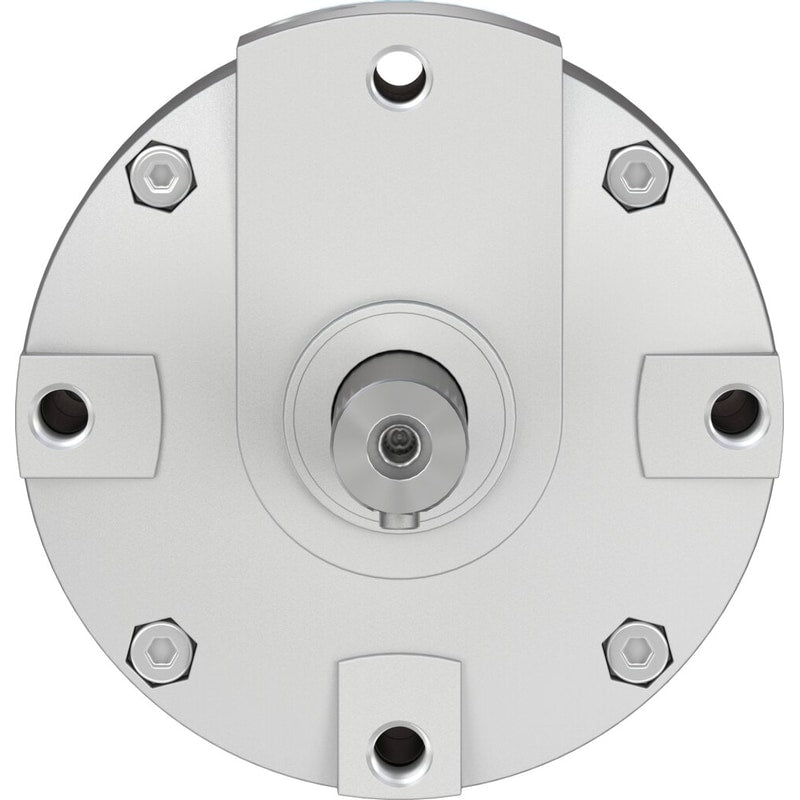

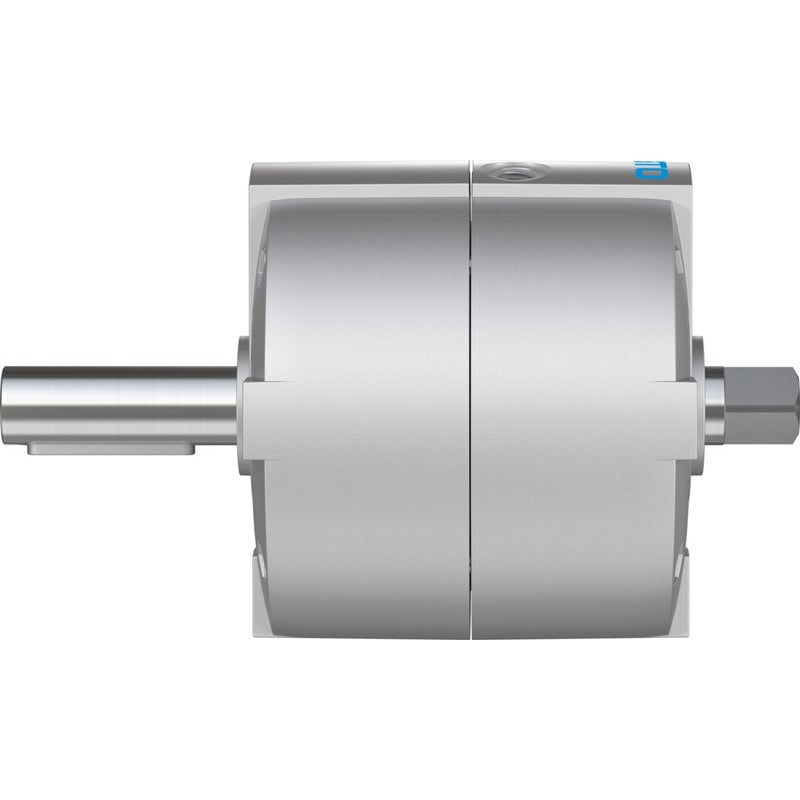

semi-rotary drive DRVS-40-270-P-EX4 Size=40, Cushioning angle=0,5 deg, Swivel angle=0 - 270 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Size | 40 |
|---|---|
| Cushioning angle | 0.5 deg |
| Swivel angle | 0 ... 270 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Rotary vane |
| Position detection | For proximity sensor |
| Variants | Spigot shaft |
| Operating pressure | 2 ... 8 bar |
| Max. swivel frequency at 6 bar | 2 Hz |
| ATEX category Gas | II 2G |
| Explosion ignition protection type Gas | c T4 X |
