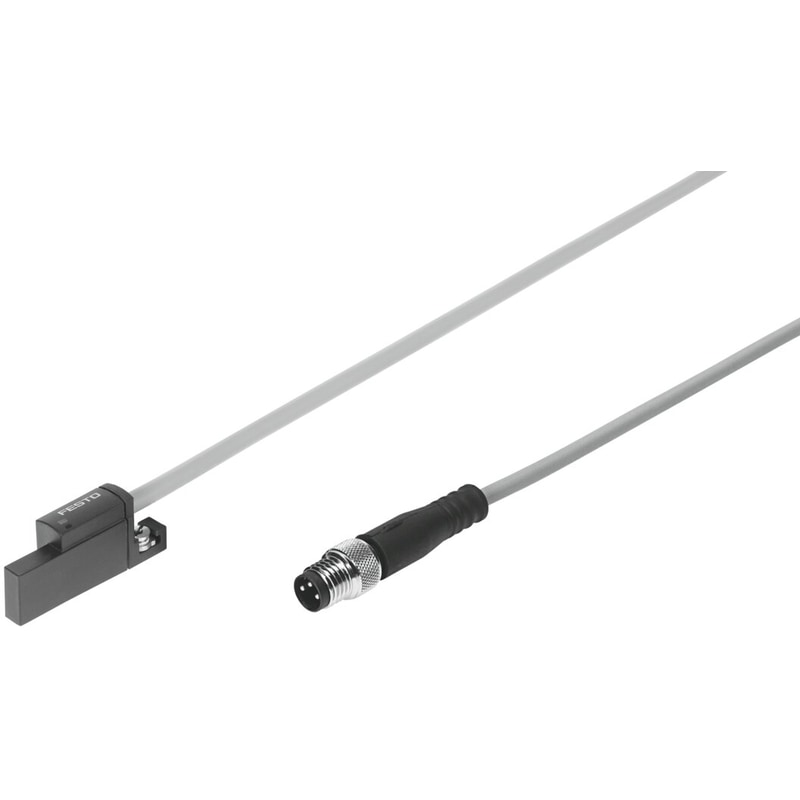

Proximity sensor
SDBT-BSW-1L-NU-W-0.3-N-M12
2427615
GTIN 4052568264994
Vendor Festo
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- DC operating voltage range
- 10 V - 30 V
- Switching element function
- N/O contact
- Switching output
- NPN
Regular price
$84.61
Unit price
SDBT-BSW-1L-NU-W-0.3-N-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDBT-BSW-1L-NU-W-0.3-N-M12
Regular price
$84.61
Unit price
SDBT-BSW-1L-NU-W-0.3-N-M12 is backordered and will ship as soon as it is back in stock.
proximity sensor SDBT-BSW-1L-NU-W-0.3-N-M12 Design=for T-slot, Based on the standard=EN 60947-5-2, Authorisation=(* RCM Mark, * c UL us - Listed (OL)), CE mark (see declaration of conformity)=to EU directive for EMC, Special characteristics=(* UV resistant, * Oil resistant, * Welding field immune, * Resistant to welding spatter)
| Design | for T-slot |
|---|---|
| Based on the standard | EN 60947-5-2 |
| Authorisation | RCM Markc UL us - Listed (OL) |
| CE mark (see declaration of conformity) | to EU directive for EMC |
| KC mark | KC-EMV |
| Special characteristics | UV resistantOil resistantWelding field immuneResistant to welding spatter |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Measured variable | Position |
| Measuring principle | Magnetoresistive |
| Ambient temperature | '-25 ... 85 °C |
| Max. travel speed | 1 m/s |
| Repetition accuracy | 0.2 mm |
| Switch output | NPN |
