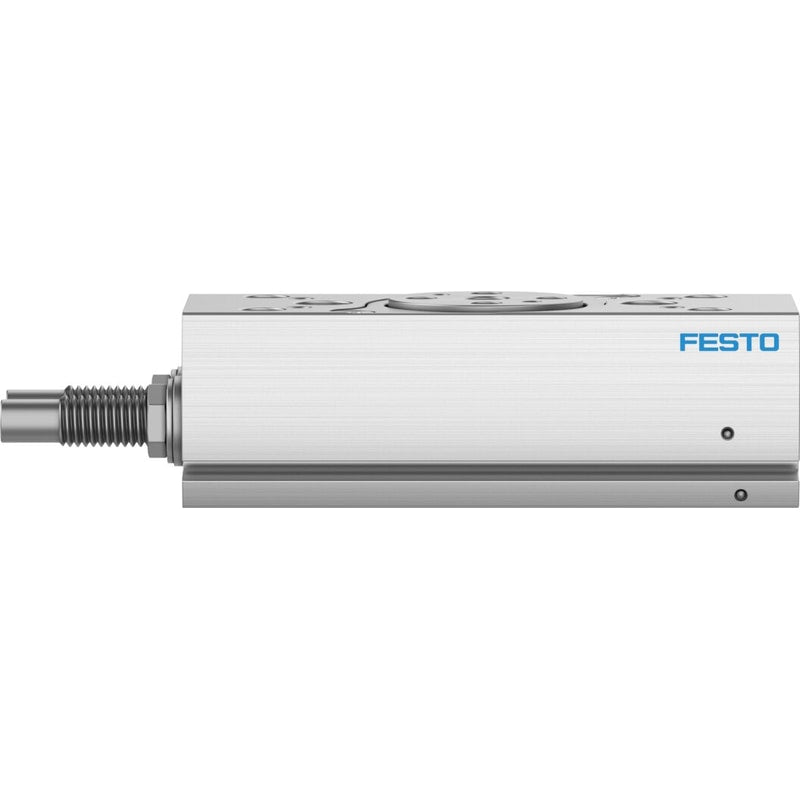

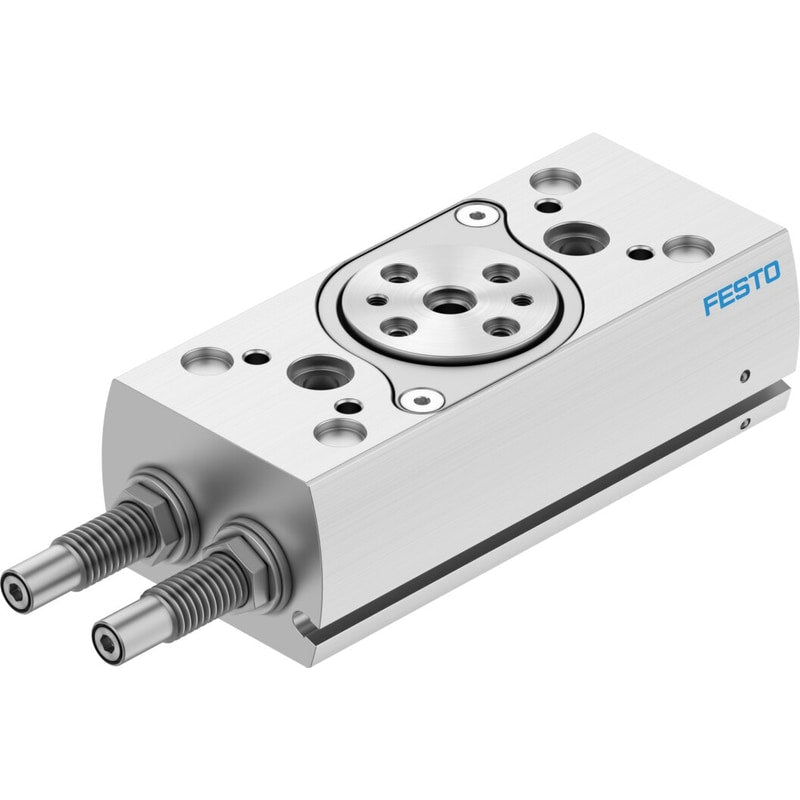

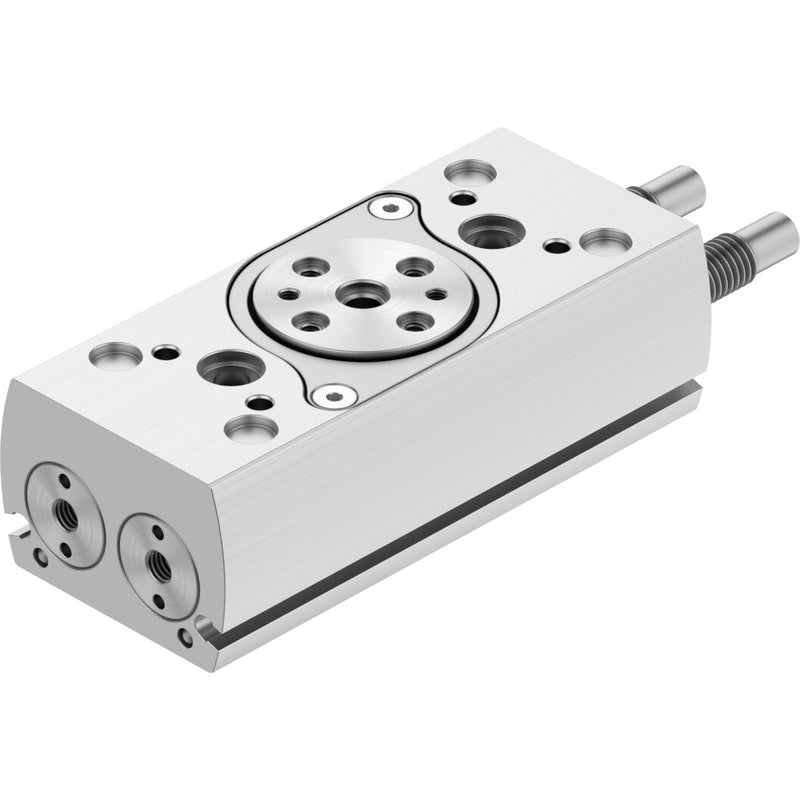

Rotary actuator
DRRD-12-180-FH-Y9A
2399248
GTIN 4052568253943
Vendor Festo
- Size
- 12
- Swivel angle
- 180 deg
- Permissible mass moment of inertia
- 0.03 kgm²
- Theoretical torque at 6 bar
- 0.8 Nm
- Position sensing
- For proximity sensor
Regular price
$820.30
Unit price
DRRD-12-180-FH-Y9A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DRRD-12-180-FH-Y9A
Regular price
$820.30
Unit price
DRRD-12-180-FH-Y9A is backordered and will ship as soon as it is back in stock.
semi-rotary drive DRRD-12-180-FH-Y9A Size=12, Cushioning angle=48 deg, Setting range of swivel angle on both sides=+10 /-100 deg, Swivel angle=180 deg, Cushioning=Y9: internal hydraulic cushioning normal
| Size | 12 |
|---|---|
| Cushioning angle | 48 deg |
| Setting range of swivel angle on both sides | '+10 /-100 deg |
| Swivel angle | 180 deg |
| Cushioning | Y9: internal hydraulic cushioning normal |
| Assembly position | Any |
| Design structure | Rack and pinion |
| Position detection | For proximity sensor |
| Operating pressure | 2 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 60 °C |
