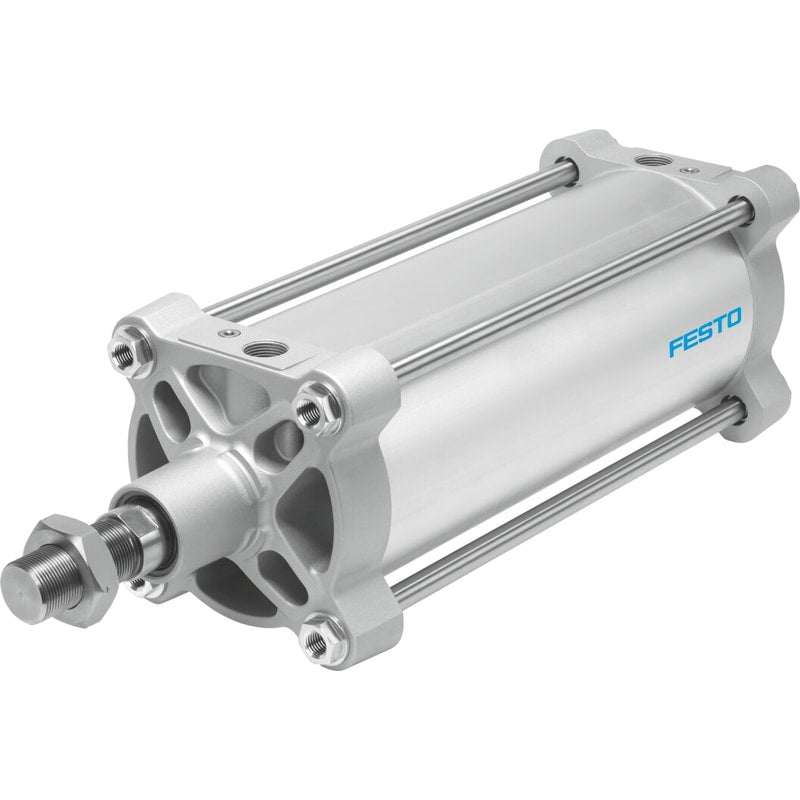

ISO cylinder
DSBG-200-25-PPVA-N3
2390139
GTIN 4052568253820
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 200 mm
- Theoretical force at 6 bar, advancing
- 18850 N
- Stroke
- 25 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$1,655.64
Unit price
DSBG-200-25-PPVA-N3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSBG-200-25-PPVA-N3
Regular price
$1,655.64
Unit price
DSBG-200-25-PPVA-N3 is backordered and will ship as soon as it is back in stock.
ISO cylinder DSBG-200-25-PPVA-N3 Stroke=25 mm, Piston diameter=200 mm, Piston rod thread=M36x2, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
| Stroke | 25 mm |
|---|---|
| Piston diameter | 200 mm |
| Piston rod thread | M36x2 |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design structure | PistonPiston rodTie rodCylinder barrel |
| Position detection | For proximity sensor |
| Variants | Single-ended piston rod |
| Operating pressure | 0.6 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
