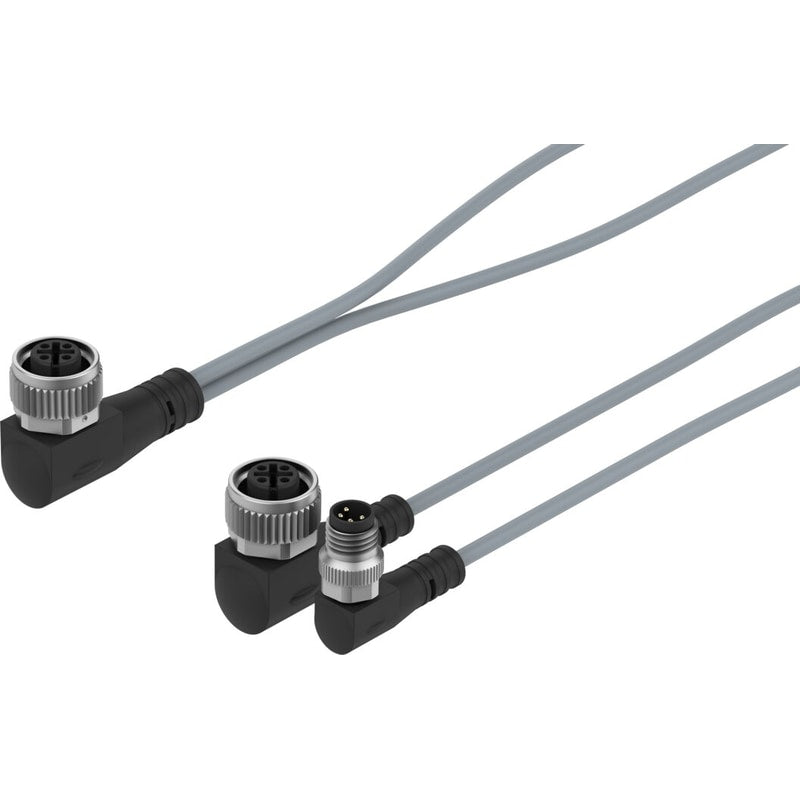

Connecting cable
NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1
2384165
GTIN 4052568109219
Vendor Festo
- Electrical connection 1
- 2x angled socket, M12, 3-pin
- Electrical connection 2
- Angled plug, M8, 4-pin
- Cable length
- 0.2 m
- Degree of protection
- IP65
Regular price
$91.63
Unit price
NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1
Regular price
$91.63
Unit price
NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 is backordered and will ship as soon as it is back in stock.
connecting cable NEDV-L2R1-V7-M12W3-K-0.1L1-N-M8W4-0.2R1 Based on the standard=(* EN 61076-2-101, * EN 61076-2-104, * EN 61984), Assembly position=Any, Product weight=28 g, Electrical connection 1=2x angled sockets , M12, 3-pin, Electrical connection 2=Angled plug, M8, 4-pin
| Based on the standard | EN 61076-2-101EN 61076-2-104EN 61984 |
|---|---|
| Assembly position | Any |
| Product weight | 28 g |
| Electrical connection 1 | 2x angled sockets , M12, 3-pin |
| Electrical connection 2 | Angled plug, M8, 4-pin |
| Operating voltage range DC | 0 ... 30 V |
| Acceptable current load at 40°C | 0.0833333333333333 |
| Cable length | 0.2 m |
| Cable diameter | 2.9 mm |
| Cable structure | 2x0,14 |
| Protection class | IP65 |
| Ambient temperature | '-25 ... 80 °C |
| Materials note | Conforms to RoHS |
