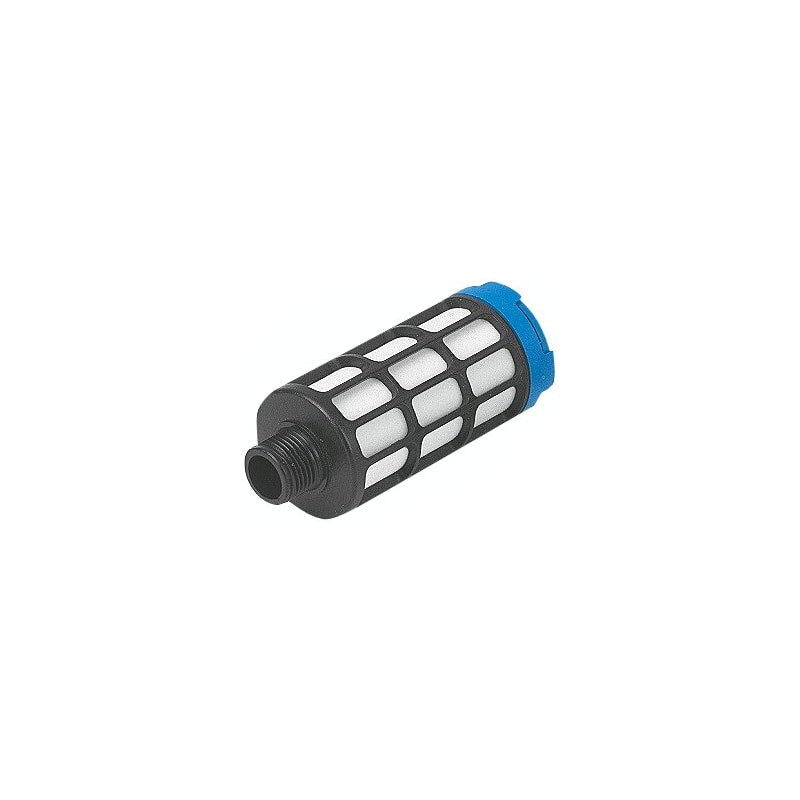

Pneumatic muffler
U-1
2312
GTIN 4052568000240
Vendor Festo
- Cushioning insert material
- PE
- Pneumatic connection
- G1
- Noise level
- 90 dB(A)
Regular price
$72.29
Unit price
U-1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
U-1
Regular price
$72.29
Unit price
U-1 is backordered and will ship as soon as it is back in stock.
silencer U-1 For reducing noise and avoiding contamination at the exhaust ports of pneumatic components. Assembly position=Any, Operating pressure=0 - 10 bar, Flow rate to atmosphere=19900 l/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Assembly position | Any |
|---|---|
| Operating pressure | 0 ... 10 bar |
| Flow rate to atmosphere | 19,900 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Sound pressure level | 84 dB(A) |
| Ambient temperature | '-10 ... 70 °C |
| Product weight | 140 g |
| Pneumatic connection | G1 |
| Material of silencer insert | PE |
| Materials note | Free of copper and PTFEConforms to RoHS |
