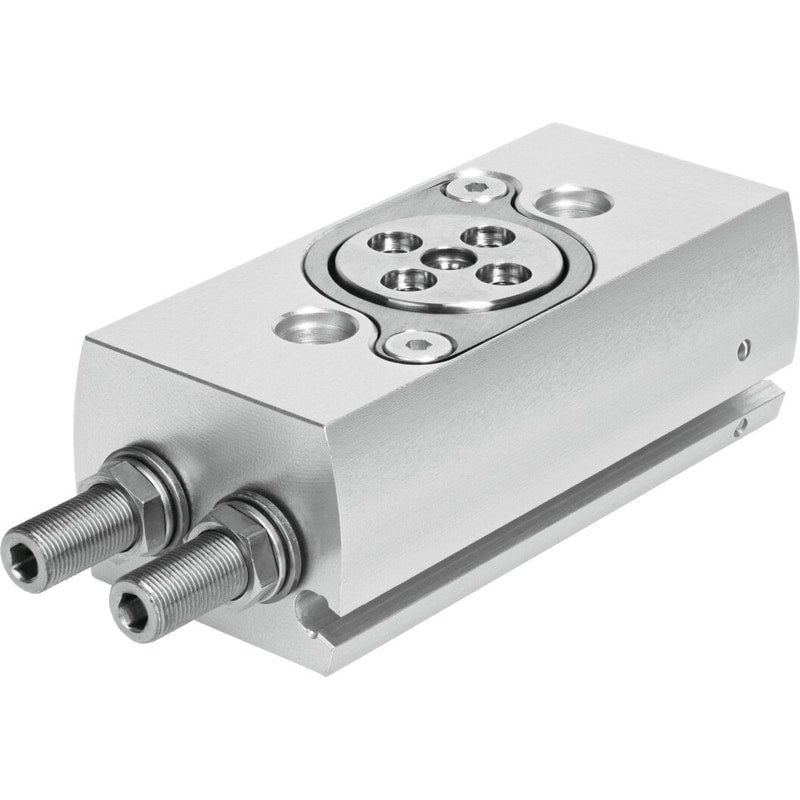

Rotary actuator
DRRD-8-180-FH-PA
2223060
GTIN 4052568253011
Vendor Festo
- Size
- 8
- Swivel angle
- 180 deg
- Permissible mass moment of inertia
- 0.0015 kgm²
- Theoretical torque at 6 bar
- 0.2 Nm
- Position sensing
- For proximity sensor
Regular price
$432.94
Unit price
DRRD-8-180-FH-PA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DRRD-8-180-FH-PA
Regular price
$432.94
Unit price
DRRD-8-180-FH-PA is backordered and will ship as soon as it is back in stock.
semi-rotary drive DRRD-8-180-FH-PA Size=8, Cushioning angle=38 deg, Setting range of swivel angle on both sides=+10 /-100 deg, Swivel angle=180 deg, Cushioning=P: Flexible cushioning rings/plates at both ends
| Size | 8 |
|---|---|
| Cushioning angle | 38 deg |
| Setting range of swivel angle on both sides | '+10 /-100 deg |
| Swivel angle | 180 deg |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | Rack and pinion |
| Position detection | For proximity sensor |
| Operating pressure | 3 ... 8 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Ambient temperature | '-10 ... 60 °C |
