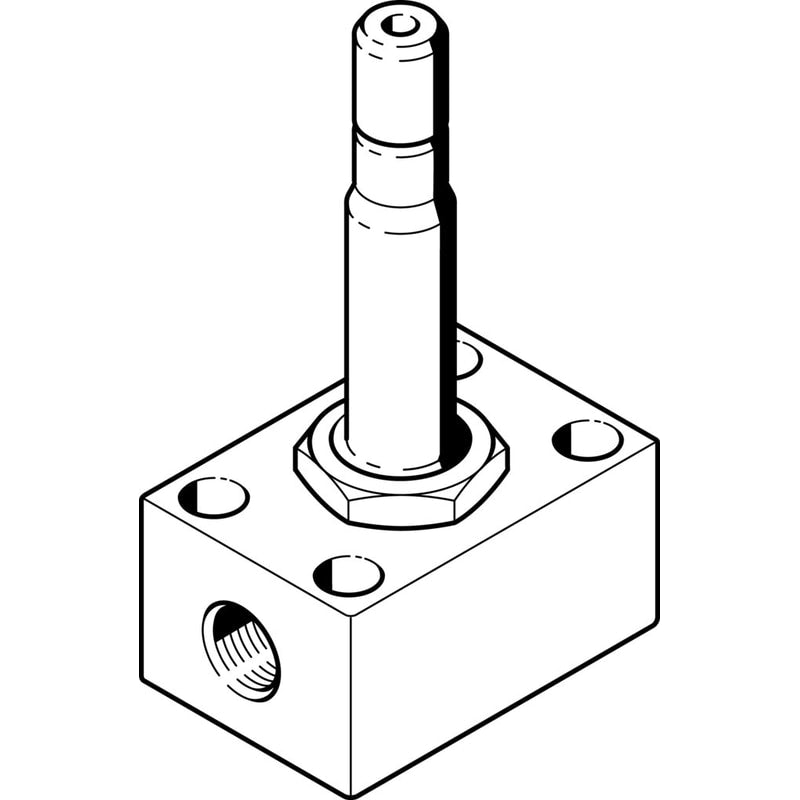

Air solenoid valve
MCH-3-1/8
2199
GTIN 4052568000141
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 160 l/min
- Pneumatic connection 1
- G1/8
- Actuation type
- Electrical
Regular price
$218.18
Unit price
MCH-3-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MCH-3-1/8
Regular price
$218.18
Unit price
MCH-3-1/8 is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Standard nominal flow rate | 160 l/min |
| Pneumatic working port | G1/8 |
| Operating pressure | 0 bar ... 7 bar |
| Design | Poppet valve with return spring |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Certification | c CSA us (OL) |
| Nominal width | 2.5 mm |
| Type code | MCH |
| Sealing principle | Soft |
| Manual override | Detenting |
| Type of control | Direct |
| Flow direction | Non-reversible |
| Symbol | 991308 |
| Switching time off | 13 ms |
| On switching time | 12 ms |
| Duty cycle | 1 |
| Coil characteristics | 380 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA120 V AC: 60 Hz, initial power 30.0 VA, holding power 22.0 VA12 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA220 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA12 V DC: 11.7 W24 V DC: 11.0 W110 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA240 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA96 V DC: 11.0 W42 V DC: 12.0 W240 V DC: 17.9 W24 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA220 V DC: 15.0 W110 V DC: 12.7 W48 V AC: 50 Hz, initial power 30.0 VA, holding power 22.0 VA42 V AC: 50/60 Hz, initial power 30.0 VA, holding power 22.0 VA |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Storage temperature | -40 °C ... 100 °C |
| Temperature of medium | -10 °C ... 60 °C |
| Type of mounting | With through-hole |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Note on materials | RoHS-compliant |
