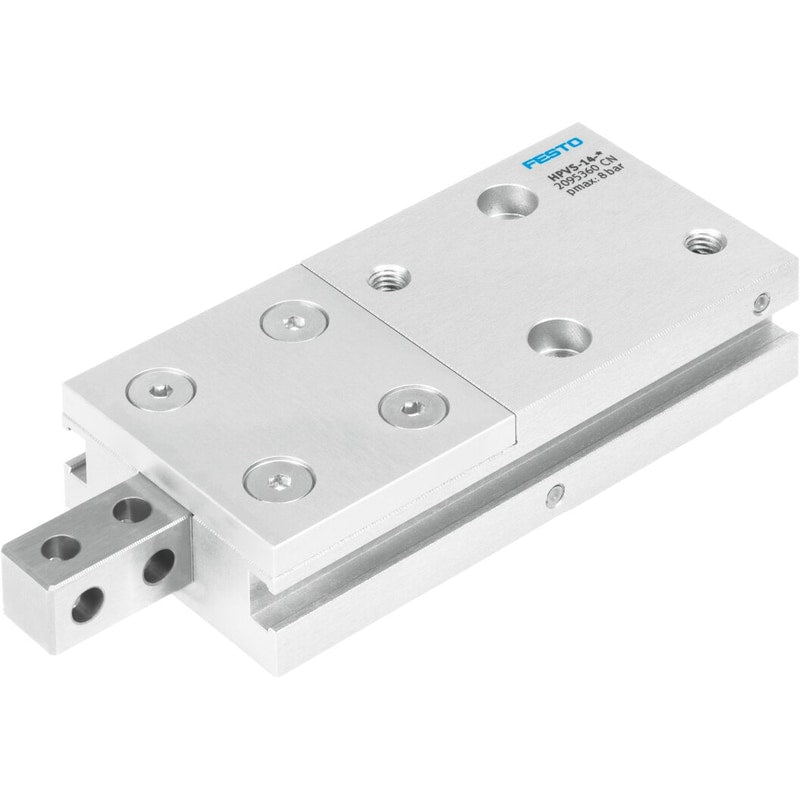

Feed separator
HPVS-14-20-A
2095360
GTIN 4052568251314
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 14 mm
- Stroke
- 20 mm
- Theoretical force at 6 bar, advancing
- 90 N
Regular price
$650.52
Unit price
HPVS-14-20-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HPVS-14-20-A
Regular price
$650.52
Unit price
HPVS-14-20-A is backordered and will ship as soon as it is back in stock.
feed separator HPVS-14-20-A Stroke=20 mm, Piston diameter=14 mm, Max. replacement accuracy=0,3 mm, Max. stem backlash Sx=0,05 mm, Max. stem backlash Sz=0,03 mm
| Stroke | 20 mm |
|---|---|
| Piston diameter | 14 mm |
| Max. replacement accuracy | 0.3 mm |
| Max. stem backlash Sx | 0.05 mm |
| Max. stem backlash Sz | 0.03 mm |
| Max. angular gripper jaw backlash ax | 0.12 deg |
| Max. angular gripper jaw backlash ay | 0.2 deg |
| Max. angular gripper jaw backlash az | 0.175 deg |
| Mounting of external fingers | Through-hole |
| Cushioning | No cushioning |
| Assembly position | Any |
| Mode of operation | double-acting |
| Design structure | Piston rodNon-rotating |
