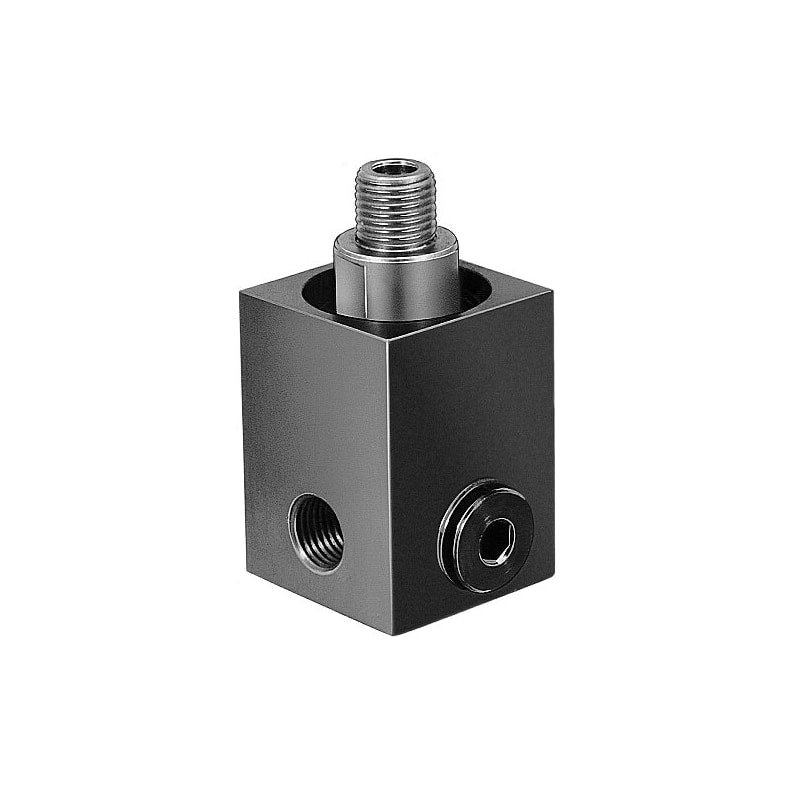

Rotary distributor
GF-3/8
2095
GTIN 4052568110116
Vendor Festo
- Max. rotational speed
- 300 1/min
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- Internal thread G3/8
Regular price
$223.94
Unit price
GF-3/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GF-3/8
Regular price
$223.94
Unit price
GF-3/8 is backordered and will ship as soon as it is back in stock.
rotary distributor GF-3/8 With one fixed air feed and four rotating outputs Nominal size=15 mm, Assembly position=Any, Operating pressure complete temperature range=-0,95 - 10 bar, Max. speed=300 1/min, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-]
| Fitting Type | n/a |
|---|---|
| Nominal size | 15 mm |
| Assembly position | Any |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Max. speed | 300 1/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| connection 1 | Male thread G3/8 |
| connection 2 | Female thread G3/8 |
| Materials note | Conforms to RoHS |
