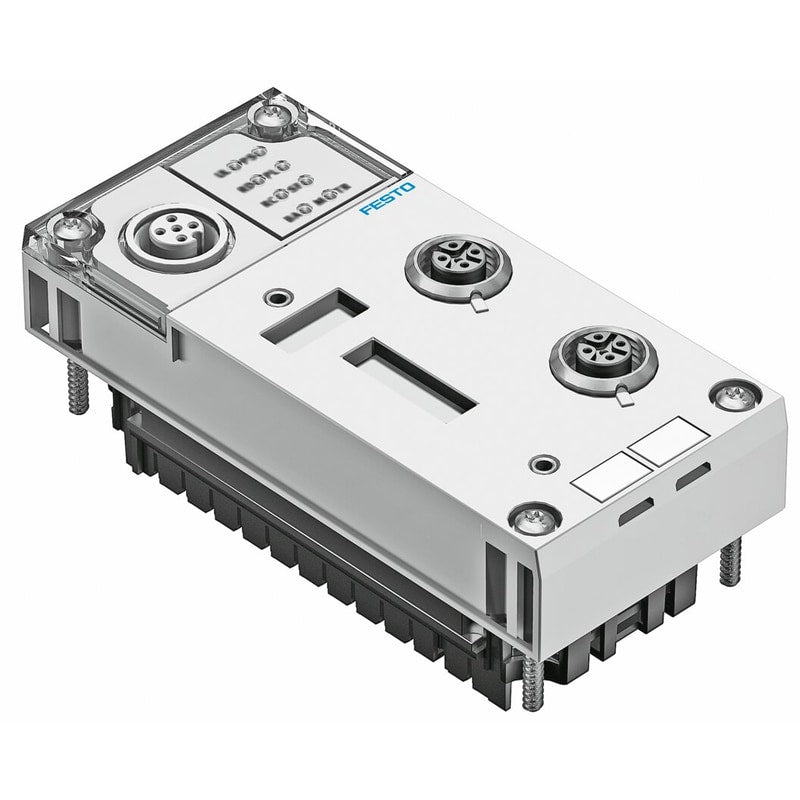

CPX-FB39

bus node CPX-FB39 Dimensions W x L x H=(* (including interlinking block), * 50 mm x 107 mm x 50 mm), Fieldbus interface=2x socket, M12x1, 4-pin, D-coded, Device-specific diagnostics=(* Channel and module-orientated diagnostics, * - Undervoltage of modules, * - Diagnostic memory), Configuration support=SDDML file, Parameters configuring=(* - Diagnostic behaviour, * - Fallback output data, * - Forcing of channels, * - Signal setup, * - System parameter)

Dimensions W x L x H	(including interlinking block)50 mm x 107 mm x 50 mm
Fieldbus interface	2x socket, M12x1, 4-pin, D-coded
Device-specific diagnostics	Channel and module-orientated diagnostics- Undervoltage of modules- Diagnostic memory
Configuration support	SDDML file
Parameters configuring	'- Diagnostic behaviour- Fallback output data- Forcing of channels- Signal setup- System parameter
Additional functions	Acyclic and cyclic data access via SercosIP addressing via Sercos parameters or operator unitChannel-oriented diagnostics via fieldbusStart-up parameterisation in normal text via fieldbusSystem status can be represented using process dataAdditional diagnostics interface for operator units
Control elements	DIL switches
Baud rate	10/100, full/half duplex MBit/s
Operating voltage range DC	18 ... 30 V
Intrinsic current consumption at operating voltage	Typ. 100 mA
Nominal operating voltage DC	24 V
Corrosion resistance classification CRC	1 - Low corrosion stress
Storage temperature	'-20 ... 70 °C
