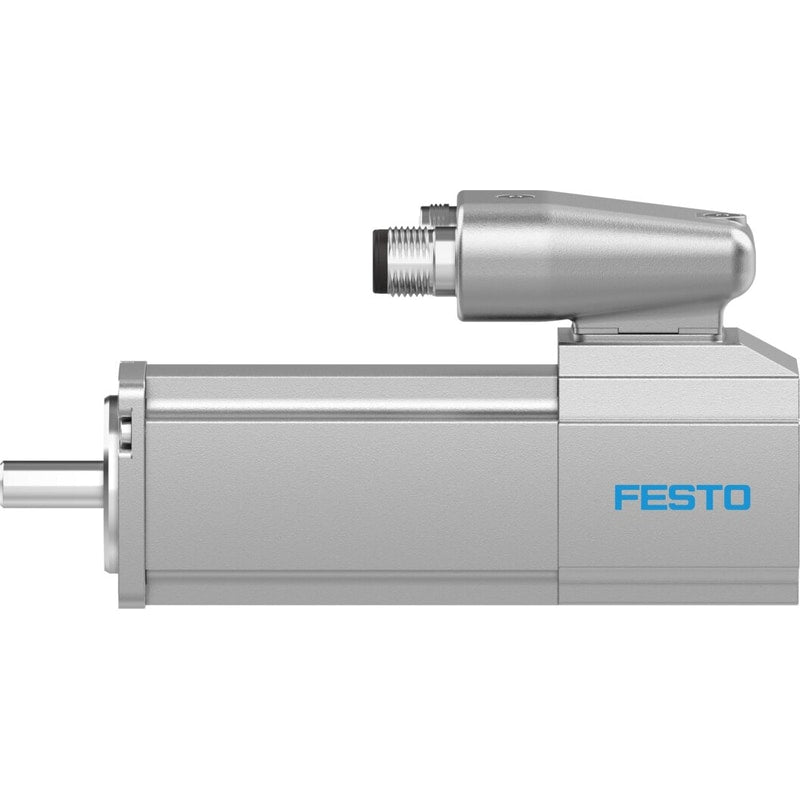

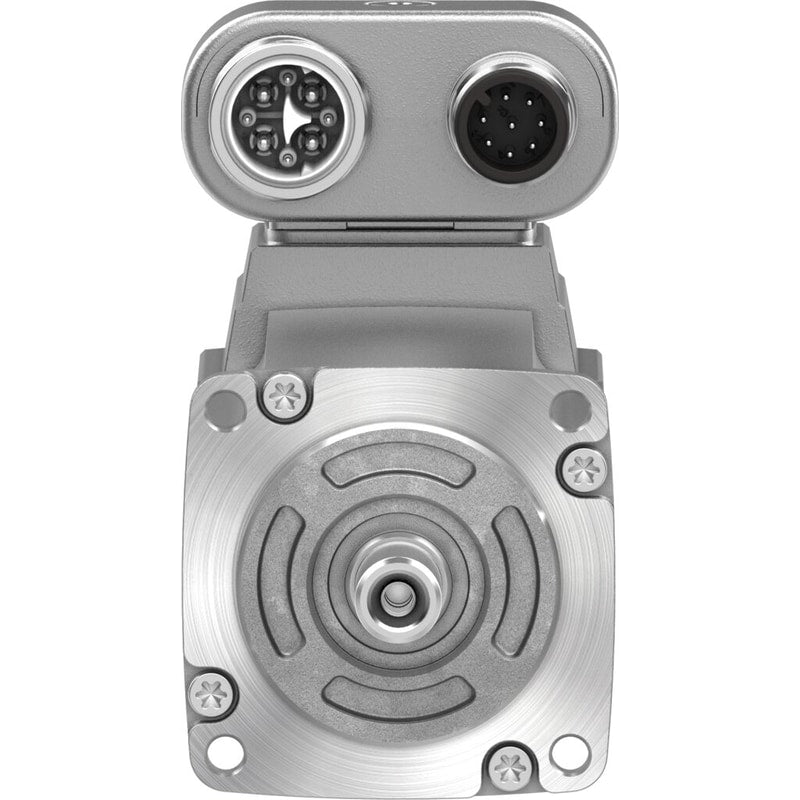

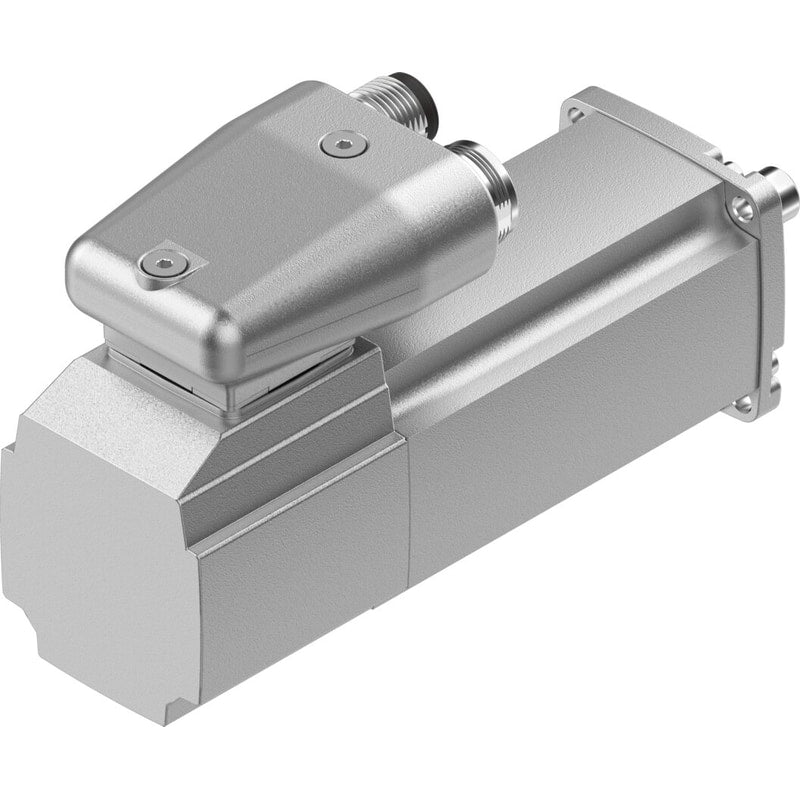

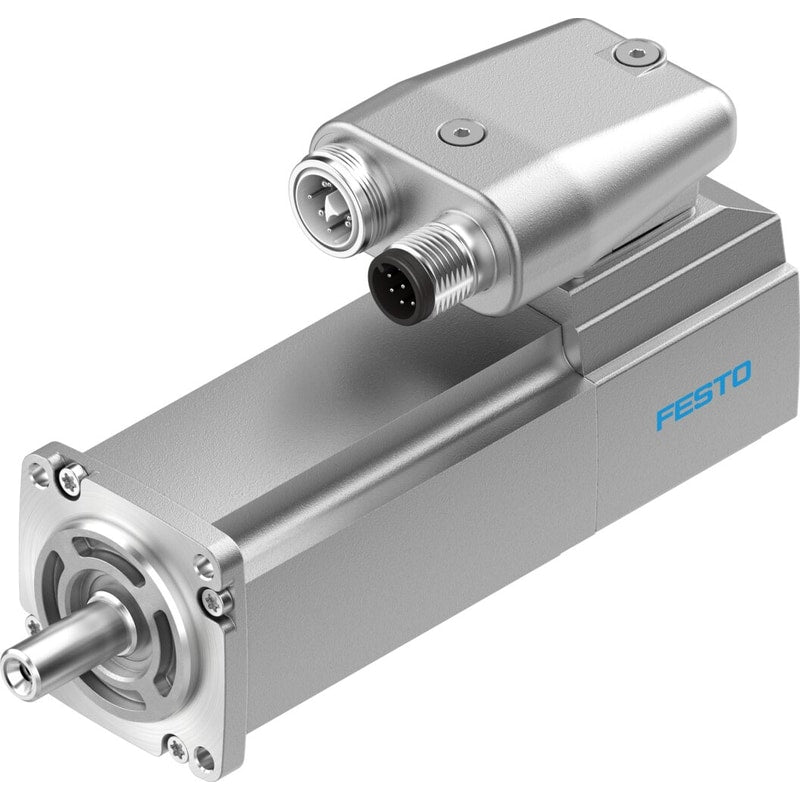

Servo motor
EMME-AS-40-M-LV-AS
2082444
GTIN 4052568250898
Vendor Festo
- Nominal operating voltage DC
- 360 V
- Motor nominal power
- 200 W
- Stall torque
- 0.35 Nm
- Max. rotational speed
- 10000 1/min
Regular price
$1,150.02
Unit price
EMME-AS-40-M-LV-AS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMME-AS-40-M-LV-AS
Regular price
$1,150.02
Unit price
EMME-AS-40-M-LV-AS is backordered and will ship as soon as it is back in stock.
| Number of pole pairs | 2 |
|---|---|
| Type code | EMME-AS |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor interface | RS422 TTL A/B channels + zero index |
| Rotor position sensor measuring principle | Capacitive |
| Max. rotational speed | 10000 1/min |
| Nominal rotary speed | 9000 1/min |
| Continuous stall current | 1.6 A |
| Insulation protection class | F |
| Motor constants | 0.175 Nm/A |
| Nominal operating voltage DC | 360 V |
| Motor nominal power | 200 W |
| DC nominal voltage | 360 V |
| Motor nominal current | 1.2 A |
| Typical rotor position sensor resolution | 12 bit |
| Rotor position encoder, typical angular accuracy | 20 arcmin |
| Rotor position encoder, sinusoidal/cosinusoidal periods per revolution | 16 |
| Phase-phase winding resistance | 8.6 Ohm |
| Winding inductance phase-phase | 4.51 mH |
| Type of winding switch | Star inside |
| Peak current | 6.4 A |
| Voltage constant, phase-to-phase | 13.2 mVmin |
| Rating class according to EN 60034-1 | S1 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP21 |
| Ambient temperature | -10 °C ... 40 °C |
| Certification | c UL us - Recognized (OL)RCM compliance mark |
| Total output inertia moment | 0.054 kgcm² |
| Nominal torque | 0.21 Nm |
| Peak torque | 1.4 Nm |
| Stall torque | 0.35 Nm |
| Permissible axial shaft load | 12 N |
| Permissible radial shaft load | 115 N |
| MTTFd, subcomponent | 340 years, rotor position sensor |
| Product weight | 700 g |
| Electrical connection technology | Plug |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Conforms to standard | IEC 60034 |
