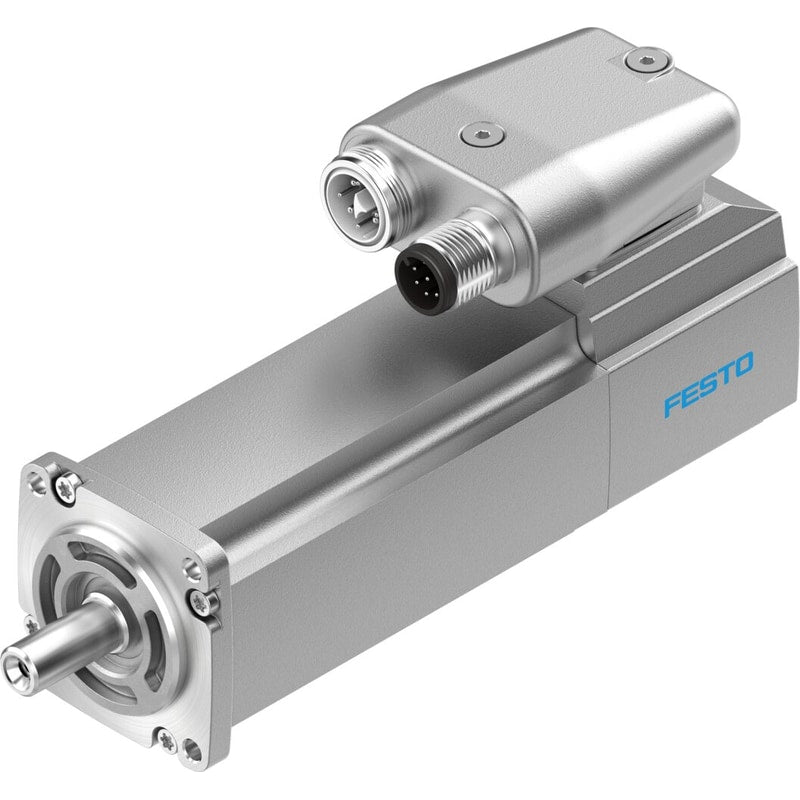

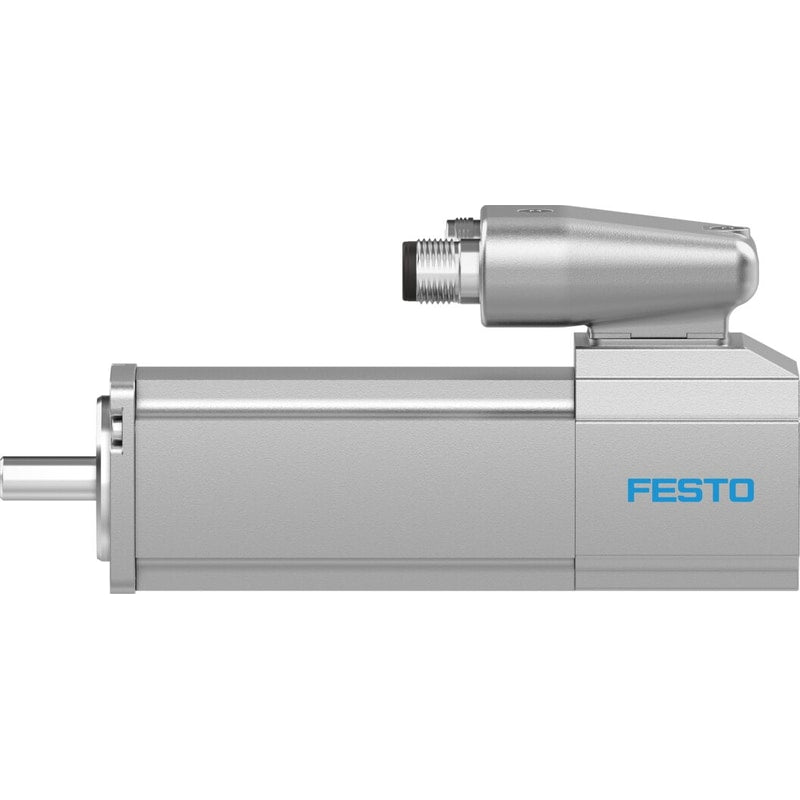

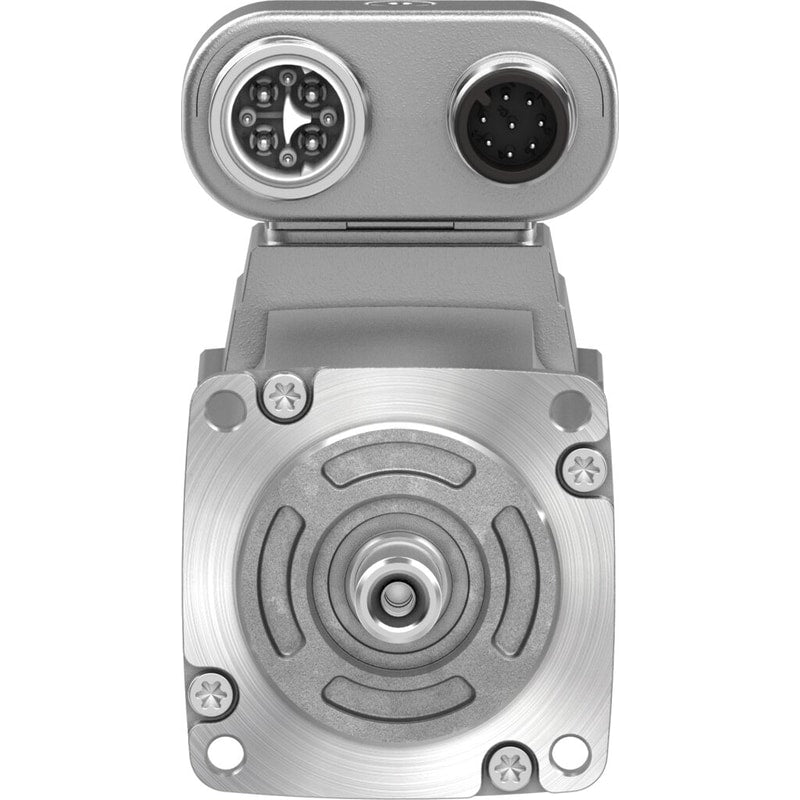

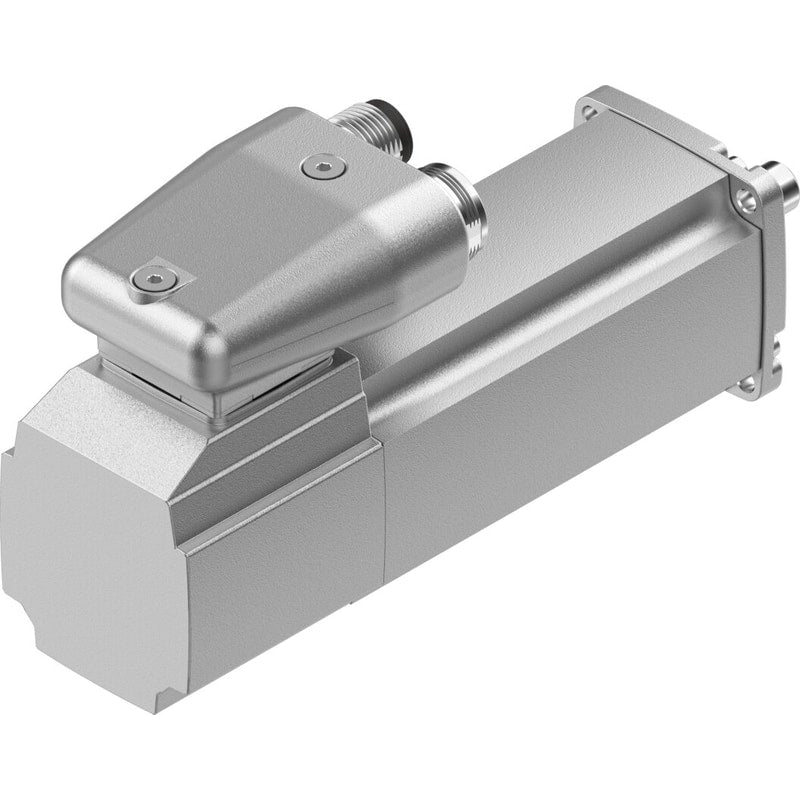

Servo motor
EMME-AS-40-S-LV-ASB
2082430
GTIN 4052568250874
Vendor Festo
- Nominal operating voltage DC
- 360 V
- Motor nominal power
- 110 W
- Stall torque
- 0.18 Nm
- Max. rotational speed
- 10000 1/min
Regular price
$1,525.53
Unit price
EMME-AS-40-S-LV-ASB is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMME-AS-40-S-LV-ASB
Regular price
$1,525.53
Unit price
EMME-AS-40-S-LV-ASB is backordered and will ship as soon as it is back in stock.
| Number of pole pairs | 2 |
|---|---|
| Type code | EMME-AS |
| Rotor position sensor | Absolute encoder, single-turn |
| Rotor position sensor interface | RS422 TTL A/B channels + zero index |
| Rotor position sensor measuring principle | Capacitive |
| Max. rotational speed | 10000 1/min |
| Nominal rotary speed | 9000 1/min |
| Brake DC operating voltage | 24 V |
| Continuous stall current | 0.8 A |
| Insulation protection class | F |
| Brake power consumption | 8 W |
| Motor constants | 0.171 Nm/A |
| Nominal operating voltage DC | 360 V |
| Motor nominal power | 110 W |
| DC nominal voltage | 360 V |
| Motor nominal current | 0.7 A |
| Typical rotor position sensor resolution | 12 bit |
| Rotor position encoder, typical angular accuracy | 20 arcmin |
| Rotor position encoder, sinusoidal/cosinusoidal periods per revolution | 16 |
| Phase-phase winding resistance | 25.6 Ohm |
| Winding inductance phase-phase | 9.95 mH |
| Type of winding switch | Star inside |
| Peak current | 3.2 A |
| Rating class according to EN 60034-1 | S1 |
| CE marking (see declaration of conformity) | As per EU low voltage directiveAs per EU EMC directive |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Storage temperature | -20 °C ... 70 °C |
| Relative air humidity | 0 - 90 % |
| Degree of protection | IP21 |
| Ambient temperature | -10 °C ... 40 °C |
| Certification | c UL us - Recognized (OL)RCM compliance mark |
| Total output inertia moment | 0.055 kgcm² |
| Brake holding torque | 0.4 Nm |
| Brake mass moment of inertia | 0.014 kgcm² |
| Nominal torque | 0.12 Nm |
| Peak torque | 0.7 Nm |
| Stall torque | 0.18 Nm |
| Permissible axial shaft load | 12 N |
| Permissible radial shaft load | 105 N |
| MTTF, subcomponent | 371 years, holding brake |
| MTTFd, subcomponent | 340 years, rotor position sensor |
| Switching cycles, holding brake | 5 million idle actuations (without friction work!) |
| Product weight | 650 g |
| Electrical connection technology | Plug |
| Note on materials | RoHS-compliantContains paint-wetting impairment substances |
| Conforms to standard | IEC 60034 |
