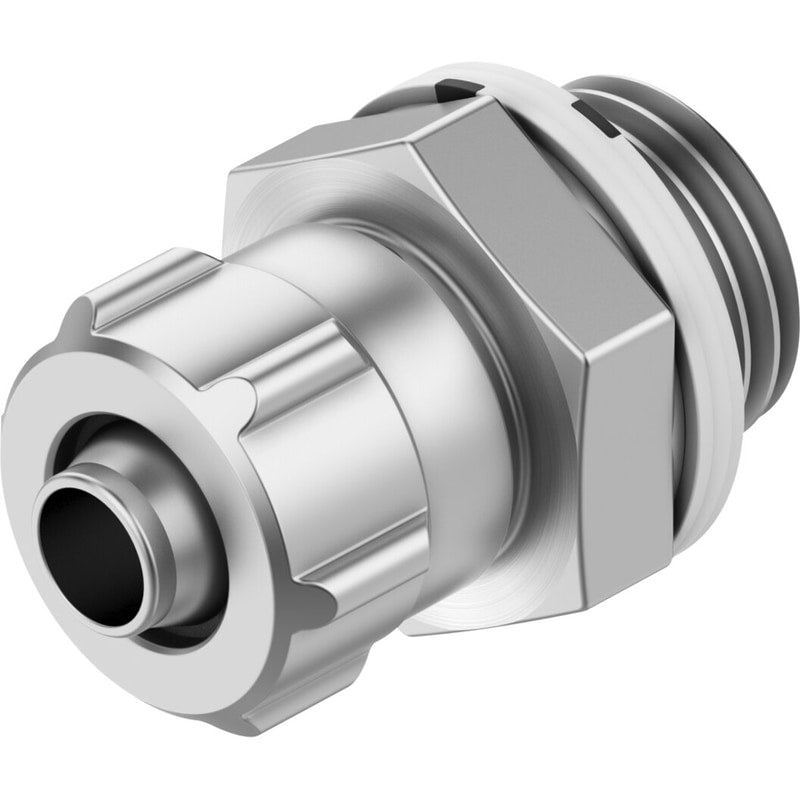

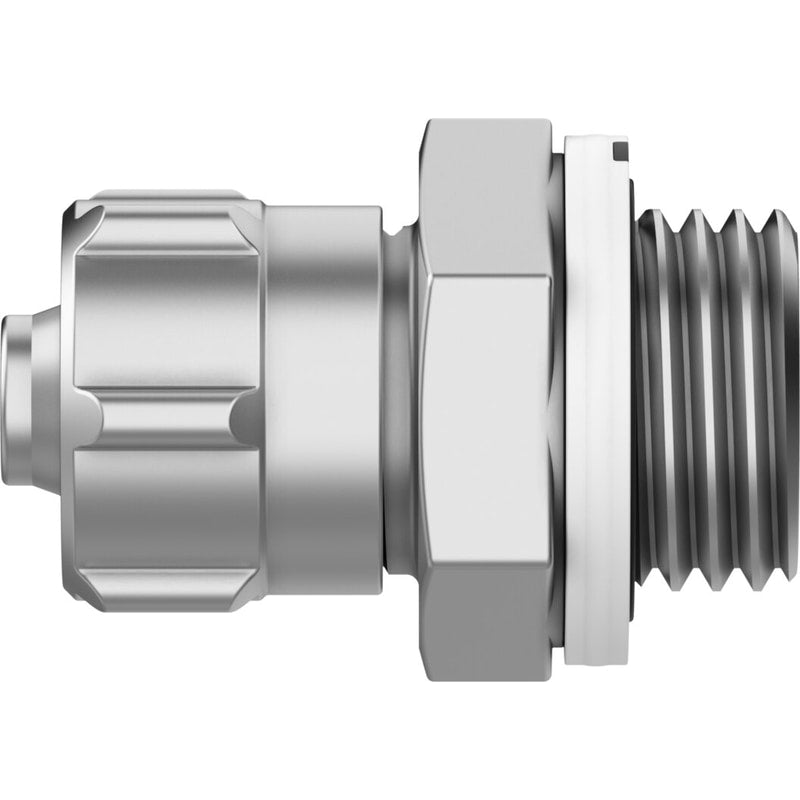

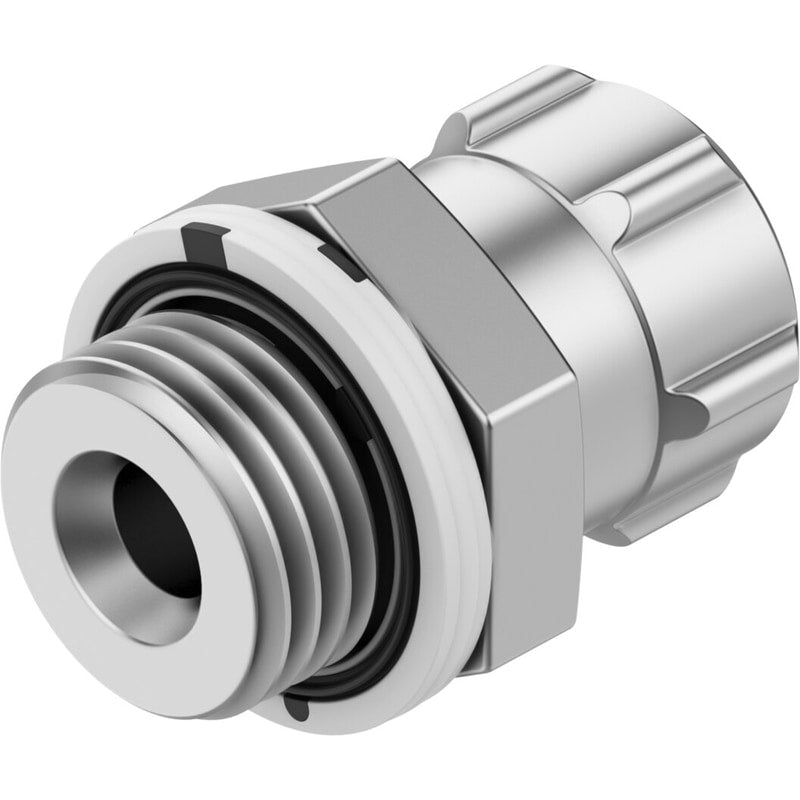

Quick connector
CK-3/8-PK-9
2033
GTIN 4052568008185
Vendor Festo
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- for barbed fitting, inside diameter 9 mm, with nut
- Ambient temperature
- -10 °C - 60 °C
Regular price
$8.62
Unit price
CK-3/8-PK-9 Quick connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CK-3/8-PK-9
Regular price
$8.62
Unit price
CK-3/8-PK-9 Quick connector is backordered and will ship as soon as it is back in stock.
quick connector CK-3/8-PK-9 Male thread with sealing ring, metal version. Nominal size=8 mm, Type of seal on screw-in stud=Sealing ring, Assembly position=Any, Operating medium=(* Compressed air in accordance with ISO8573-1:2010 [7:-:-], * Water as per manufacturer's declaration at www.festo.com), Note on operating and pilot medium=Lubricated operation possible
| Fitting Type | n/a |
|---|---|
| Nominal size | 8 mm |
| Type of seal on screw-in stud | Sealing ring |
| Assembly position | Any |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-]Water as per manufacturer's declaration at www.festo.com |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Maritime classification | see certificate |
| connection 1 | Male thread G3/8 |
| connection 2 | For tubing internal diameter 9 mm |
| Materials note | Conforms to RoHS |
| Material housing | Aluminium |
