Barb tubing fitting
C-1/4-P-6 Barbed hose fitting
2022
GTIN 4052568017873
Vendor Festo
- Pneumatic connection 1
- Internal thread G1/4
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm
- Nominal width
- 4.5 mm
Regular price
$13.23
Unit price
C-1/4-P-6 Barbed hose fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.

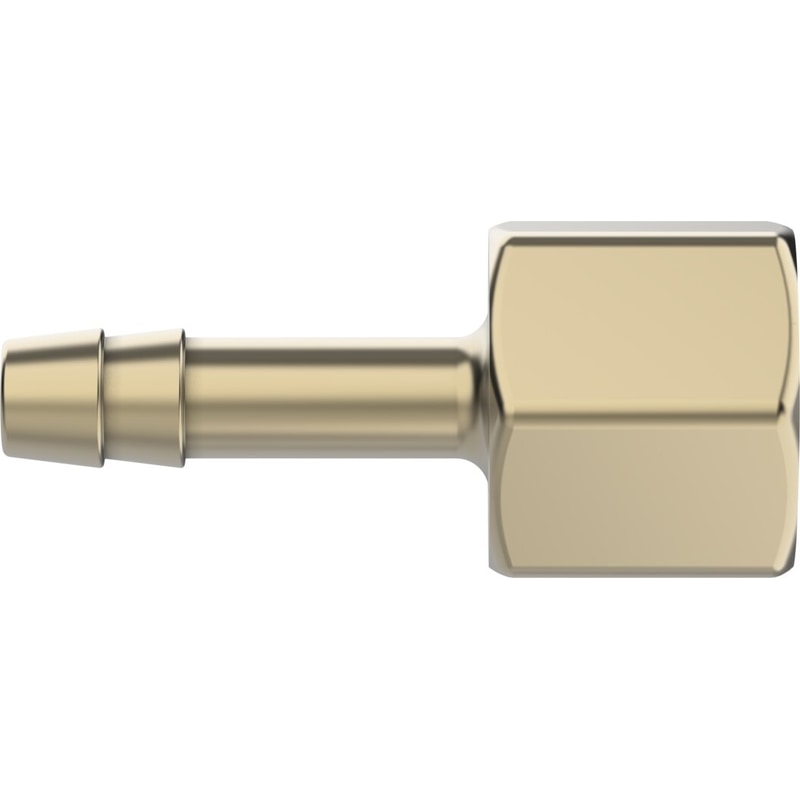

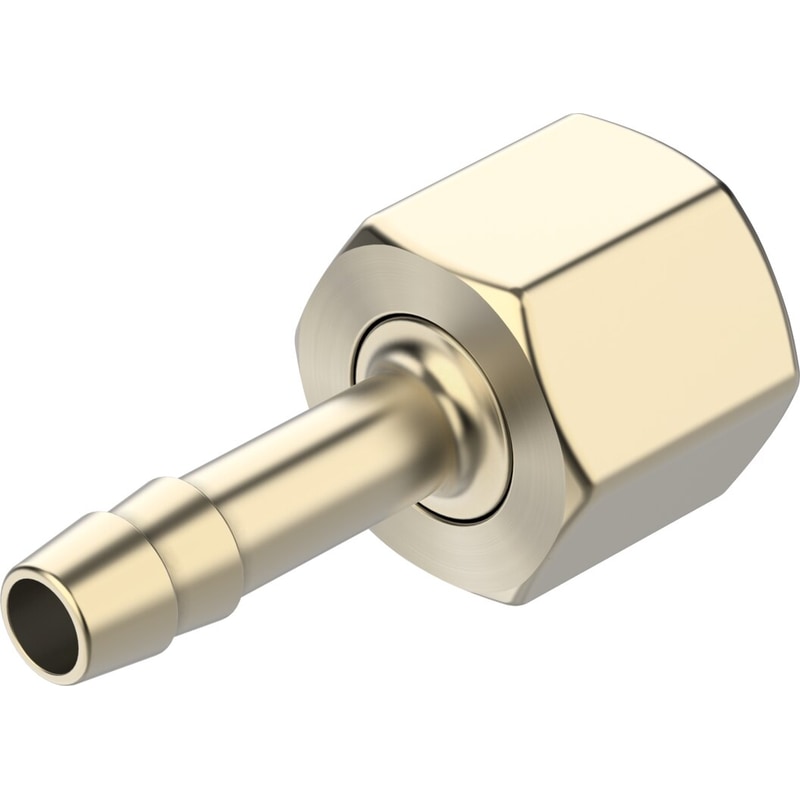

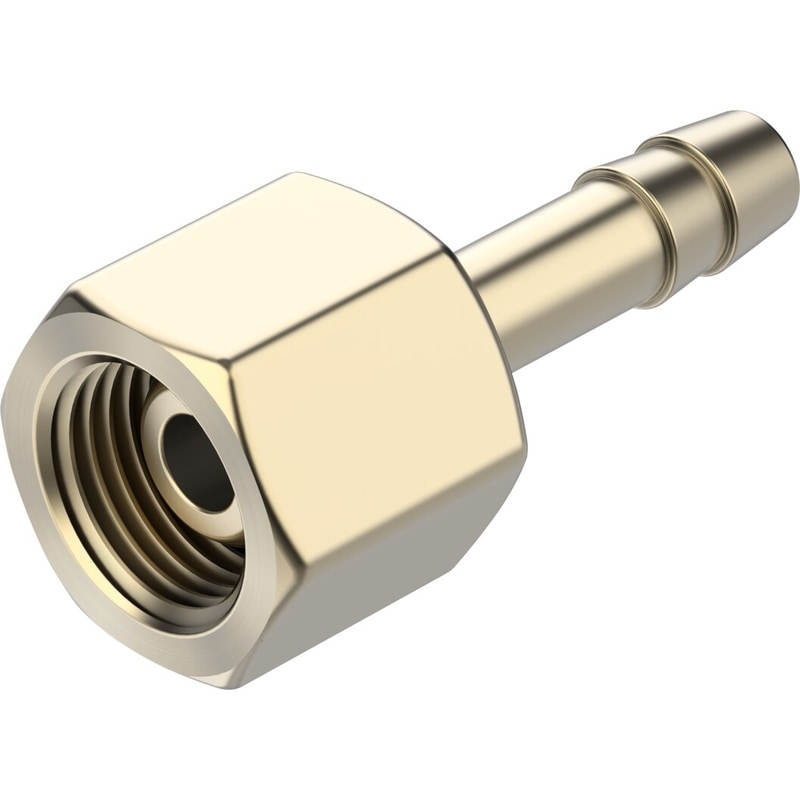

C-1/4-P-6 Barbed hose fitting
Regular price
$13.23
Unit price
C-1/4-P-6 Barbed hose fitting is backordered and will ship as soon as it is back in stock.
barbed hose fitting C-1/4-P-6 Nominal size=4,5 mm, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Pneumatic connection, port 1=Female thread 1/4, Pneumatic connection, port 2=For tubing outside diameter 8 mm
| Fitting Type | Barbed Straight |
|---|---|
| Nominal size | 4.5 mm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| connection 1 | Female thread 1/4 |
| connection 2 | For tubing outside diameter 8 mm |
