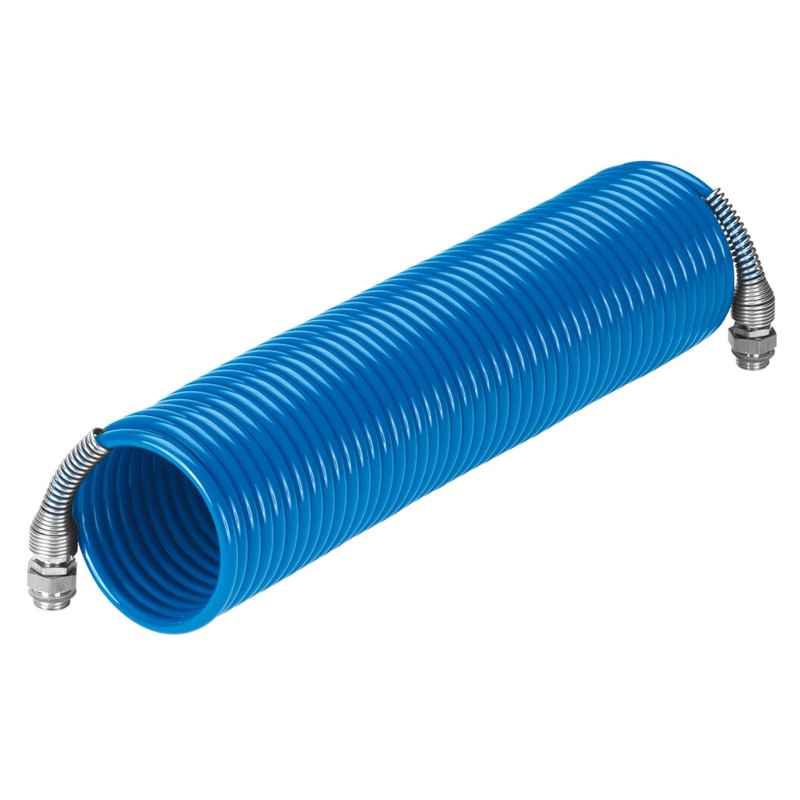

PPS-4-7,5-1/4-BL
19798
Vendor Festo
Regular price
$149.72
Unit price
PPS-4-7,5-1/4-BL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PPS-4-7,5-1/4-BL
Regular price
$149.72
Unit price
PPS-4-7,5-1/4-BL is backordered and will ship as soon as it is back in stock.
| Working length | 7.5 m |
|---|---|
| Outside diameter | 6.3 mm |
| Block length | 0.34 m |
| Inside diameter | 4.7 mm |
| Winding diameter | 75 mm |
| Number of windings | 44 |
| Type code | PPS |
| Temperature-dependent operating pressure | -0.95 bar ... 21.2 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Ambient temperature | -30 °C ... 80 °C |
| Nominal tightening torque | 11 Nm |
| Tolerance for nominal tightening torque | ± 20% |
| Product weight | 249 g |
| Pneumatic connection 1 | External thread G1/4 |
| Pneumatic connection 2 | External thread G1/4 |
| Color | Blue |
| Material of connecting thread | Brass |
| Note on materials | RoHS-compliant |
| Antikink device material | SteelGalvanized |
| Material of pneumatic tubing | PA12-P |
