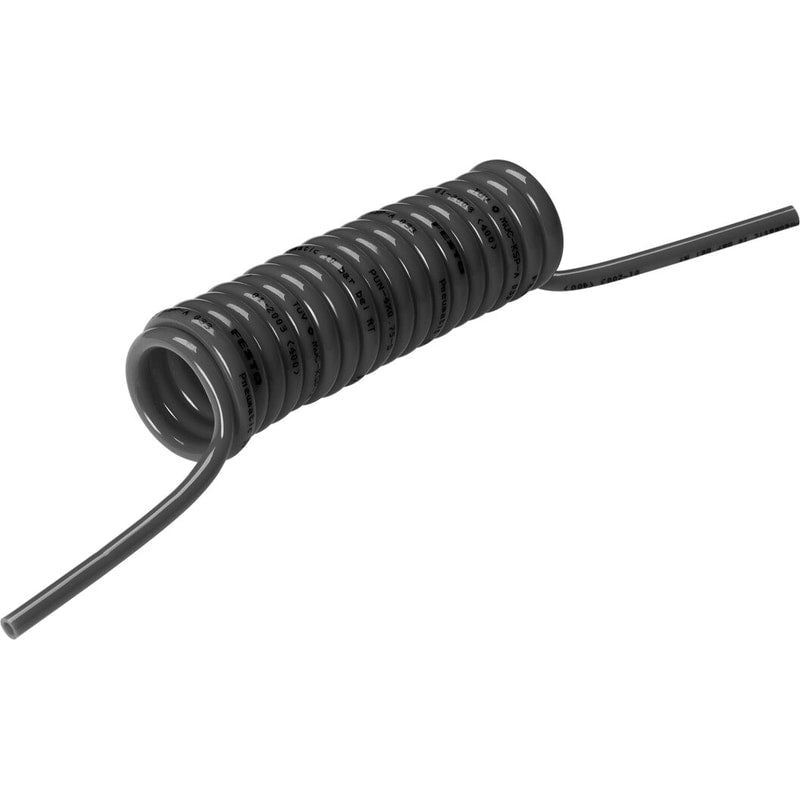

Spiral plastic tubing
PUN-12X2-S-6-SW
197616
GTIN 4052568160739
Vendor Festo
- Outside diameter
- 12 mm
- Inside diameter
- 8 mm
- Working length
- 6 m
- Temperature-dependent operating pressure
- -0.95 bar - 10 bar
- Ambient temperature
- -35 °C - 60 °C
Regular price
$192.73
Unit price
PUN-12X2-S-6-SW is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PUN-12X2-S-6-SW
Regular price
$192.73
Unit price
PUN-12X2-S-6-SW is backordered and will ship as soon as it is back in stock.
| Working length | 6 m |
|---|---|
| Outside diameter | 12 mm |
| Block length | 0.98 m |
| Inside diameter | 8 mm |
| Winding diameter | 95 mm |
| Number of windings | 64 |
| Type code | PUN-S |
| Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Ambient temperature | -35 °C ... 60 °C |
| Certification | German Technical Control Board (TÃœV) |
| Product weight | 1300 g |
| Pneumatic connection | For plug connection outside diameter 12 mm |
| Color | Black |
| Shore hardness | D 52 +/-3 |
| Note on materials | Free of copper and PTFE |
| Material of pneumatic tubing | TPE-U(PU) |
