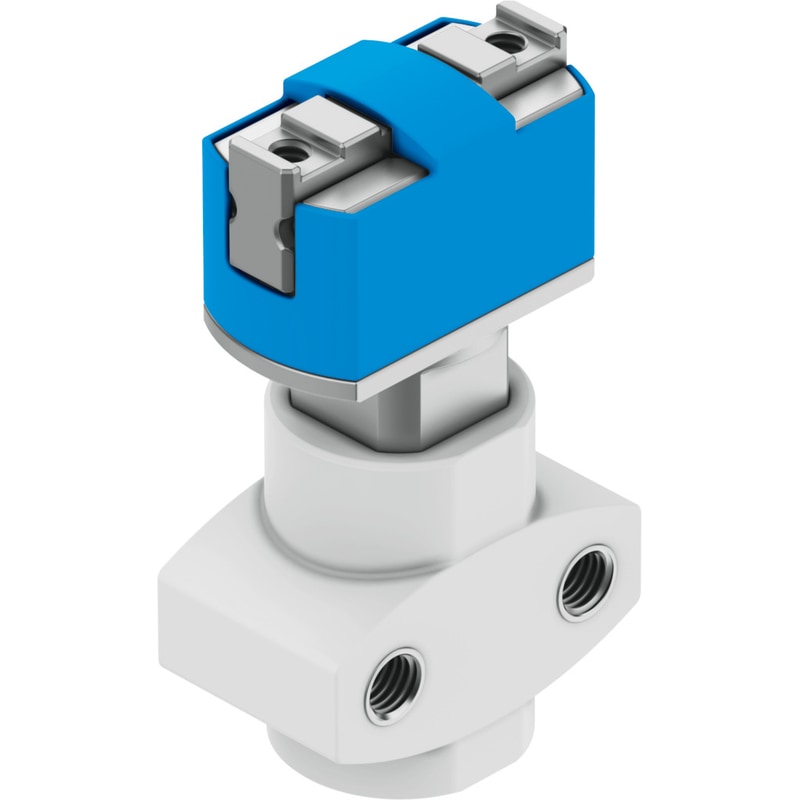

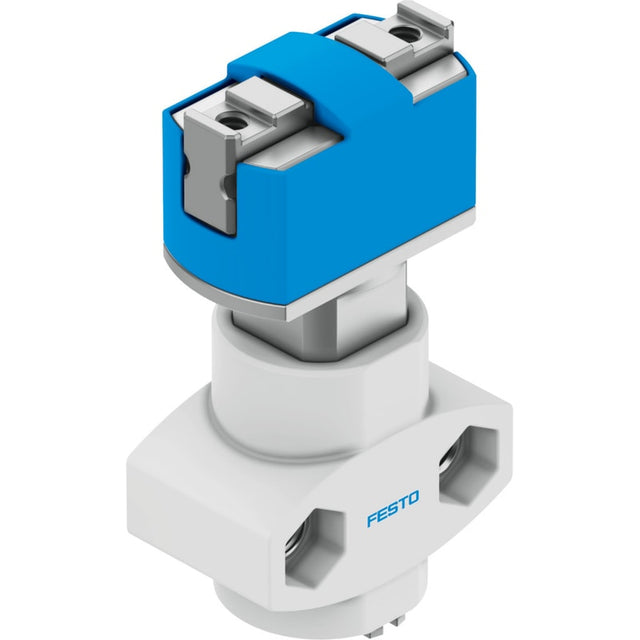

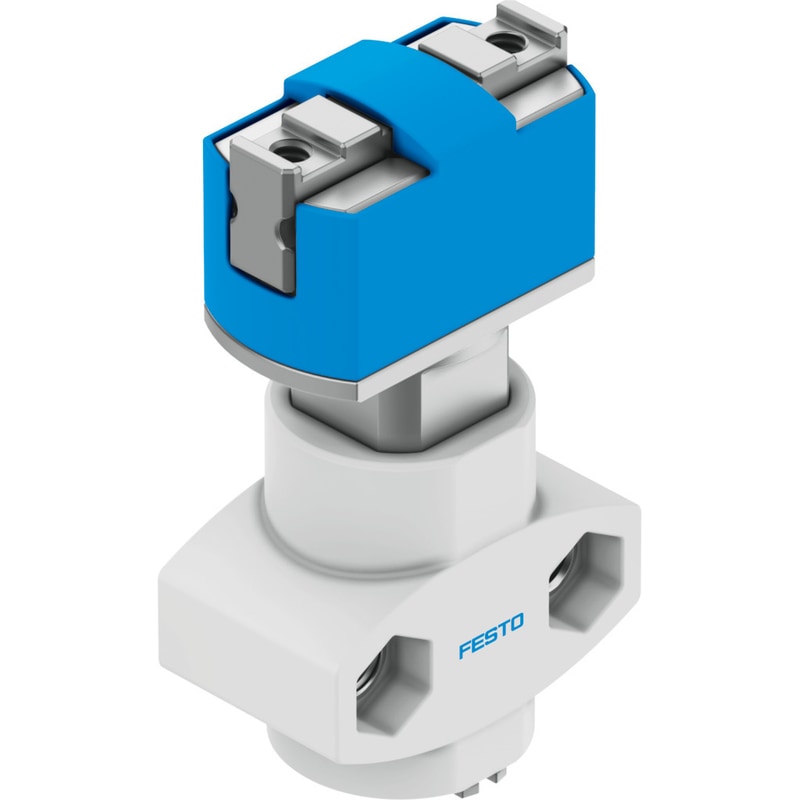

Parallel gripper
HGPM-08-EZ-G6
197562
GTIN 4052568160593
Vendor Festo
- Stroke per gripper jaw
- 2 mm
- Position sensing
- None
Regular price
$594.25
Unit price
HGPM-08-EZ-G6 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HGPM-08-EZ-G6
Regular price
$594.25
Unit price
HGPM-08-EZ-G6 is backordered and will ship as soon as it is back in stock.
| Size | 8 |
|---|---|
| Stroke per gripper jaw | 2 mm |
| Max. interchangeability | 0.2 mm |
| Max. gripper jaw angular play ax, ay | <0.5 deg |
| Max. gripper jaw backlash Sz | <0.03 mm |
| Pneumatic gripper repetition accuracy | ≤0.05 mm |
| Number of gripper jaws | 2 |
| Actuator system | Pneumatic |
| Mode of operation | Single-acting | Closed |
| Gripper function | Parallel |
| Gripping force backup | Without |
| Structural design | Inclined plane |
| Position sensing | None |
| Symbol | 00991898 |
| Operating pressure | 4 bar ... 8 bar |
| Max. operating frequency of pneumatic gripper | 4 Hz |
| Min. opening time at 6 bar | 1.9 ms |
| Min. closing time at 6 bar | 4.1 ms |
| Max. mass per external gripper finger | 5 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5 °C ... 60 °C |
| Stroke compensation spring force | 4 N ... 6 N |
| Gripping force per gripper jaw at 6 bar, closing | 16 N |
| Gripping force per gripper jaw at 6 bar, opening | 8 N |
| Mass moment of inertia | 0.00922 kgcm² |
| Maximum force on gripper jaw Fz, static | 10 N |
| Maximum torque on gripper jaw, Mx static | 0.1 Nm |
| Maximum torque on gripper jaw, My static | 0.1 Nm |
| Maximum torque on gripper jaw, Mz static | 0.1 Nm |
| Product weight | 19 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover cap material | POM |
| Housing material | Wrought aluminum alloy, anodized |
| Gripper jaw material | High-alloy steel |
