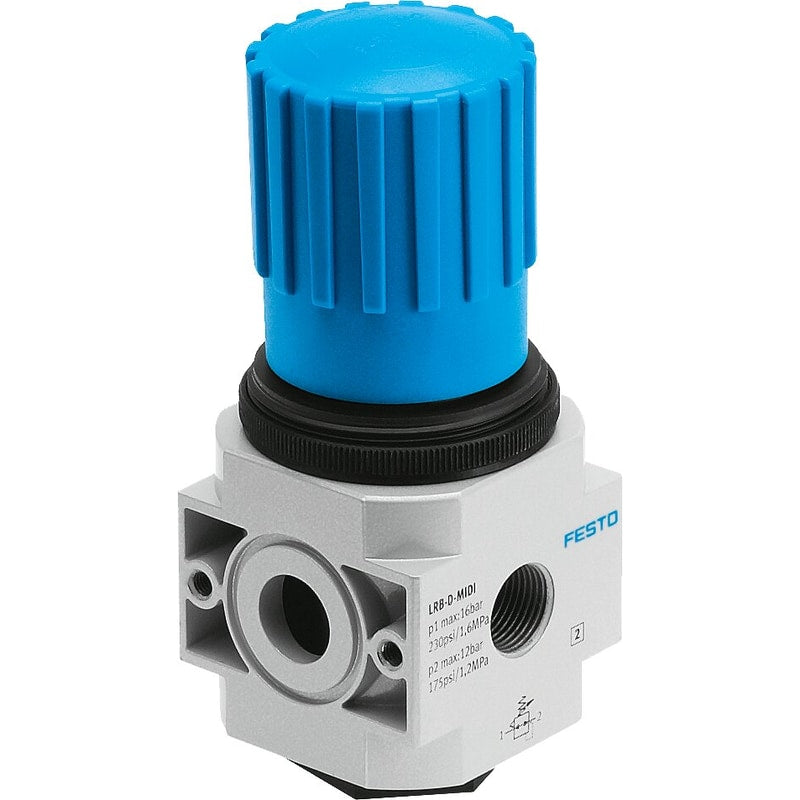

Pressure regulator
LRB-D-O-MIDI
197539
GTIN 4052568082437
Vendor Festo
- Pneumatic connection 1
- Sub-base
- Normal nominal flow rate (normalized to DIN 1343)
- 3200 l/min
- Pressure regulation range
- 0.5 bar - 12 bar
- Max. pressure hysteresis
- 0.2 bar
Regular price
$158.33
Unit price
Pressure regulator LRB-D-O-MIDI is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
LRB-D-O-MIDI
Regular price
$158.33
Unit price
Pressure regulator LRB-D-O-MIDI is backordered and will ship as soon as it is back in stock.
| Size | Midi |
|---|---|
| Type code | LRB |
| Series | D |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Design | Directly controlled diaphragm regulatorwith continuous compressed air supply |
| Controller function | Outlet pressure constantWith secondary exhaustingWith primary pressure compensation |
| Symbol | 991534 |
| Pressure gauge | G1/4 prepared |
| Operating pressure | 1 bar ... 16 bar |
| Pressure regulation range | 0.5 bar ... 12 bar |
| Max. pressure hysteresis | 0.2 bar |
| Standard nominal flow rate | 3200 l/min |
| Operating medium | Inert gasCompressed air as per ISO 8573-1:2010 [7:4:4] |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4]Inert gas |
| Temperature of medium | -10 °C ... 60 °C |
| Ambient temperature | -10 °C ... 60 °C |
| Product weight | 700 g |
| Type of mounting | With accessoriesLine installation |
| Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | G3/8 |
| Note on materials | Free of copper and PTFERoHS-compliant |
| Material of sub-base | Die-cast zinc |
| Seals material | NBR |
| Housing material | Die-cast zinc |
