Manifold
MHA1-PR10-3-PI-PCBM
197256
GTIN 4052568160494
Vendor Festo
Regular price
$189.36
Unit price
MHA1-PR10-3-PI-PCBM is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHA1-PR10-3-PI-PCBM
Regular price
$189.36
Unit price
MHA1-PR10-3-PI-PCBM is backordered and will ship as soon as it is back in stock.

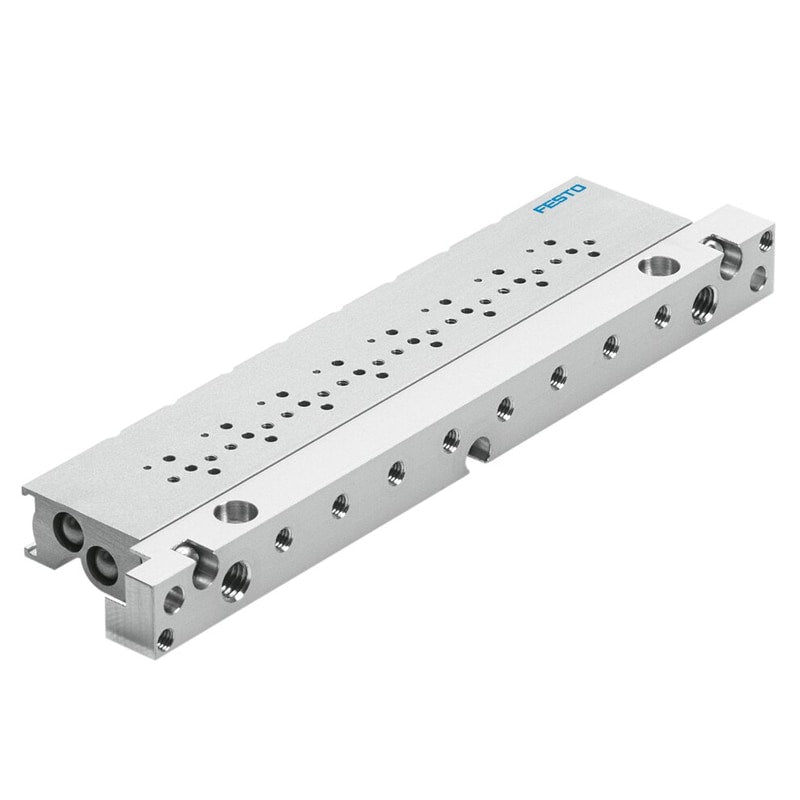

manifold block MHA1-PR10-3-PI-PCBM for mounting printed circuit boards of manifold block valves MHA1-...-PI, with pneumatic multi-pin plug. Max. number of valve positions=10, Operating pressure=0 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=2 - Moderate corrosion stress
| Max. number of valve positions | 10 |
|---|---|
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | 0 ... 40 °C |
| Mounting method for valve | with internal (female) thread |
| Pneumatic connection, port 1 | M5 |
| Pneumatic connection, port 2 | M3 |
| Pneumatic connection, port 3 | M5 |
| Material of connecting plate | Wrought Aluminium alloy |
