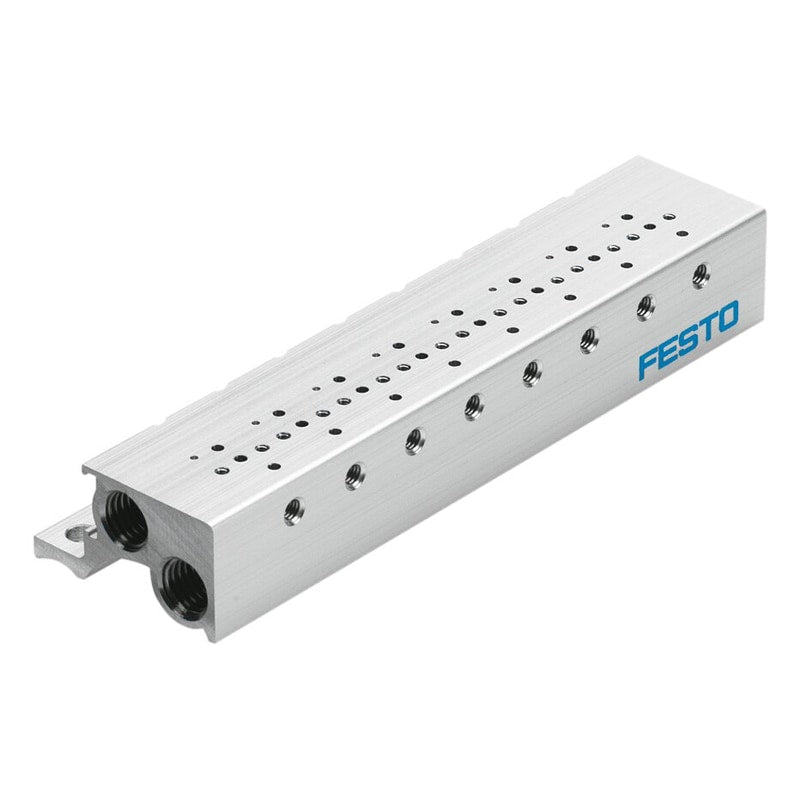

Manifold
MHA1-PR6-3-M3
197204
GTIN 4052568081973
Vendor Festo
Regular price
$104.81
Unit price
MHA1-PR6-3-M3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHA1-PR6-3-M3
Regular price
$104.81
Unit price
MHA1-PR6-3-M3 is backordered and will ship as soon as it is back in stock.
manifold block MHA1-PR6-3-M3 for manifold block valves MHA1-...-HC/TC Max. number of valve positions=6, Operating pressure=0 - 8 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation), Corrosion resistance classification CRC=1 - Low corrosion stress
| Max. number of valve positions | 6 |
|---|---|
| Operating pressure | 0 ... 8 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Mounting method for sub-base | with through hole |
| Mounting method for valve | with internal (female) thread |
| Pneumatic connection, port 1 | M7 |
| Pneumatic connection, port 2 | M3 |
| Pneumatic connection, port 3 | M7 |
| Material of connecting plate | Wrought Aluminium alloy |
