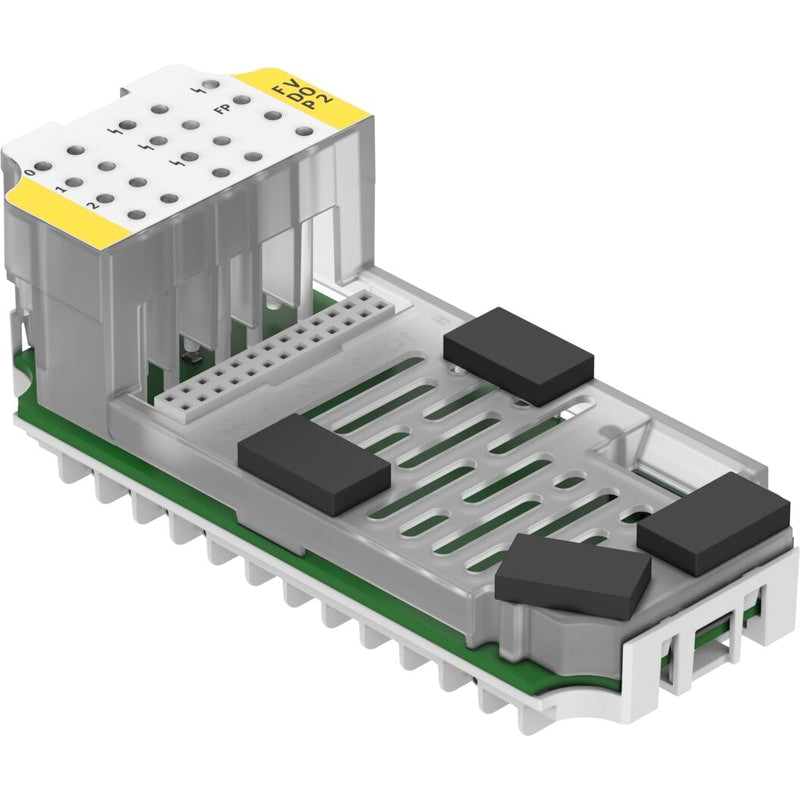

CPX-FVDA-P2
1971599
Vendor Festo
Regular price
$910.88
Unit price
CPX-FVDA-P2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CPX-FVDA-P2
Regular price
$910.88
Unit price
CPX-FVDA-P2 is backordered and will ship as soon as it is back in stock.
output module CPX-FVDA-P2 Dimensions W x L x H=(* (incl. interlinking block and connection technology), * 50 mm x 107 mm x 55 mm), No. of outputs=2, Diagnosis=(* - Wire break per channel, * - Short circuit/overload per channel, * - Cross circuit, * - Undervoltage of valves), Parameters configuring=(* - Diagnostic behaviour, * Monitoring of wire break/channel), Safety function=Safely switching off supply voltage for the valves
| Dimensions W x L x H | (incl. interlinking block and connection technology)50 mm x 107 mm x 55 mm |
|---|---|
| No. of outputs | 2 |
| Diagnosis | '- Wire break per channel- Short circuit/overload per channel- Cross circuit- Undervoltage of valves |
| Parameters configuring | '- Diagnostic behaviourMonitoring of wire break/channel |
| Safety function | Safely switching off supply voltage for the valves |
| Safety Integrity Level (SIL) | Safe switch-off/SIL 3 |
| Performance level (PL) | Category 3 safety component, performance level e |
| LED displays | '- 1 Failsafe protocol active- 1 Group diagnosis- 3 Channel diagnostics- 3 Channel status |
| Protection (short circuit) | Internal electronic fuse protection per channel |
| Intrinsic current consumption at operating voltage | Typically 25 mA (power supply for electronics)Typically 65 mA (load voltage supply for valve) |
| Load capacity against functional earth | 400 nF |
| Max. reaction time to switch-off command | F_WD_TIME + 23 ms |
| Max. power supply per channel | 1,5 A |
