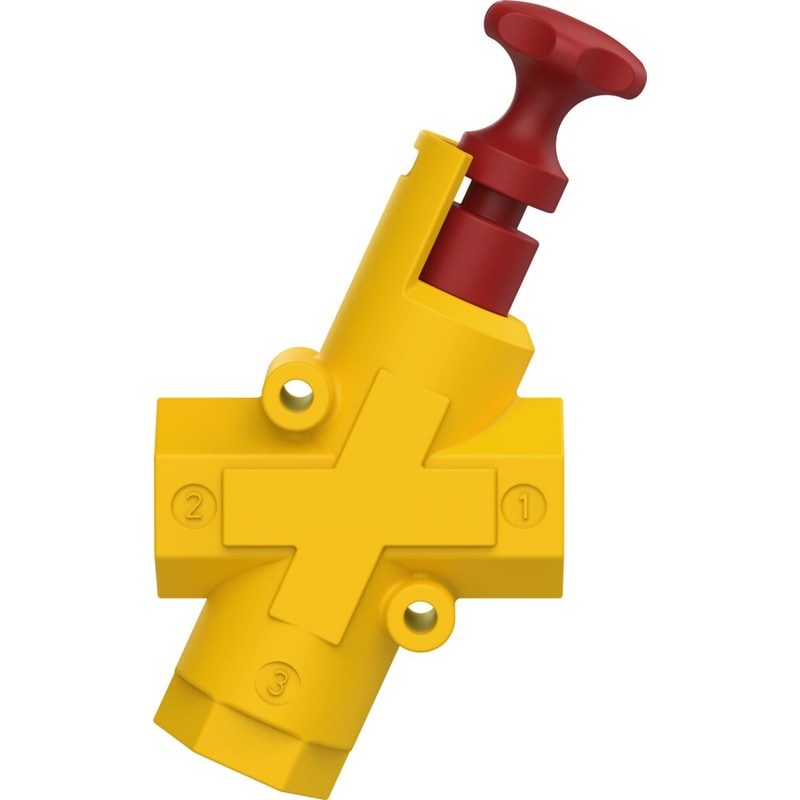

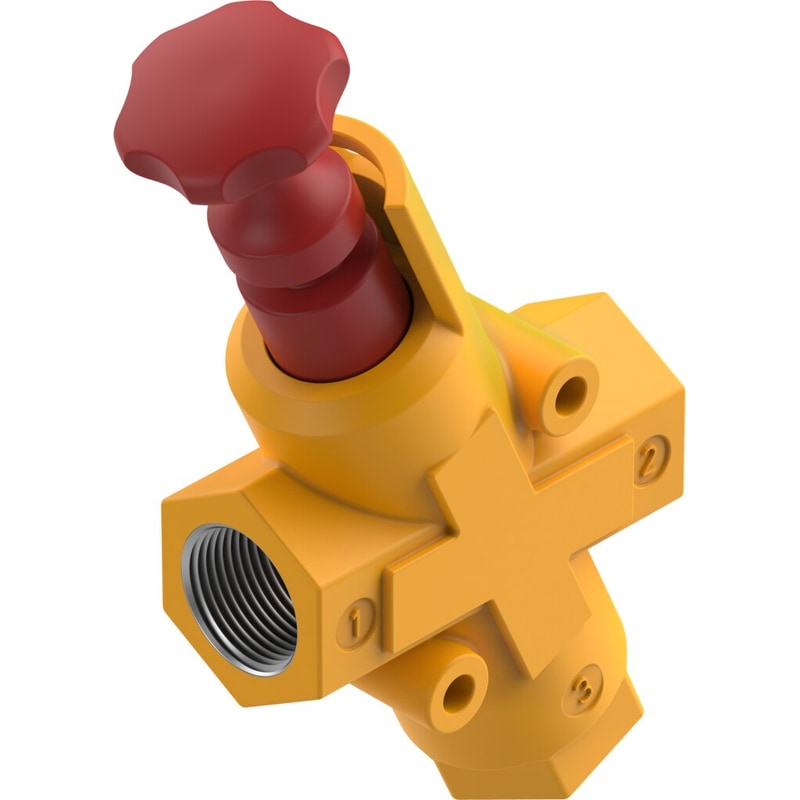

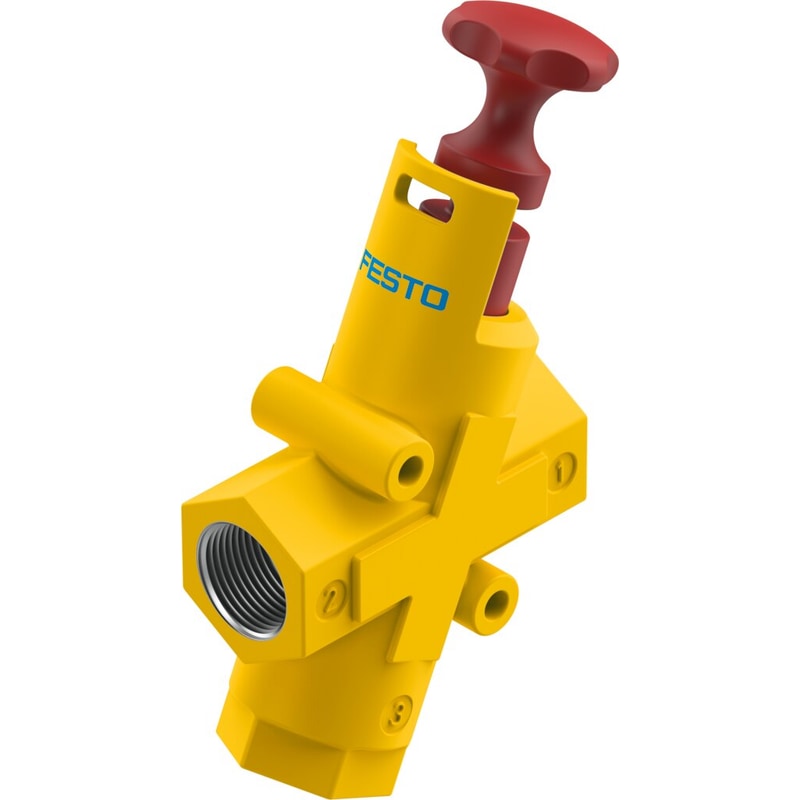

Shut-off valve
HE-G1-LO
197136
GTIN 4052568160234
Vendor Festo
- Pneumatic connection 1
- G1
- Normal nominal flow rate (normalized to DIN 1343)
- 10000 l/min
- Operating pressure
- 1 bar - 10 bar
- Actuation type
- Manual
Regular price
$287.13
Unit price
Shut-off valve HE-G1-LO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HE-G1-LO
Regular price
$287.13
Unit price
Shut-off valve HE-G1-LO is backordered and will ship as soon as it is back in stock.
shut-off valve HE-G1-LO Design structure=Piston slide, Type of actuation=manual, Sealing principle=soft, Exhaust-air function=not throttleable, Manual override=None
| Design structure | Piston slide |
|---|---|
| Type of actuation | manual |
| Sealing principle | soft |
| Exhaust-air function | not throttleable |
| Manual override | None |
| Valve function | 3/2 bistable |
| Operating pressure | 1 ... 10 bar |
| C value | 38.47 l/sbar |
| b value | 0.47 |
| Standard nominal flow rate | 10,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Medium temperature | '-10 ... 60 °C |
