1
of
4

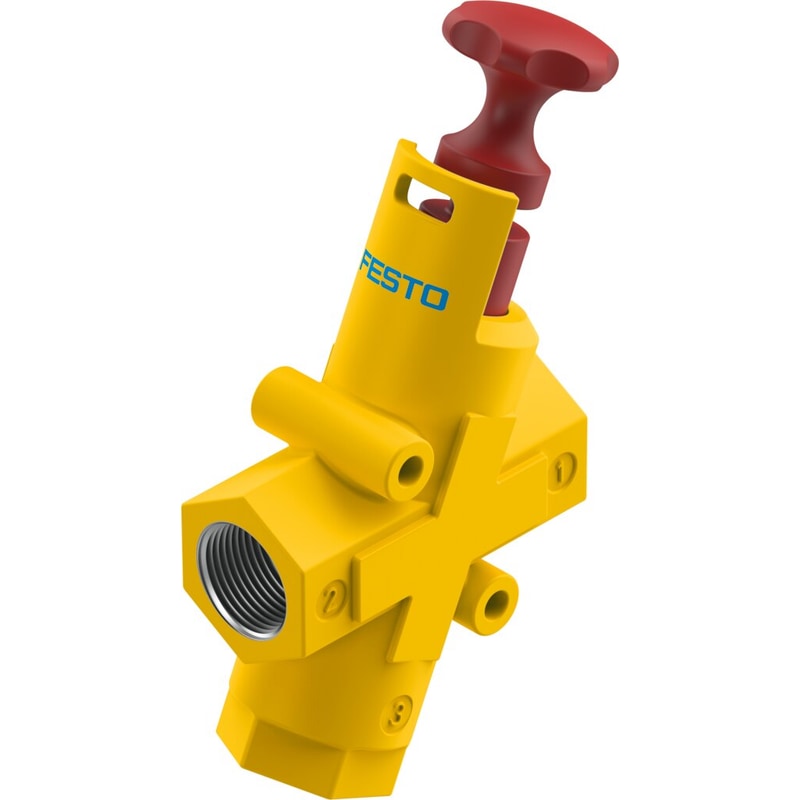

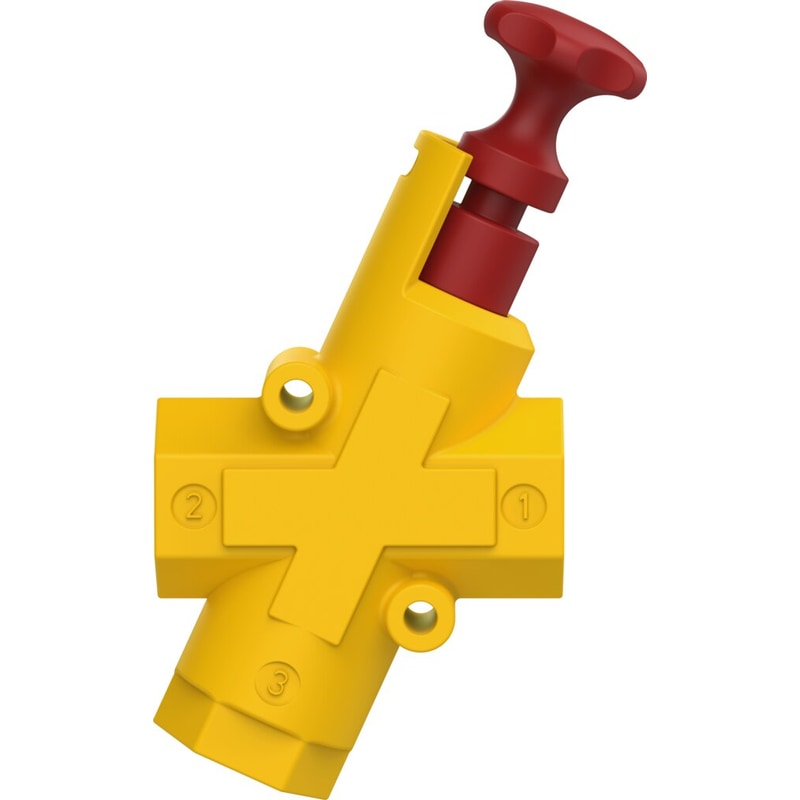

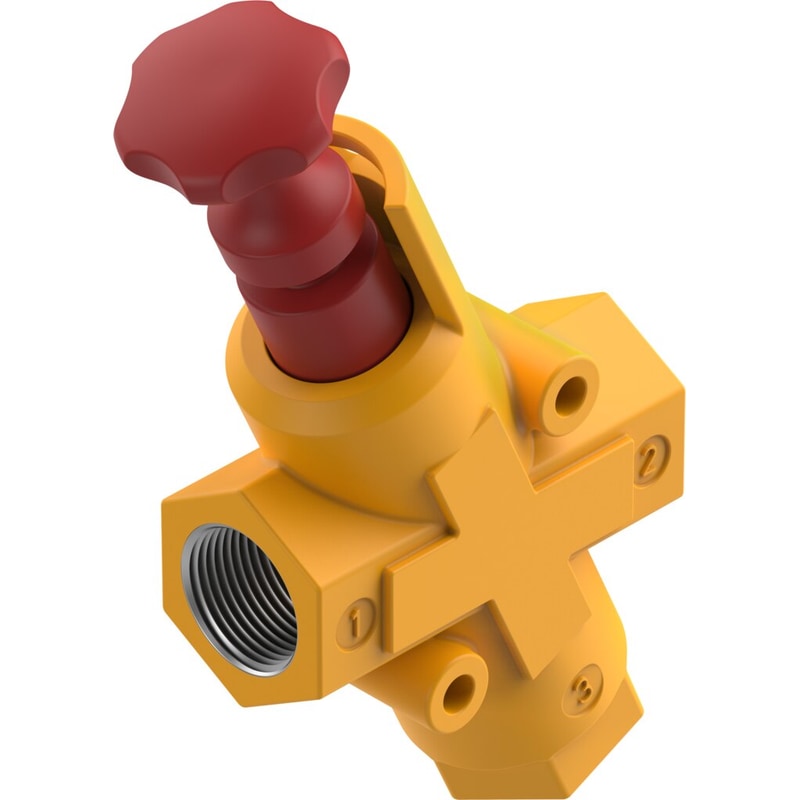

Shut-off valve
HE-N3/4-LO
197131
GTIN 4052568328320
Vendor Festo
- Pneumatic connection 1
- 3/4 NPT
- Normal nominal flow rate (normalized to DIN 1343)
- 8000 l/min
- Operating pressure
- 1 bar - 10 bar
Regular price
$276.41
Unit price
Shut-off valve HE-N3/4-LO is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HE-N3/4-LO
Regular price
$276.41
Unit price
Shut-off valve HE-N3/4-LO is backordered and will ship as soon as it is back in stock.
shut-off valve HE-N3/4-LO Sealing principle=soft, Exhaust-air function=not throttleable, Type of piloting=direct, Operating pressure=1 - 10 bar, C value=36,28 l/sbar
| Sealing principle | soft |
|---|---|
| Exhaust-air function | not throttleable |
| Type of piloting | direct |
| Operating pressure | 1 ... 10 bar |
| C value | 36.28 l/sbar |
| b value | 0.21 |
| Standard nominal flow rate | 8,000 l/min |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Corrosion resistance classification CRC | 3 - High corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Ambient temperature | '-10 ... 60 °C |
| Mounting type | Threaded |
| Assembly position | Any |
