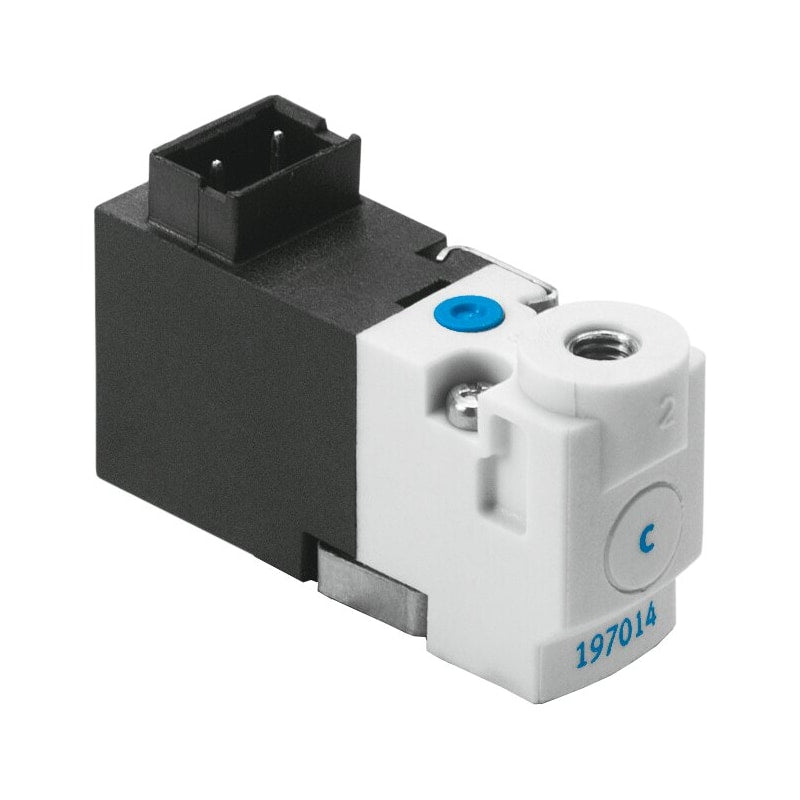

Air solenoid valve
MHP1-M1H-3/2G-M3-TC
197014
GTIN 4052568081409
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 10 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 0 bar - 8 bar
Regular price
$60.72
Unit price
MHP1-M1H-3/2G-M3-TC is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MHP1-M1H-3/2G-M3-TC
Regular price
$60.72
Unit price
MHP1-M1H-3/2G-M3-TC is backordered and will ship as soon as it is back in stock.
solenoid valve MHP1-M1H-3/2G-M3-TC Semi in-line valve for individual and manifold mounting, very compact, with plug connector on top Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=10 mm, Standard nominal flow rate=10 l/min, Operating pressure=0 - 8 bar
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | electrical |
| Width | 10 mm |
| Standard nominal flow rate | 10 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Poppet valve with spring return |
| Type of reset | mechanical spring |
| Protection class | IP40 |
| Authorisation | c CSA us - Recognized (OL)c UL us - Recognized (OL) |
| Nominal size | 0.65 mm |
| Grid dimension | 10 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
