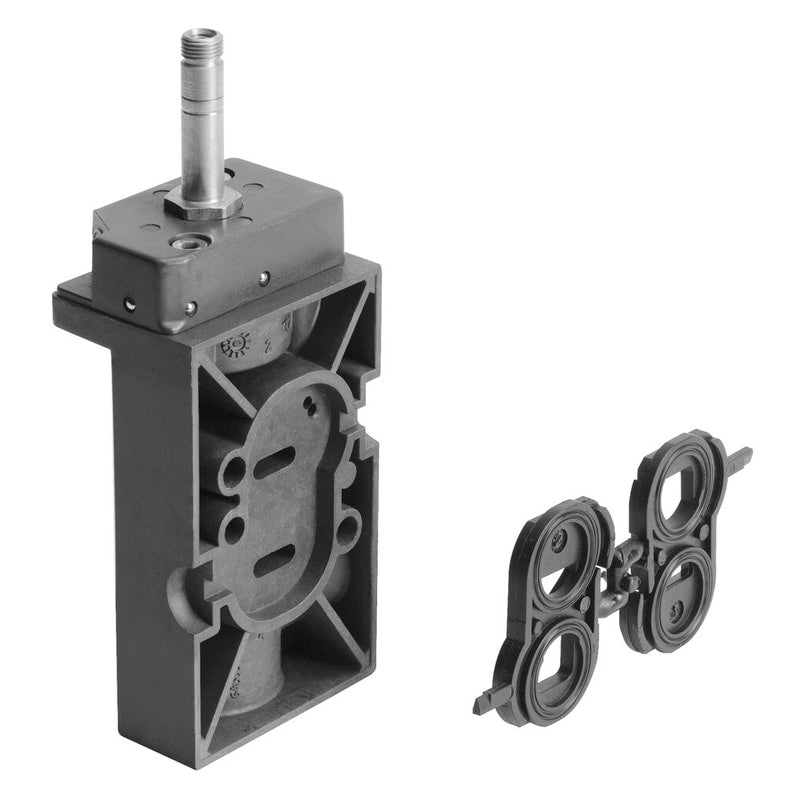

Air solenoid valve
NVF3-MOH-5/2-K-1/4
196982
GTIN 4052568328290
Vendor Festo
- Valve function
- 5/2 or 3/2, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic connection 1
- G1/4
- Actuation type
- Electrical
Regular price
$235.74
Unit price
NVF3-MOH-5/2-K-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NVF3-MOH-5/2-K-1/4
Regular price
$235.74
Unit price
NVF3-MOH-5/2-K-1/4 is backordered and will ship as soon as it is back in stock.

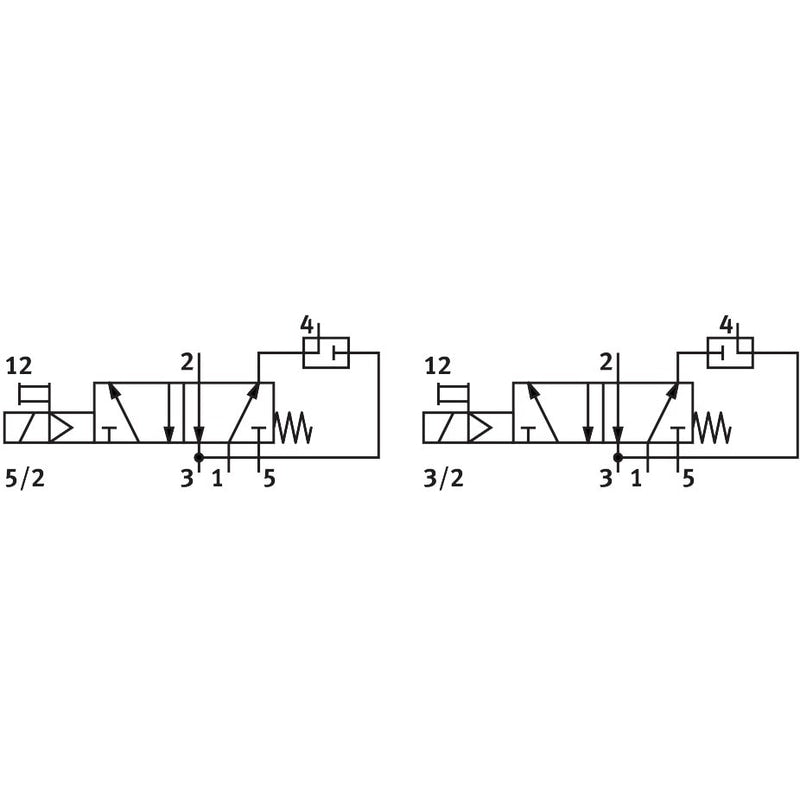

solenoid valve NVF3-MOH-5/2-K-1/4 With NAMUR port pattern per VDE/VDI 3845 Valve function=5/2-way or 3/2-way, single solenoid, Type of actuation=electrical, Width=53 mm, Standard nominal flow rate=900 l/min, Operating pressure=2 - 10 bar
| Valve function | 5/2-way or 3/2-way, single solenoid |
|---|---|
| Type of actuation | electrical |
| Width | 53 mm |
| Standard nominal flow rate | 900 l/min |
| Operating pressure | 2 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65to IEC 60529 |
| Nominal size | 7 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
