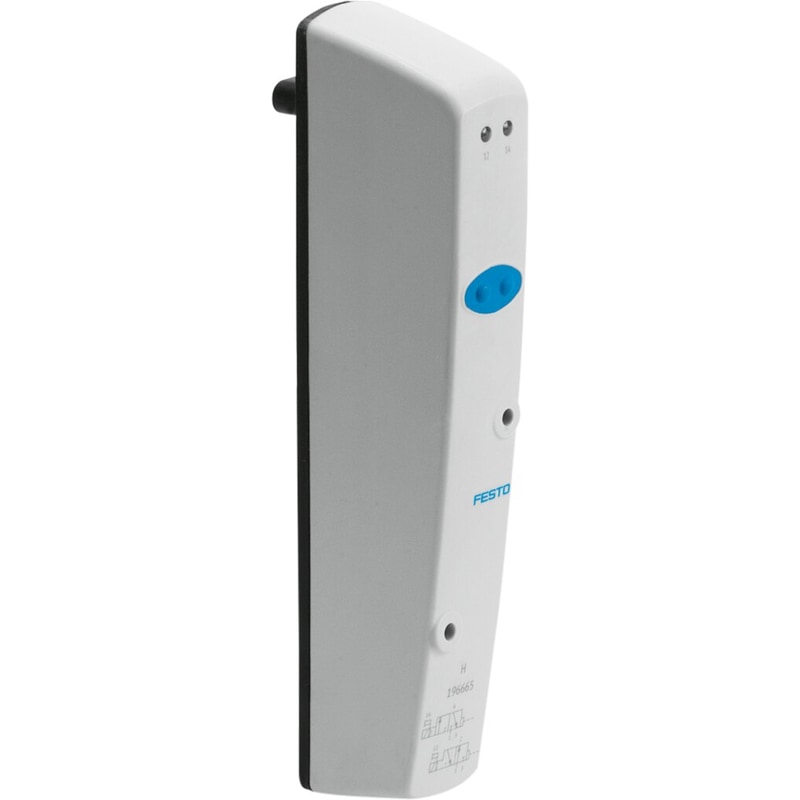

Air solenoid valve
CDVI5.0-MT2H-3OLS-3GLS
196665
GTIN 4052568159498
Vendor Festo
- Valve function
- 3/2, closed, monostable - 3/2, open, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 300 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- 3 bar - 10 bar
Regular price
$421.29
Unit price
CDVI5.0-MT2H-3OLS-3GLS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDVI5.0-MT2H-3OLS-3GLS
Regular price
$421.29
Unit price
CDVI5.0-MT2H-3OLS-3GLS is backordered and will ship as soon as it is back in stock.

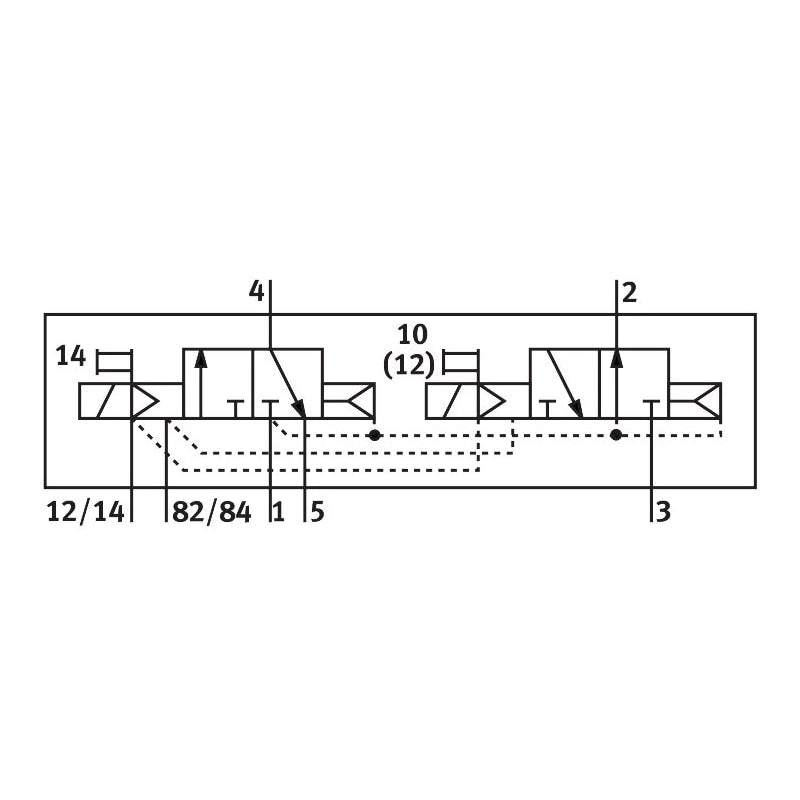

solenoid valve CDVI5.0-MT2H-3OLS-3GLS For valve terminal CDVI, Clean Design. Valve function=(* 3/2 closed, monostable, * 3/2 open, monostable), Type of actuation=electrical, Standard nominal flow rate=300 l/min, Operating pressure=3 - 10 bar, Design structure=Piston slide
| Valve function | 3/2 closed, monostable3/2 open, monostable |
|---|---|
| Type of actuation | electrical |
| Standard nominal flow rate | 300 l/min |
| Operating pressure | 3 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | Air spring |
| Nominal size | 5 mm |
| Sealing principle | soft |
| Manual override | Pushing |
| Type of piloting | Piloted |
| Pilot air supply | external |
| Flow direction | non reversible |
| Note on forced dynamisation | Switching frequency min. 1/month |
