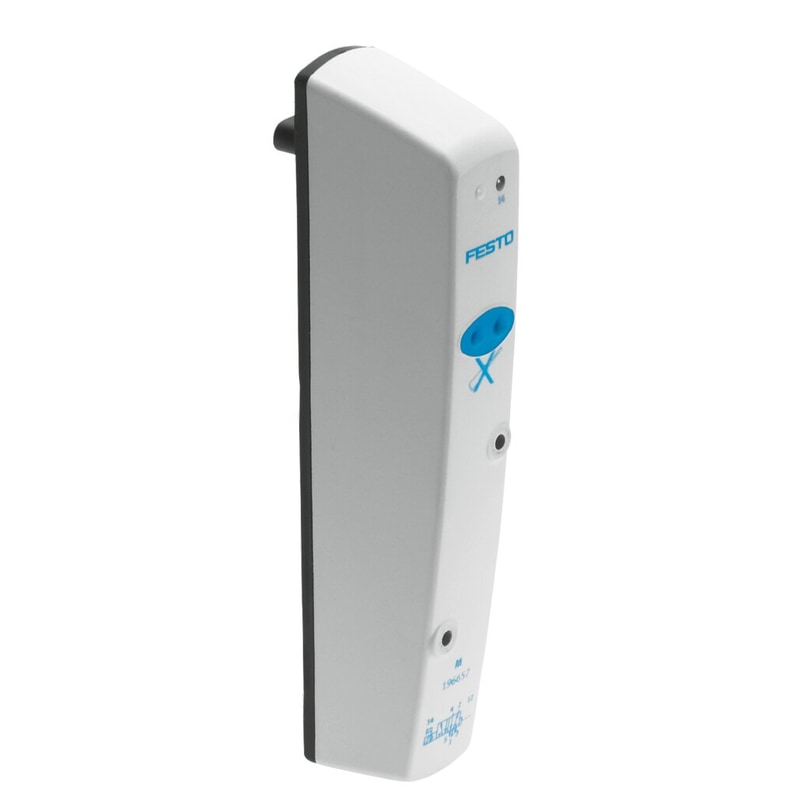

Air solenoid valve
CDVI5.0-MT2H-5/3BS
196655
GTIN 4052568159443
Vendor Festo
- Valve function
- 5/3, pressurized
- Normal nominal flow rate (normalized to DIN 1343)
- 650 l/min
- Pneumatic connection 1
- Sub-base
- Operating pressure
- -0.9 bar - 10 bar
Regular price
$436.16
Unit price
CDVI5.0-MT2H-5/3BS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDVI5.0-MT2H-5/3BS
Regular price
$436.16
Unit price
CDVI5.0-MT2H-5/3BS is backordered and will ship as soon as it is back in stock.
solenoid valve CDVI5.0-MT2H-5/3BS For valve terminal CDVI, Clean Design. Valve function=5/3 pressurised, Type of actuation=electrical, Standard nominal flow rate=650 l/min, Operating pressure=-0,9 - 10 bar, Design structure=Piston slide

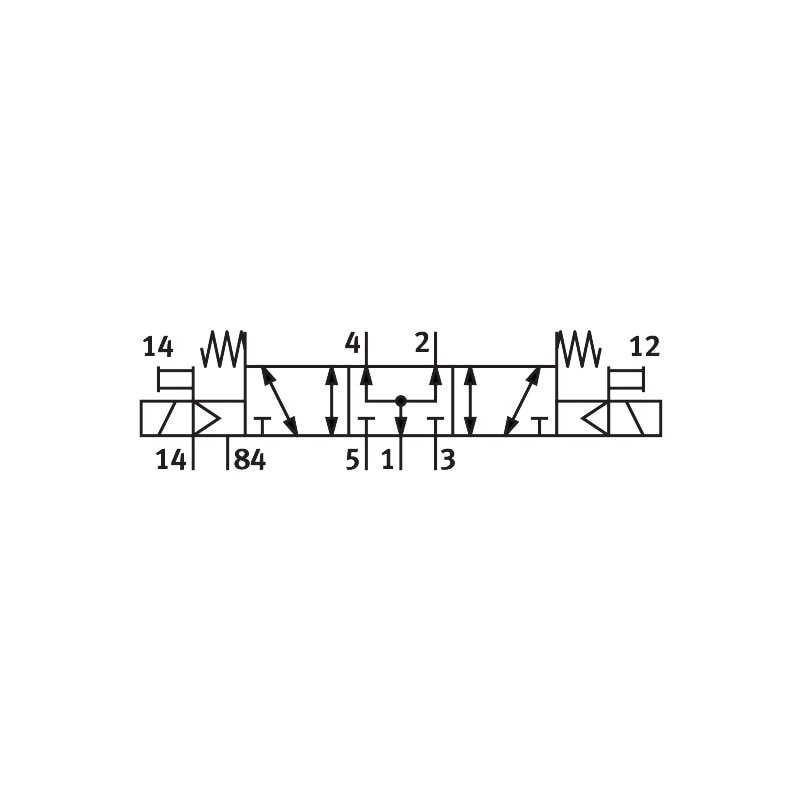

| Valve function | 5/3 pressurised |
|---|---|
| Type of actuation | electrical |
| Standard nominal flow rate | 650 l/min |
| Operating pressure | '-0.9 ... 10 bar |
| Design structure | Piston slide |
| Type of reset | mechanical spring |
| Nominal size | 5 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Manual override | Pushing |
| Type of piloting | Piloted |
| Pilot air supply | external |
| Flow direction | reversible |
