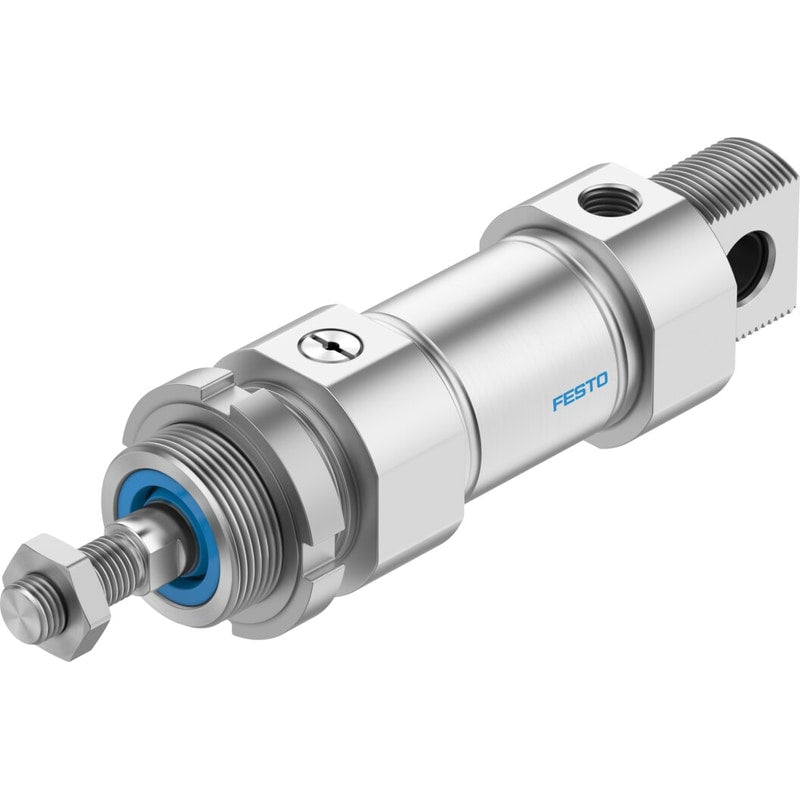

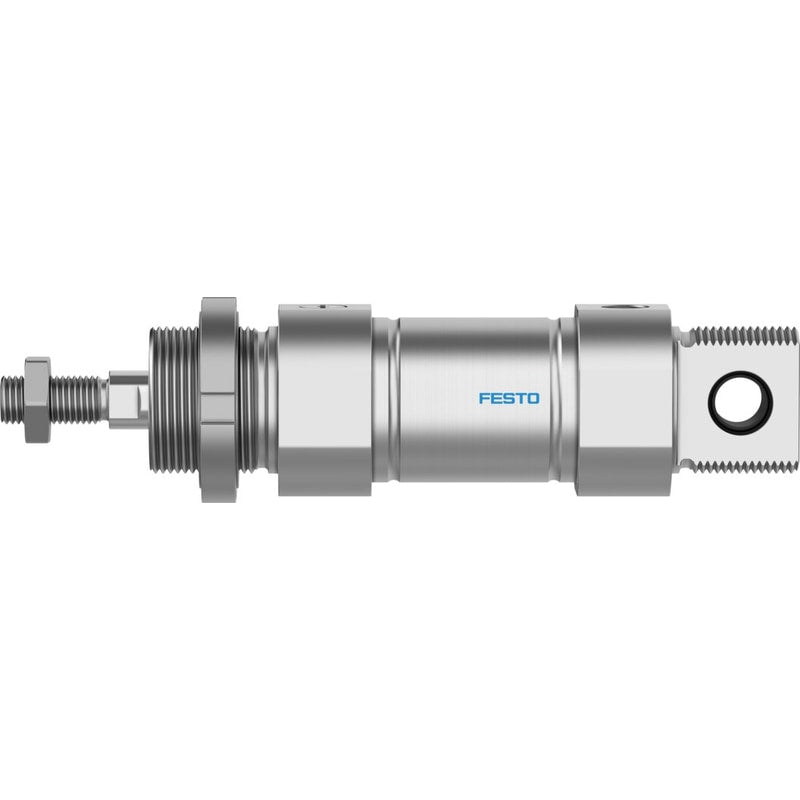

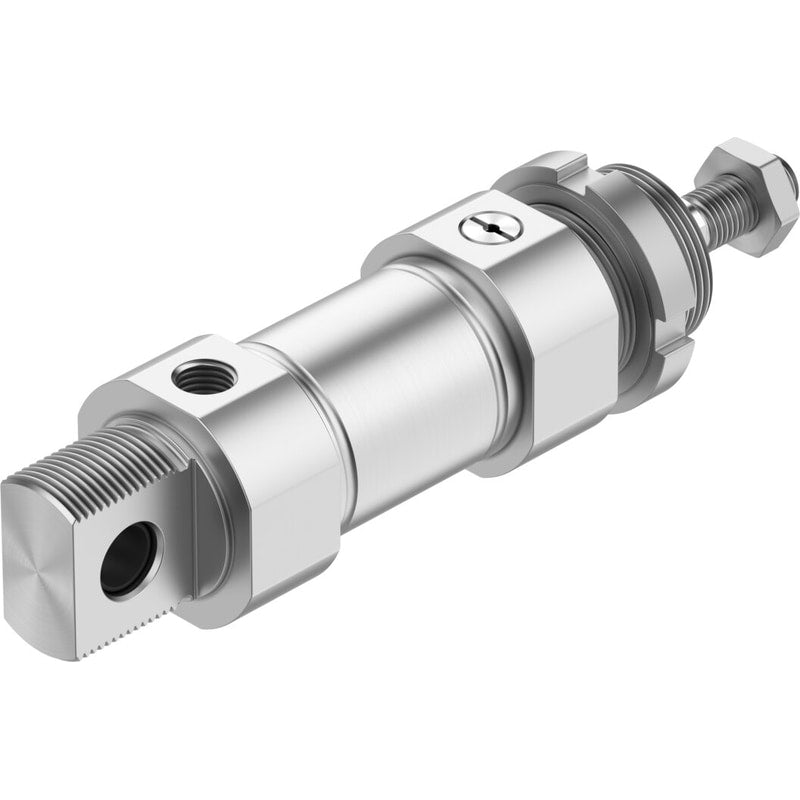

Round cylinder
ESNU-32-10-P-A
196376
GTIN 4052568159306
Vendor Festo
- Mode of operation
- Pushing - Single-acting
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 442.2 N
- Stroke
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$99.21
Unit price
ESNU-32-10-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ESNU-32-10-P-A
Regular price
$99.21
Unit price
ESNU-32-10-P-A is backordered and will ship as soon as it is back in stock.
round cylinder ESNU-32-10-P-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With elastic cushioning rings in the end positions. Stroke=10 mm, Piston diameter=32 mm, Piston rod thread=M10x1,25, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 10 mm |
|---|---|
| Piston diameter | 32 mm |
| Piston rod thread | M10x1,25 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1.2 ... 10 bar |
| Mode of operation | single-actingpushing action |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
