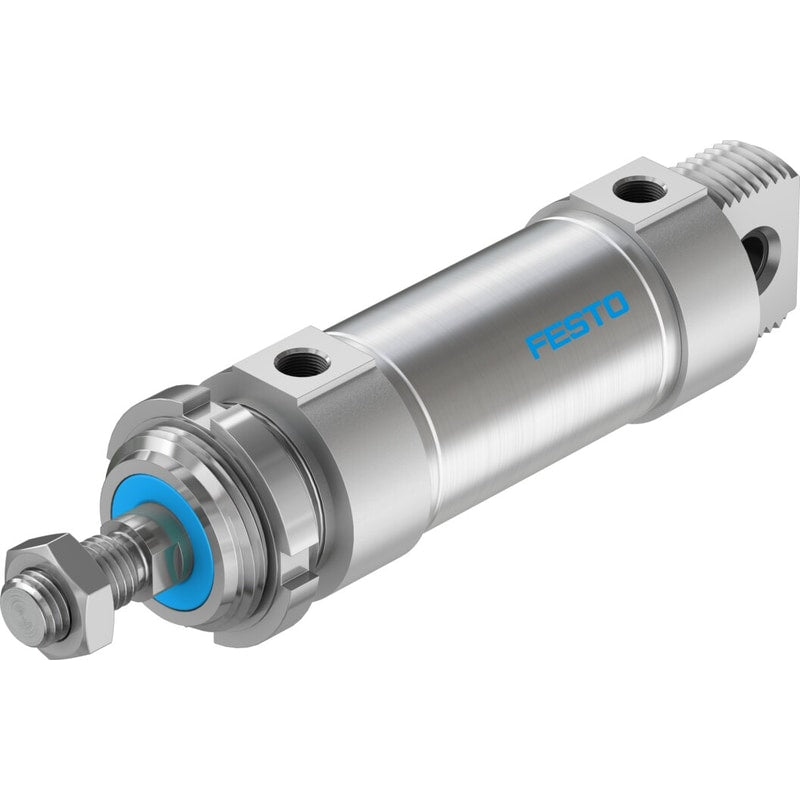

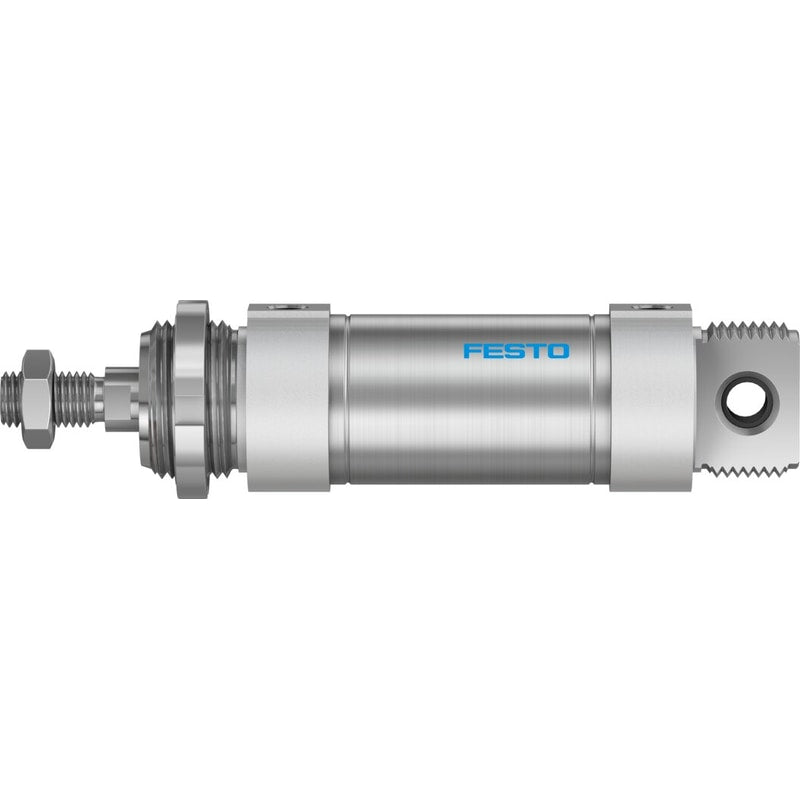

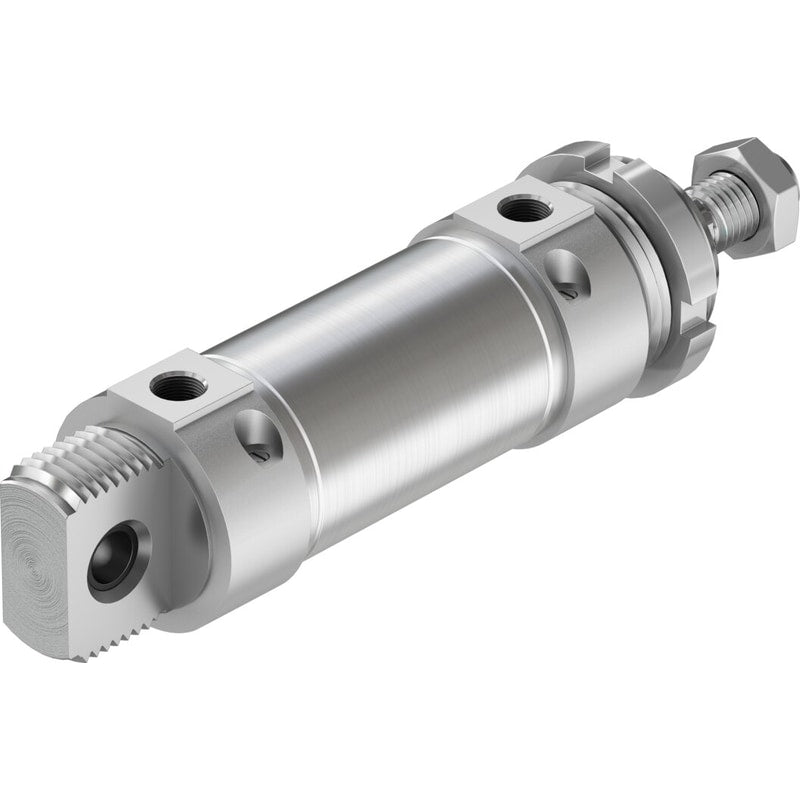

Round cylinder
DSNU-50-50-PPV-A
196042
GTIN 4052568158903
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 50 mm
- Theoretical force at 6 bar, advancing
- 1178.1 N
- Stroke
- 50 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends
Regular price
$143.63
Unit price
DSNU-50-50-PPV-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-50-50-PPV-A
Regular price
$143.63
Unit price
DSNU-50-50-PPV-A is backordered and will ship as soon as it is back in stock.
round cylinder DSNU-50-50-PPV-A For position sensing, with adjustable end-position cushioning. Various mounting options, with or without additional mounting components. Stroke=50 mm, Piston diameter=50 mm, Piston rod thread=M16x1,5, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
| Stroke | 50 mm |
|---|---|
| Piston diameter | 50 mm |
| Piston rod thread | M16x1,5 |
| Cushioning | PPV: Pneumatic cushioning adjustable at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
