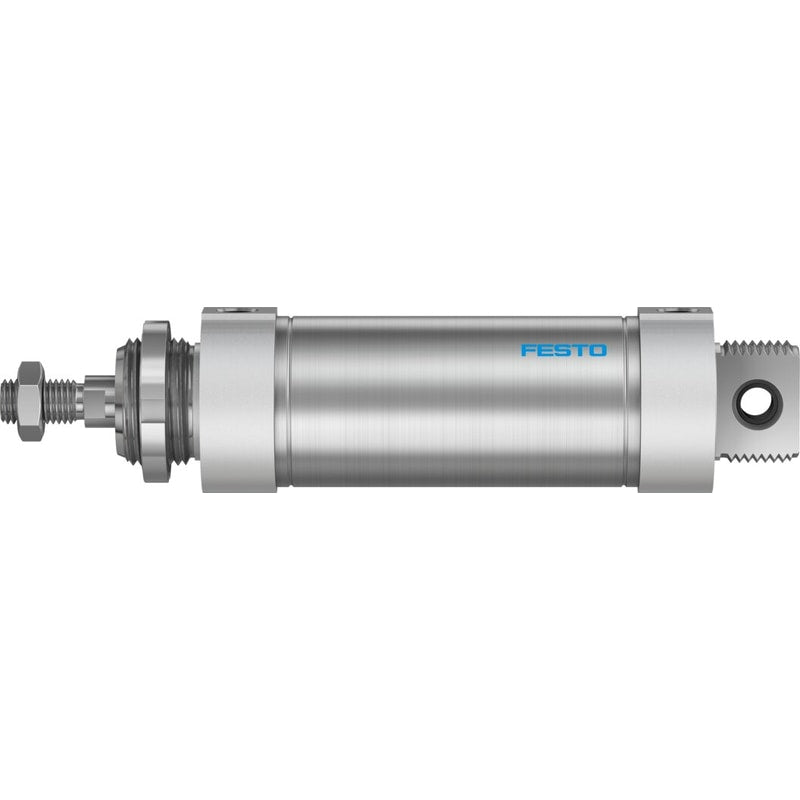

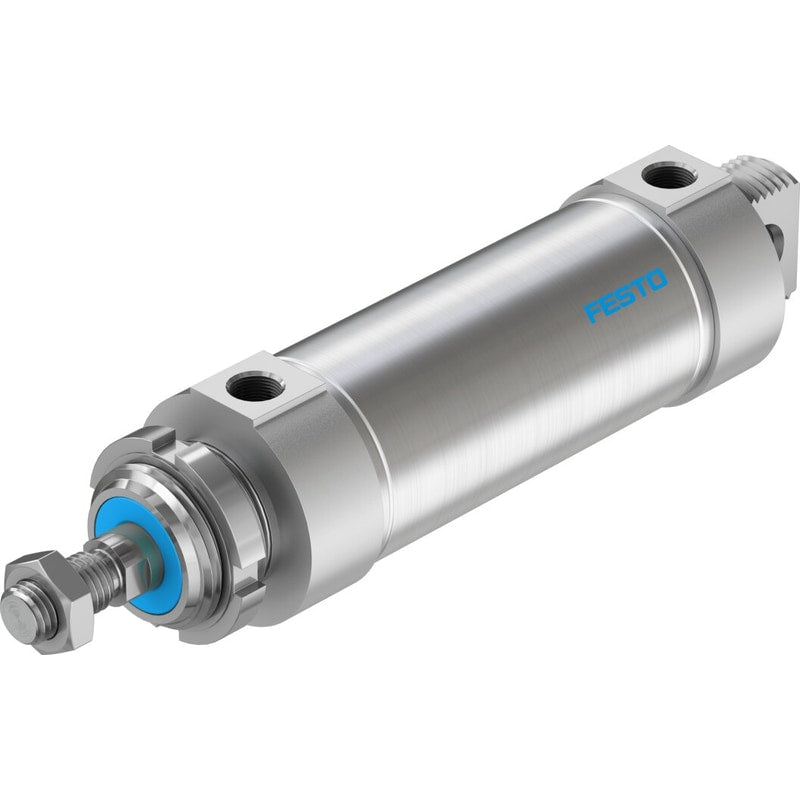

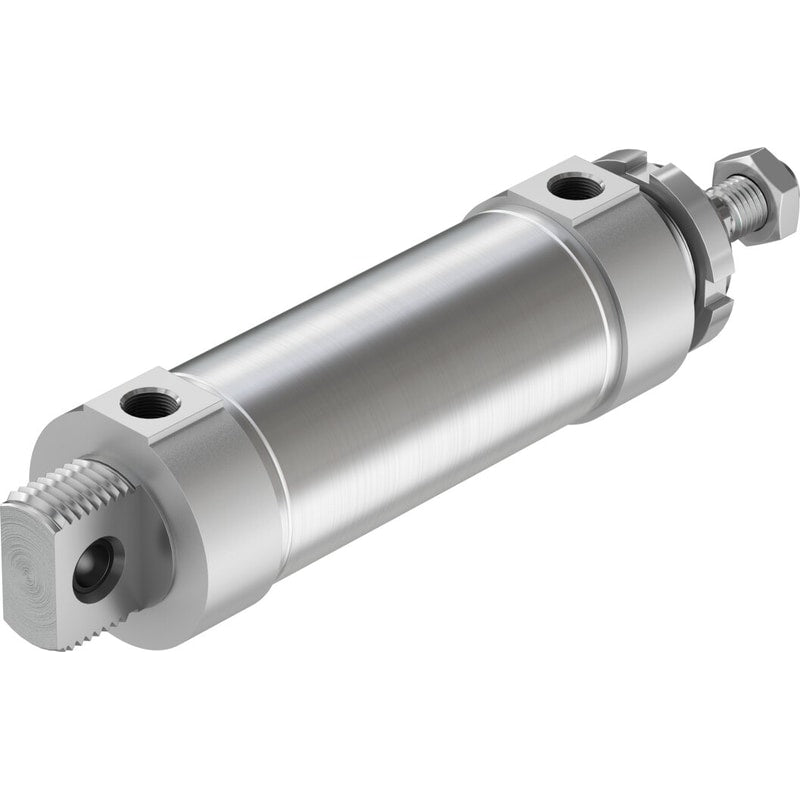

Round cylinder
DSNU-63-100-P-A
196014
GTIN 4052568158651
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 63 mm
- Theoretical force at 6 bar, advancing
- 1870.3 N
- Stroke
- 100 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
Regular price
$157.73
Unit price
DSNU-63-100-P-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSNU-63-100-P-A
Regular price
$157.73
Unit price
DSNU-63-100-P-A is backordered and will ship as soon as it is back in stock.
round cylinder DSNU-63-100-P-A For position sensing, with elastic cushioning rings in end positions. Various mounting options, with or without additional mounting components. Stroke=100 mm, Piston diameter=63 mm, Piston rod thread=M16x1,5, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
| Stroke | 100 mm |
|---|---|
| Piston diameter | 63 mm |
| Piston rod thread | M16x1,5 |
| Cushioning | P: Flexible cushioning rings/plates at both ends |
| Assembly position | Any |
| Design structure | PistonPiston rodCylinder barrel |
| Position detection | For proximity sensor |
| Operating pressure | 1 ... 10 bar |
| Mode of operation | double-acting |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 2 - Moderate corrosion stress |
| Ambient temperature | '-20 ... 80 °C |
